Brother DCP-9045CDN / MFC-9840CDW 2007 Service & Parts Manual Set (P/N SM-FAX076)

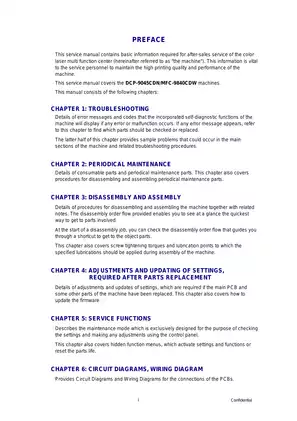

The service manual explains diagnosis, component replacement, and setup after repair. The parts list pairs assembly drawings with ordering codes and model, voltage, and destination differences.

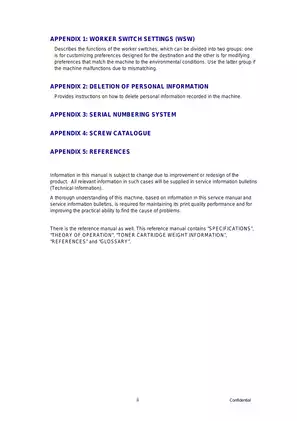

The separate Brother Reference Manual cited for specifications, theory of operation, toner-cartridge weights, references, and glossary material is not included.

PDF Search, Bookmarks, and Diagram Detail

Finding text and reading diagrams: Service text and parts tables support text search. Embedded bookmarks provide access to both publications, including service chapters and parts groups. Labels within several circuit diagrams and exploded views are not searchable; dense wiring sheets require zooming to read small component and connector labels.

One printable English PDF contains 511 pages total. This includes 22 cover and introductory pages across the two publications and 73 pages of service-manual appendices.

Print-System Diagnosis, Component Replacement, and Setup

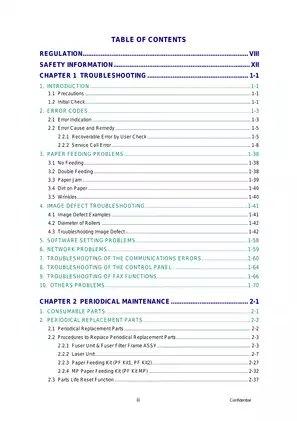

The following is a selected content overview, rather than a complete table of contents. Other topics include personal-information deletion and positioning the scanner for transportation.

• Fault isolation: LCD error codes, image defects, paper-feed faults, ADF/scanner problems, control-panel checks, network/USB checks, and MFC fax troubleshooting.

• Periodic replacement: Step-by-step procedures for the fuser, toner filter frame, laser unit, PF Kit 1/PF Kit 2, and MP feed kit, with life-counter resets.

• Mechanical and electrical access: ADF, document scanner, main and engine PCBs, charge and transfer HVPS boards, sensors, motors, fans, front-door assemblies, and imaging drives.

• Post-replacement setup: Firmware loading, EEPROM initialization, destination settings, serial-number entry, scanner adjustment, color calibration, and automatic registration.

• Maintenance Mode: ADF and paper-feed tests, LCD/button checks, sensor and fan tests, machine logs, stored errors, drum cleaning, and developing-bias correction.

• Diagrams and parts: PCB schematics, machine wiring sheets, harness-routing drawings, connector references, and exploded illustrations with region-specific replacement-part listings.

Brother’s service material addresses after-sales service personnel; it suits experienced printer technicians familiar with high-voltage circuits, laser equipment, firmware tools, and calibration.

Error Codes and Print-Quality Diagnosis

User-recoverable errors are separated from service-call faults. Cause-and-remedy tables address color-specific laser and toner-sensor failures, drum and belt drives, density and registration sensors, fuser thermistors, paper jams, CCD faults, and flatbed home-position problems. MFC-specific sections cover modem codes and fax transmission or reception faults.

Machine logs distinguish printing, copying, and scanning totals from replacement counters, jam histories, and stored machine or communication errors. Registration-mark sensor testing includes stationary-belt, running-belt, and belt-surface checks.

Teardown and Reassembly Planning

The disassembly-flow chart shows access routes and removal/reassembly times, helping a technician plan the work before opening the machine. Step-by-step instructions are supported by screw-torque tables, lubrication maps, gear overviews, and harness and connector drawings.

Coverage extends to the optional LT-100CL lower tray, including its feed mechanism, relay PCB, solenoid, and cassette switch.

ADF roller positions are identified by color or shade; incorrect placement can cause document jams or stretched images. Charge HVPS assembly notes warn that forcing the board against connected plugs or trapping the air-intake-fan harness can damage connectors or wiring.

Firmware and Scanner Configuration

Replacement requirements are organized separately for the main PCB, engine PCB, and flatbed scanner. The main-board work includes PCL/PS and main-program loading, EEPROM setup, serial-number programming, and functional checks; engine-board replacement adds engine firmware and color calibration.

The documented computer procedures use Windows XP/2000, the Brother Maintenance USB Printer Driver, Mainte.EXE/brmainte.exe, and FILEDG32.EXE. USB flash-memory update methods are also described. White-level acquisition and CCD scanner-area settings are covered alongside scan start/end adjustment.

Circuit Drawings and Replacement-Part Selection

Electrical references include Charge High-voltage Power Supply PCB schematics across four sheets and Transfer High-voltage Power Supply PCB schematics across two. Low-voltage Power Supply, NCU, and Filter PCB diagrams accompany the two-sheet machine wiring diagram.

The parts list has 18 assembly groups. It distinguishes DCP/MFC panels and main boards, MFC-only NCU and wireless-LAN hardware, regional NCU versions, and 115V/230V fuser and power-supply assemblies. These distinctions support matching a replacement to the machine’s configuration.

Laser Assembly Scope and Service Safety

Laser-unit replacement is documented; the laser enclosure must not be opened for internal repair.

Internal servicing involves high-voltage electrodes, a hot fuser, and invisible laser radiation. Disconnect AC power before internal cleaning or component replacement, allow the fuser to cool, and follow the manual’s laser precautions.

Examples of Print-Defect Repeat Pitches

The roller-diameter and repeat-pitch table associates recurring print defects with particular assemblies. It lists a 38.0 mm repeat pitch for the develop roller and 75.0 mm for the exposure drum.

Both the fuser heat roller and pressure roller are listed at 78.5 mm. These figures describe repeat distances on the printed image, rather than roller diameters, and help narrow down the source of recurring marks.
