Brother MFC-5440, MFC-5440CN multifunction printer parts guide

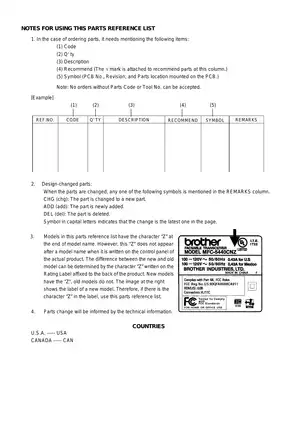

Brother MFC-5440, MFC-5440CN multifunction printer parts guide Preview image 1
Brother MFC-5440, MFC-5440CN multifunction printer parts guide Preview image 1

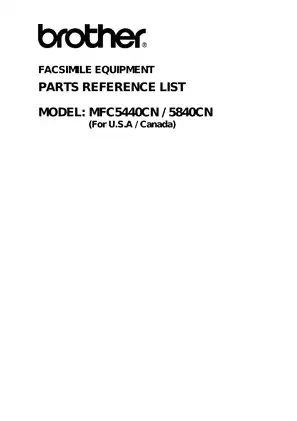

Brother MFC-5440, MFC-5440CN multifunction printer parts guide Preview image 2

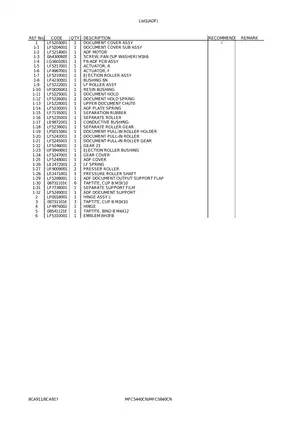

Brother MFC-5440, MFC-5440CN multifunction printer parts guide Preview image 3

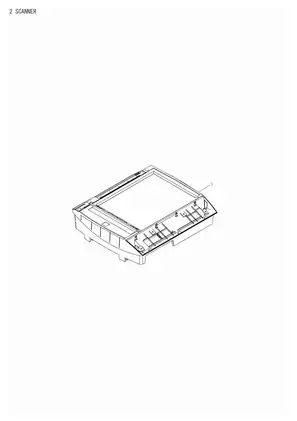

Brother MFC-5440, MFC-5440CN multifunction printer parts guide Preview image 4

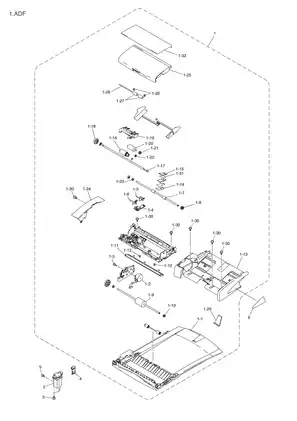

Brother MFC-5440, MFC-5440CN multifunction printer parts guide Preview image 5
$4.99 (incl. VAT) - Instant Download
OR

File Specifications

  • File Size: 14.54 MB
  • File Type: ZIP
  • Language: English
  • Pages: Number of pages:407 ,
  • Printable: Yes
  • Estimated Download Time: 0.3 Minutes
verified_user
Lifetime Guarantee
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal & Bitcoin

Models Covered in this Manual

  • MFC-5440
  • MFC-5440CN / Brother Industries

Product Information

Table of Contents

Introduction

  • Overview
  • How to Use This Guide
  • Safety Precautions

Document Cover Assembly

  • Components
  • Part Numbers
  • Exploded View Diagram

Scanner Unit

  • Components
  • Part Numbers
  • Exploded View Diagram

ADF (Automatic Document Feeder)

  • Components
  • Part Numbers
  • Exploded View Diagram

Control Panel

  • Components
  • Part Numbers
  • Exploded View Diagram

Print Head Assembly

  • Components
  • Part Numbers
  • Exploded View Diagram

Paper Feed Mechanism

  • Components
  • Part Numbers
  • Exploded View Diagram

Paper Tray

  • Components
  • Part Numbers
  • Exploded View Diagram

Carriage Unit

  • Components
  • Part Numbers
  • Exploded View Diagram

Ink System

  • Ink Cartridges
  • Ink Tubes
  • Part Numbers

Fuser Assembly

  • Components
  • Part Numbers
  • Exploded View Diagram

Power Supply Unit

  • Components
  • Part Numbers
  • Exploded View Diagram

Internal Components

  • Main Circuit Board
  • Connectors and Cables
  • Part Numbers

Miscellaneous Parts

  • Screws and Fasteners
  • Springs
  • Part Numbers

Index

  • Alphabetical Index
  • Quick Reference Guide
