2006 Brother MFC-8460N/8860DN/8870DW & DCP-8060/8065DN Service Manual (P/N SM-FAX049 (11))

This Brother service manual covers the MFC-8460N, MFC-8860DN, MFC-8870DW, DCP-8060, and DCP-8065DN laser multifunction machines. The January 2006 publication is identified as SM-FAX049 (11), with print code 8C5B03.

• ADF and scanner: Illustrated disassembly and reassembly of document-feed components, the scanner unit, and CCD module, with scanning adjustment procedures.

• Paper transport: Paper-tray, multipurpose-tray, and duplex-feed service, plus disassembly, reassembly, and lubrication of the optional LT-5300 lower tray.

• Fuser and laser: Unit removal and replacement, heater and thermistor troubleshooting, and diagnosis of polygon-motor synchronization and beam-detection errors.

• Control electronics: Main PCB, high-voltage and low-voltage power-supply boards, NCU, driver PCB, and model-specific wireless-board removal and installation.

• Fault diagnosis: Machine and communications error tables, print-quality examples, paper-feed checks, and troubleshooting for network, fax, and control-panel problems.

• Maintenance Mode: EEPROM initialization and customization, scanner compensation, sensor and panel checks, equipment logs, test patterns, and replacement-counter resets.

Written for service personnel, this manual assumes familiarity with internal laser-printer repair and the precautions required for electronic assemblies.

Mechanical Access and Assembly Replacement

The disassembly flowchart and harness-routing drawings show how components fit together and which assemblies must be accessed for a repair. Separate procedures address duplex-equipped mechanisms and the optional lower tray rather than treating every configuration as identical.

Laser servicing covers removal and replacement of the complete laser unit, including its polygon-motor and LD harness connections. The fuser procedures cover assembly replacement; related diagnostic tables identify halogen-heater, thermistor, and power-supply faults.

The fuser-handling warnings identify shock, vibration, and contact with rollers or electrodes as potential causes of unit damage. Drum-cleaning cautions also explain the risk of scratching the photosensitive surface with sharp objects.

Error Codes and Print-Quality Troubleshooting

The Error 76 and 78 entries distinguish heater overheating from failure to heat, with separate possible causes involving the thermistor, halogen lamp, heater harness, power-supply PCB, and main PCB. These distinctions help narrow a heating fault before a replacement board is selected.

Troubleshooting tables cover hollow print, ghosting, vertical streaks, poor fixing, and recurring spots. Ground-contact illustrations support electrical-contact checks, while the “Dust on Drum” guidance addresses the corona wire and electrodes.

Network sections address print-server discovery, unprinted jobs, protocol-specific problems, and TCP/IP browser access. The installation event-log appendix provides another reference for software setup faults.

EEPROM, Scanner Adjustments, and Firmware

Post-replacement procedures link main-PCB installation to firmware loading, EEPROM initialization and destination customization, serial-number restoration, and operational checks. Scanner replacement also calls for white-level acquisition and CCD scanner-area setting.

Maintenance Mode includes sensor checks under Function 32, white-level acquisition under Function 55, and fuser, laser, and paper-feed-kit counter resets under Function 88. The WSW reference identifies destination-dependent settings and unused selectors.

Firmware-installation and identification procedures describe the BHL2-Maintenance driver, FILEDG32.exe, and brmainte.EXE. The supplied PDF contains the instructions; firmware files and executable service utilities are separate requirements.

Received-fax transfer procedures apply to the MFC models when stored documents cannot be printed. These fax functions do not apply to the DCP models.

Wiring, Circuit Diagrams, and Gear Layouts

The appendices provide the main-PCB wiring diagram, NCU PCB circuit diagram, and separate Power Supply PCB 100V and Power Supply PCB 200V schematics. Gear-layout drawings distinguish the duplex and non-duplex model groups.

Working on these machines involves high-voltage circuitry and hot fuser parts. The manual’s safety precautions address AC-power and telephone-line isolation, cooling, and protection of static-sensitive PCBs.

A Preview of Fastener Torques and Defect Spacing

These examples are a small selection of the repair data in the manual. The tightening-torque table specifies 0.75 ±0.1 N·m for the main-PCB mounting screws.

For black spots that persist after several printed pages, the diagnostic table identifies 94.2 mm spacing with the drum-unit check and 79 mm spacing with the fuser heat-roller check. These are diagnostic clues, not automatic replacement criteria.

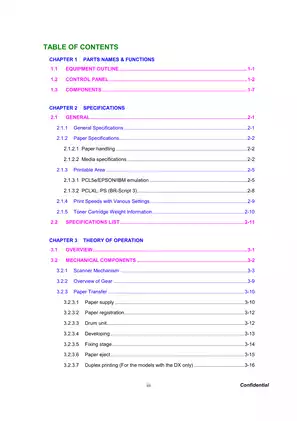

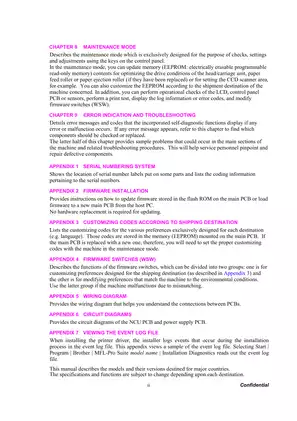

Searchable PDF, Bookmarks, and Diagram Detail

Text search and circuit detail: The PDF has searchable text and hierarchical bookmarks for chapters, procedures, and appendices. Small component references and pin labels in the circuit diagrams require zooming.

One printable, 490-page PDF contains this single service manual. The total includes 16 preliminary pages, all nine appendices, and the final publication page; these pages are already included in the stated count.
