Brother DCP-8080DN/8085DN, MFC-8480DN/8880DN/8890DW – 2009 Service Manual (P/N SM-FAX105)

January 2009 Brother factory service manual, P/N SM-FAX105, covering DCP-8080DN, DCP-8085DN, MFC-8480DN, MFC-8880DN, and MFC-8890DW.

Text Search, Bookmarks, and Electrical Drawing Detail

Search and diagram readability: Body text supports PDF search, and embedded bookmarks cover chapters, subsections, and appendices. Labels within some power-supply schematics are not text-searchable. Small electrical labels require zooming; the high-voltage schematic is visibly coarser than the other electrical drawings.

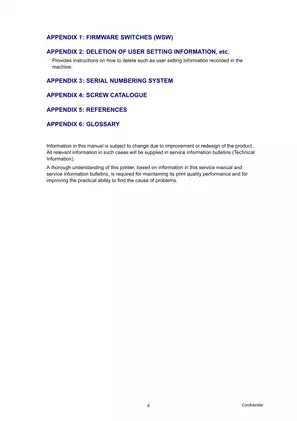

The download contains one printable English PDF with 519 pages, including the cover, front matter, chapter dividers, and 86 pages of appendices.

Print-Engine Repair, ADF Service, and Replacement Setup

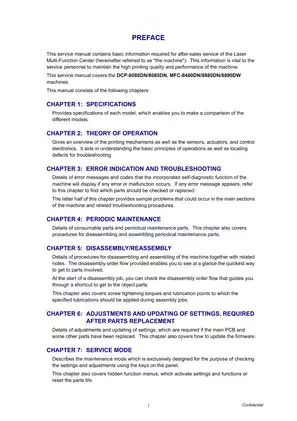

The selected topics below preview the manual rather than reproduce its full contents. Further subjects include deleting stored user settings and positioning the flatbed scanner for transportation.

• Print-engine repair: Step-by-step removal and installation procedures for the fuser and laser units, power supplies, main drive, registration, duplex, and eject mechanisms.

• Paper and document handling: Tray 1, the MP tray, optional LT-5300 lower tray, feed kits, sensors, solenoids, and simplex/duplex ADF disassembly and reassembly.

• Fault isolation: LCD messages and self-diagnostic codes for paper-feed and image defects, fuser and laser faults, network/wireless failures, fax communications, and scanning problems.

• Service-mode checks: ADF performance, test patterns, LCD and control-panel operation, live sensor states, paper feeding and ejection, fan operation, and machine logs.

• Replacement setup: Firmware rewriting, EEPROM customization, scanner calibration, and operational checks after main-PCB, wireless-LAN PCB, or flatbed-unit replacement.

• Workshop references: Disassembly flowcharts, screw-torque and lubrication tables, harness routing, circuit schematics, and mechanical section views.

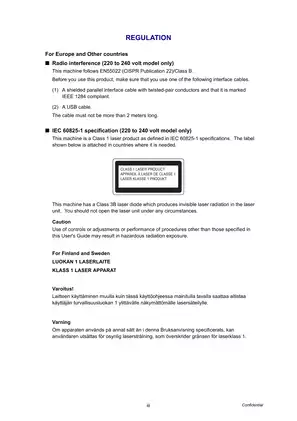

The manual is written for after-sales service personnel and is best suited to trained printer/MFP technicians who understand ESD control, powered voltage testing, and laser-printer safety.

Print, Scan, and Disassembly Coverage

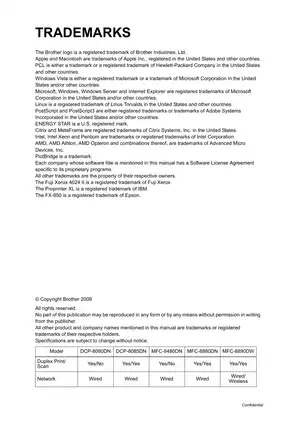

Model differences: All five models use wired Ethernet and automatic duplex printing. Duplex ADF scanning and copying apply to DCP-8085DN, MFC-8880DN, and MFC-8890DW. Fax/NCU sections apply to the MFC models; wireless-LAN hardware and setup apply only to MFC-8890DW.

The theory section explains charging, exposure, development, transfer, and fusing. It follows the standard-tray, optional lower-tray, MP, and duplex paper paths. Scanner material covers CCD drive, home-position detection, white-level compensation, flatbed operation, and simplex and switch-back duplex ADF operation.

The disassembly-order flow identifies access paths before component removal. Procedures cover the scanner/ADF, panel, PCBs, drive system, sensors, power supplies, and frame, with component-specific reassembly notes. The LT-5300 lower tray has a separate teardown section.

A screw catalog, location-specific torque tables, Gear Layout Drawing, harness-routing plates, and named lubrication points support correct reassembly. Periodic-maintenance material connects fuser, laser, Tray 1/2, and MP feed-kit replacement with life-counter resets, including region-specific MP-kit intervals.

Service Mode, Fault Tracing, and Calibration

Diagnostic references: Cause/check/remedy tables connect symptoms with checks and component remedies. Roller-pitch references help narrow down repeating print defects, while scanner troubleshooting distinguishes image-position errors from white-level and CCD faults.

Maintenance mode provides a 20-sensor live-state test, ROM/version checks, and logs for recent errors, jams, page counts, and replacement history. These references let technicians compare a reported fault with the machine’s stored history and current sensor responses.

Main-PCB replacement: Setup covers firmware rewriting, destination/EEPROM customization and initialization, serial-number and toner-cartridge-type setup, white-level/CCD-area acquisition, and final scan/print checks.

Firmware procedures call for the Brother Maintenance USB Printer Driver, Mainte.EXE/brmainte.exe, FILEDG32.EXE, firmware files, and a USB flash drive and cable. Scan/print verification uses test chart TC-023.

Separate procedures address wireless-PCB EEPROM data on MFC-8890DW and flatbed-unit recalibration. Scanner service also includes fine adjustment of ADF and flatbed scan start/end positions.

For MFC repairs, stored fax data can be transferred before service. Transmission-log output supports remote analysis of communication faults, and the firmware-switch appendix explains country-dependent communication and scanner settings.

Electrical Drawings and Repair Cautions

Named references include the General Block Diagram, printer and ADF Cross-section Drawings, High-voltage Power Supply PCB Circuit Diagram, and machine Wiring Diagram. The circuit chapter also supplies separate 115 V/230 V LVPS and NCU schematics.

The manual does not include a component-level main-PCB circuit diagram or a complete replacement-parts catalog. Fuser and laser procedures address assembly replacement rather than internal rebuilding.

Handling cautions: Shocks or contact with fuser rollers and electrodes can damage the unit, and the heater-terminal harness can be trapped beneath its cover. Incorrect positioning of the ADF switch-back, LF, and exit rollers can cause document jams or stretched scan images.

Power should normally be disconnected before chassis access, the fuser allowed to cool, and the sealed laser unit must not be opened.

Examples of Roller-Pitch and Fastener Data

The image-defect table lists a 94.2 mm repeat pitch for the exposure drum and 78.5 mm for both the fuser heat roller and pressure roller. These references support comparison of repeating marks with likely roller sources.

For reassembly, the screw-torque list specifies 0.7 ± 0.1 N·m for the fuser unit’s Taptite pan B M4x20 screw. Torques are assigned by screw location rather than presented as one general tightening value.
