1995–2006 Kawasaki KDX200 Service Manual (P/N 98051-1447C)

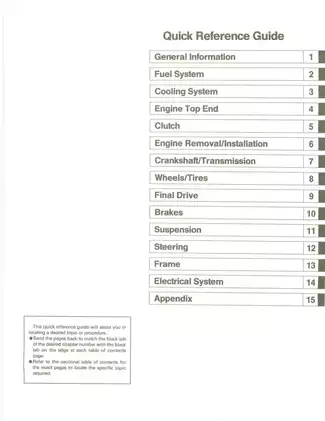

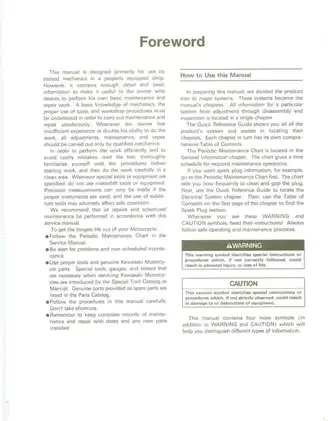

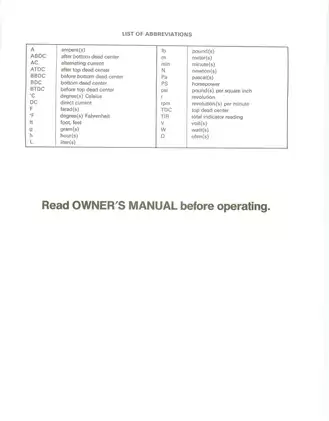

• Kawasaki KDX200 Motorcycle Service Manual: a Kawasaki factory publication, first edition dated July 15, 1994. This 213-page PDF is organized into 15 chapters; the model-identification and specification sections are labeled KDX200-H1.
• Covers the two-stroke powertrain service path from Keihin PWK35 carburetor fuel-level checks and reed-valve inspection through cylinder, piston, KIPS exhaust-valve, expansion-chamber, and spark-arrester repair procedures.
• Details engine removal, clutch and right-side cover service, crankcase splitting, crankshaft inspection, and six-speed transmission work, including shaft disassembly, shift-drum and fork installation, gear-dog inspection, and final operational shifting checks.
• Documents cooling, brake, wheel, steering, and final-drive repair work, with cooling-system pressure testing and flushing, water-pump mechanical-seal replacement, brake-fluid changing and bleeding, caliper and master-cylinder overhaul, wheel-bearing service, and chain and sprocket inspection.
• Covers suspension adjustment and internal service: fork oil-level setting, oil change, seal and guide-bush replacement, spring changes, damping adjustment, rear-shock oil service and nitrogen charging, plus swingarm and Uni-Trak bearing removal and installation.
• Includes electrical diagnosis and visual references for the CDI ignition, flywheel magneto, ignition coil, regulator, lighting coils, wiring continuity, and trip meter, supported by the KDX200-H1 wiring diagram, resistance tables, and a CDI troubleshooting chart.
• Important PDF scope note: the Electrical System chapter jumps from printed page 14-9 to 14-12. Printed pages 14-10 and 14-11 are absent, leaving a gap within the flywheel-magneto and ignition-system sequence.

Model and System Coverage

The publication is built around the KDX200-H1 configuration: a 198 mL liquid-cooled, single-cylinder, piston-reed-valve two-stroke with Kawasaki’s KIPS exhaust-control system, a wet multi-disc clutch, six-speed constant-mesh return-shift transmission, chain final drive, telescopic fork, Uni-Trak rear suspension, and front and rear disc brakes. That level of identification matters when selecting repair procedures, specifications, or special tools. Use the KDX200-H1 designation as the coverage check before purchase.

The fuel and top-end chapters cover throttle and clutch cable adjustment, carburetor idle and service fuel-level checks, carburetor removal and internal cleaning, air-cleaner service, fuel-tap inspection, reed-valve inspection, compression testing, cylinder-head and cylinder removal, piston and ring inspection, and KIPS valve removal and installation. KIPS is not treated as a passing feature. Separate technical diagrams explain the governor-driven advancer, main valves, sub-valves, resonator, and the valve positions used at low and higher engine speeds.

Mechanical and Fluid System Documentation

Cooling-system content includes coolant draining, filling and air bleeding, pressure testing, flushing, radiator-cap testing, hose inspection, water-pump shaft service, and mechanical-seal replacement. Brake coverage extends beyond pad replacement to fluid selection, fluid changing, line bleeding, front and rear caliper disassembly, master-cylinder disassembly and inspection, disc checks, and hose replacement. These are repair areas where fluid compatibility, cleanliness, seal condition, and final hydraulic checks directly affect safety.

The suspension chapter goes well beyond external adjusters. It includes fork oil service, oil-level adjustment, spring replacement, full fork disassembly and reassembly, inner-tube inspection, and damping setup. The rear-shock section covers spring and damping adjustment, shock removal, oil-change disassembly, reservoir and push-rod assembly work, air removal, leak checks, and nitrogen recharge. The manual warns that pressurized nitrogen work is hazardous and calls for a qualified mechanic for that operation.

Chassis procedures include front and rear wheel removal, spoke and rim checks, tire removal and installation, hub-bearing replacement, drive-chain wear and alignment checks, sprocket service, steering-stem bearing replacement and lubrication, swingarm service, and Uni-Trak rocker-arm and tie-rod bearing work. Component-specific torque tables, tightening sequences, locking-agent callouts, transmission gear-ratio tables, fluid-capacity data, wear limits, clearances, runout limits, and electrical test values are tied directly to the related procedures and exploded views.

The appendix adds fault-isolation lists for starting difficulty, low- and high-speed running problems, KIPS faults, overheating, clutch and shifting complaints, abnormal engine or drivetrain noise, handling issues, and brakes that do not hold.

Factory Tools, Diagrams, and Repair-Critical Details

Representative Kawasaki tools are identified by name and part number, including the Fuel Level Gauge 57001-122, Flywheel Puller 57001-252, Crankcase Splitting Tool Assembly 57001-1098, Crankshaft Jig 57001-1174, Fork Oil Level Gauge 57001-1290, and Hand Tester 57001-983. Useful visual references include the KIPS mechanism and valve-position diagrams, cable/wire/hose routing layouts, water-pump mechanical-seal views, crankshaft and transmission exploded views, the KDX200-H1 wiring diagram, and the CDI troubleshooting flowchart.

Several assembly cautions show why the factory repair information matters. The KIPS sub-valves and valve rods are side-specific, and their indexing marks must align; mixing sides or missing the marks can produce incorrectly assembled exhaust valves and poor power. The water-pump oil seal must not block the coolant drain passage, and the mechanical seal is pressed rather than hammered to protect its sealing face. Rear-shock circlips must seat correctly before nitrogen charging, because an improperly retained reservoir cap or push-rod assembly can be forced out under pressure.

For bottom-end work, the manual covers crankcase splitting, crankshaft removal, bearing installation, runout measurement, alignment checks, and transmission inspection. It also sets a clear scope limit: crankpin press work and crankshaft assembly are described as operations for a shop with the required tools and equipment, not as a fully developed home-bench crankshaft rebuilding procedure.
