Jaguar XK8 Workshop Manual 1996–2006 (P/N JJM 10 04 14/7)
1997 Jaguar XK8 Workshop Manual PDF | 462 Pages
Jaguar Models Covered & Key Technical Specifications
Model & Model Code: XK8 (X100)
Model Years: 1996–2006 (1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006)
Sub-models / Variants: Coupe and Convertible (both with AJ26 4.0-liter V8 and ZF 5HP24 automatic transmission)
-
Final drive oil: Shell Spirax Thermally Stable Super TS 90
-
Final drive oil capacity: 1.80 liters
-
Front disc brake rotor diameter: 305 mm
-
Front disc brake rotor thickness: 28 mm
-
Rear disc brake rotor diameter: 305 mm
-
Rear disc brake rotor thickness: 28 mm
-
Brake fluid specification: IPT Super Dot 4
-
Front tire pressures (245/50 ZR 17, cold): 32 lb/in² (Normal) / 26 lb/in² (Comfort, up to 100 mph)
-
Rear tire pressures (245/50 ZR 17, cold): 34 lb/in² (Normal) / 28 lb/in² (Comfort, up to 100 mph)
-
Lug nut torque (Alloy Wheels): 88–102 Nm
-
Caliper socket head bolt torque: 120–160 Nm
-
Wheel hub to axle shaft nut torque: 304–336 Nm
Jaguar Manual Features & Selected Content Preview
Jaguar Cars Limited’s August 1996 XK8 Workshop Manual, P/N JJM 10 04 14/7, covers the 1997 X100 XK8 coupe and convertible with the AJ26 4.0-liter V8 and ZF 5HP24 automatic transmission. It combines factory specifications, system descriptions, and illustrated removal and installation procedures.
Printable PDF and Section Navigation
Text search and navigation: The PDF has no text search or embedded bookmarks. Use the printed contents and section numbers to find a procedure.

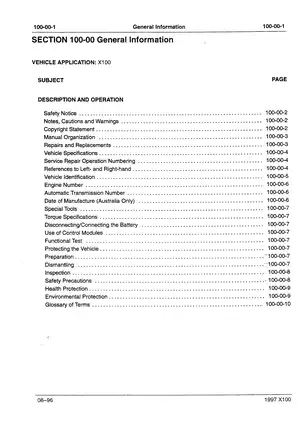

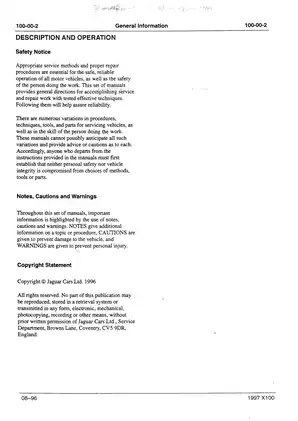

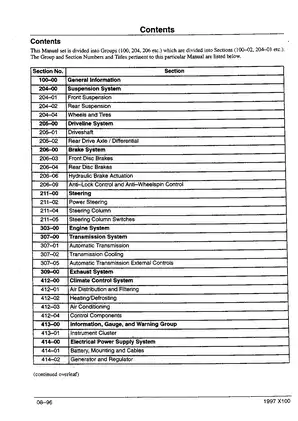

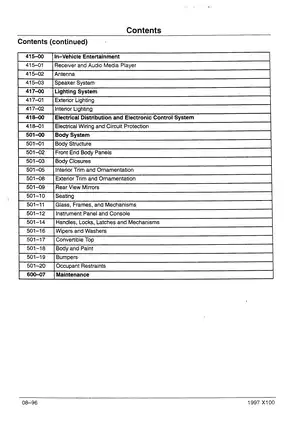

The download contains one printable English PDF with 462 pages total, including the original Jaguar cover, two general contents pages, and 459 workshop section pages. The section pages include the glossary, maintenance schedule, and fluid and lubrication service-point illustration.
Chassis, Driveline, and Body Service
These selected workshop topics show the range of procedures in the manual. Other sections cover headlamp assembly replacement and cabin air distribution.
- Chassis and brakes: Front wheel-bearing renewal, driveshaft and Type 14 HU final drive removal and installation, brake bleeding, and ABS control-module and wheel-speed-sensor replacement.
- Transmission and exhaust: Automatic transmission and torque-converter replacement, transmission cooling and overheating protection, and removal and installation of downpipe catalytic converters and mufflers.
- Steering and climate control: Electric tilt-and-reach steering column and switchgear service, plus air-conditioning compressor and receiver/drier replacement.
- Electrical components: Generator, suppression module, body, door, and seat control modules, fuse boxes, and instrument-cluster replacement, with a battery reconnection procedure.
- Body and restraints: Door seals, interior trim, seats, mirrors, wiper motor and linkage, and airbag components, with applicable coupe, convertible, and steering-side differences.
- Convertible top: Powered operation, automatic latching, coordination with the side windows, and emergency manual raising and lowering.
The press work, drivetrain lifting, and restraint-system procedures suit technicians with workshop equipment and experience in chassis, electrical, and body repair.
Suspension, Final Drive, and Brakes
The front and rear suspension illustrations show the aluminum front crossbeam and independent rear suspension. The Final Drive Unit illustration shows how the differential mounts. Front bearing renewal calls for remover JD 237 and installer JD 238. Final drive work calls for spring compressor JD 199.
Circlip pliers can damage the front bearing’s integral seal. The front brake rotor procedure also shows how to check installed runout with a dial indicator. Rear brake service includes pad replacement.
The Anti-Lock Braking Control layout identifies the tandem master cylinder, hydraulic circuits, and ABS and traction-control components. Torque tables cover wheel hubs, calipers, and wishbone fasteners.
AJ26 Engine, Transmission, and Exhaust
The engine section provides lubricant specifications, capacities, and an AJ26 overview. Internal engine repair and timing-chain procedures are outside this volume’s scope.
Transmission removal uses JD-222 lifting brackets and the MS-53C engine support. Torque-converter replacement has its own procedure. Internal transmission overhaul is outside this volume’s scope. The fluid draining and filling procedure is in the separate Diagnostic and Test Manual.
The downpipe illustration distinguishes North American downstream oxygen sensors from Japanese-market temperature sensors, so you can match the configuration before selecting a replacement.
Power Steering and Air Conditioning
The steering section describes the ZF variable-ratio rack-and-pinion system and gives fluid and fastener specifications. Steering-column service includes the tilt motor, ignition switch, lock barrel, and steering-wheel alignment.
The Air Conditioning System illustration identifies the refrigerant components and service ports. Compressor replacement covers how to account for oil removed from the original unit and recovered from the system. The separate Diagnostic and Test Manual covers refrigerant recovery and charging.
Electrical Layouts and Diagnostic References
The SCP network illustration maps the body-control modules, and the fuse-box illustration distinguishes engine-management fuse-box positions on left- and right-hand-drive cars. The battery reconnection procedure explains how to restore automatic window drop after power loss, a check to make before replacing a window component.
Lighting and audio sections cover component replacement, including base and premium audio and the different speaker layouts for coupe and convertible models. Detailed wiring diagrams, connector pinouts, and diagnostic trouble code charts are outside this volume’s scope. Jaguar published the Diagnostic and Test Manual and the On-board Diagnostics Manual separately.
Body, Restraints, and Convertible Top
Body procedures include dashboard and center-console removal, door-handle and lock-barrel service, and rear-bumper replacement. The restraint section covers airbags, primary crash sensors, and control-module access for left- and right-hand-drive cars.
Incorrect emergency lowering can damage the convertible top frame and linkages. The top section covers operation and emergency handling. Pump and frame overhaul are outside its scope.
Use rated lifting equipment and secure vehicle supports for suspension and drivetrain work. Follow the manual’s precautions for compressed springs, refrigerant handling, and airbag backup power.
Sample Ball-Joint Press Loads and A/C Capacities
The front suspension table specifies a press-in load of 25–50 kN for each upper and lower ball joint.
The air-conditioning specification table lists an HFC 134a charge of 850 g ± 50 g and a PAG compressor lubricant capacity of 160–200 mL. The compressor replacement procedure separately explains how to calculate the oil needed for the replacement unit.
