Snowmobile Yamaha RX10 RX10S RX10R RX10RS RX10M RX10MS Service Manual: 2006-2008

Complete workshop manual for Yamaha RX10, RX10S, RX10R, RX10RS, RX10M, RX10MS snowmobiles. Includes maintenance, repair, and troubleshooting procedures.

4.5starstarstarstarstar_half(2)
visibility Preview Available
Yamaha Snowmobile Yamaha RX10 RX10S RX10R RX10RS RX10M RX10MS Service Manual: 2006-2008 manual page preview - page 1 of 484

Sample pages from the Snowmobile Yamaha RX10 RX10S RX10R RX10RS RX10M RX10MS Service Manual: 2006-2008 manual

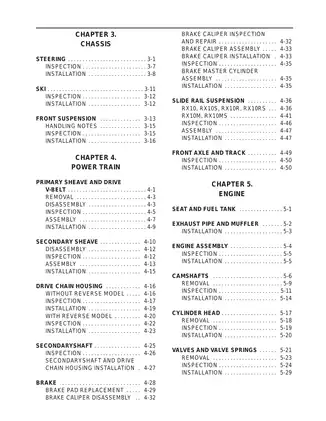

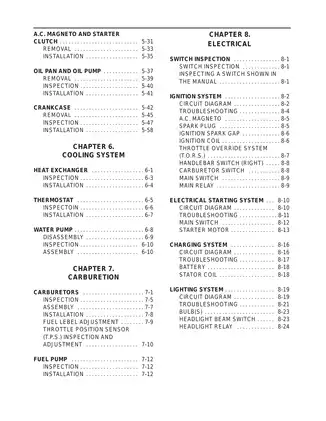

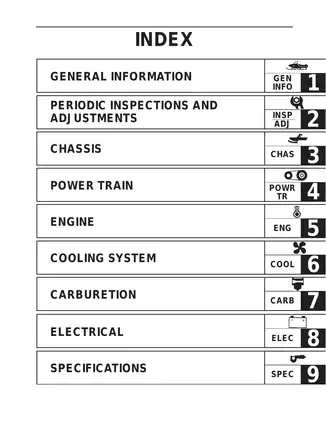

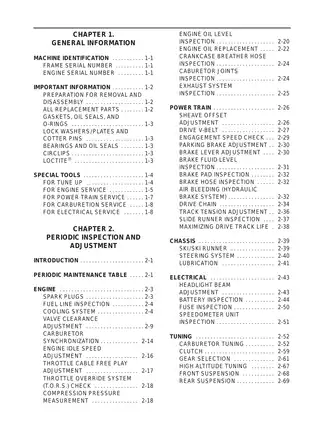

Yamaha Snowmobile Yamaha RX10 RX10S RX10R RX10RS RX10M RX10MS Service Manual: 2006-2008 manual preview page 2 - thumbnail
Yamaha Snowmobile Yamaha RX10 RX10S RX10R RX10RS RX10M RX10MS Service Manual: 2006-2008 manual preview page 3 - thumbnail
Yamaha Snowmobile Yamaha RX10 RX10S RX10R RX10RS RX10M RX10MS Service Manual: 2006-2008 manual preview page 4 - thumbnail
Yamaha Snowmobile Yamaha RX10 RX10S RX10R RX10RS RX10M RX10MS Service Manual: 2006-2008 manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$16.95 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
2 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha RX10, RX10S, RX10R, RX10RS, RX10M, RX10MS
Sub-models / Variants: 2-stroke/4-stroke variants (where applicable), Reverse Transmission models (RX10R, RX10RS), Mountain models (RX10M, RX10MS)
Build Years: 2006–2008
Serial Numbers: Frame serial number located on the right-hand side of the frame; engine serial number located on the left-hand side of the crankcase
Technical Data:

  • Engine displacement: 749 cc
  • Coolant capacity: 4.7 L (4.14 lmp qt, 4.97 US qt)
  • Engine oil (Periodic oil change): 2.8 L (2.5 lmp qt, 3.0 US qt)
  • Engine idle speed: 1,350 ± 100 r/min
  • Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
  • Standard spark plug: CR9E (NGK)
  • Compression pressure (Standard): 1,450 kPa (14.5 kg/cm2, 206 psi) at 400 r/min
  • Primary clutch engagement speed: 3,600 ± 200 r/min (RX10, RX10S, RX10R, RX10RS); 4,200 ± 200 r/min (RX10M, RX10MS)
  • Track deflection: 25–30 mm (0.98–1.18 in) at 100 N (10 kg, 22 lb) load
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29781 / Douglas Williams
File Size:
6.05 MB
File Type:
PDF
Language:
English
Pages:
484
Printable:
Yes
Category:
Snowmobile
Last updated / verified
Jan 21, 2025

Yamaha Manual Features & Content Preview

Technical Scope and Data for 2006–2008 Yamaha RX10 Snowmobiles

  • Covers 2006–2008 Yamaha RX10, RX10S, RX10R, RX10RS, RX10M, and RX10MS snowmobile variants including reverse-equipped and mountain editions
  • Original OEM publication with specific revision data noted in the document header
  • Contains 47 detailed exploded-view assembly diagrams and 15 torque specification tables
  • Accessible from your device as soon as the order is placed
  • OCR text layer lets you jump to a torque spec by keyword
  • Suitable for printing individual sections for shop-floor use
  • This 484-page manual serves as the primary reference for the 2006–2008 RX10-series chassis, engine, and electrical systems management.

Component and Systems Documentation

This 484-page official publication details the service and maintenance parameters for the Yamaha RX10 series snowmobiles. The content includes exhaustive instructions for engine assembly, cooling system flushing, and power train maintenance, including primary and secondary clutch adjustments. Specialized chapters provide reference data for fuel system tuning, electrical troubleshooting, and chassis alignment, ensuring technicians maintain the correct clearances for the engine and drivetrain components.

Technical Specification Highlights

Specification tables document critical tolerances for the 2006–2008 Yamaha RX10 models, including valve clearances, compression pressures, and torque values. For instance, the cylinder head bolt torque is specified at 10 Nm in the engine assembly data. The coolant system capacity for the RX10 series is documented at 4.7 liters. Additionally, intake valve clearance is listed at 0.11–0.20 mm in the engine adjustment specifications section. A comprehensive what an OEM service publication covers guide is included within the technical sections.

Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. An official 484-page Yamaha OEM service manual covering the 2006–2008 RX10 series, documenting engine, chassis, electrical, and suspension specifications for the RX10, RX10S, RX10R, RX10RS, RX10M, and RX10MS builds.

Manual FAQ, Purchase & Download Details

Can you provide details regarding the edition or document references included in the 2006-2008 Yamaha snowmobile service manual? keyboard_arrow_down

Document is titled as the Yamaha RX10 Service Manual with coverage spanning 2006-2008. It includes publication cues such as an illustrated symbol reference section and a detailed index covering chapters from general information to specifications.

Which chapters contain technical specification tables, tightening torque values, and wear limit references? keyboard_arrow_down

Chapter 9 is dedicated to specifications and includes maintenance tables for engine, power train, chassis, and electrical systems, along with tightening torque charts.

What information does this document contain regarding exploded views and parts illustrations for internal components? keyboard_arrow_down

Manual contains numerous sections featuring exploded views and assembly illustrations for components such as the primary and secondary sheaves, brake systems, and engine assemblies. These diagrams are identified by illustrated symbols throughout the document to indicate lubrication points and proper assembly orientation. The material is organized by chapter to assist in locating specific component breakdown references.

Does this manual support instant download and viewing on multiple electronic devices? keyboard_arrow_down

Service manual is provided in a high-quality PDF format that allows for instant download and is compatible with most standard PDF viewing devices.

Are there reference tables or charts for electrical components and connector pinouts included in the manual? keyboard_arrow_down

Electrical chapters include circuit diagrams, switch inspection information, and test data for various systems like the ignition and charging units. These sections provide reference material for the electrical systems of the covered models.
