2002 Jeep Grand Cherokee WG Factory Service Manual
Diagnostic procedures and component service for the front and rear suspension systems, wheel alignment, brakes, and more. PN 82205537
Manual Preview

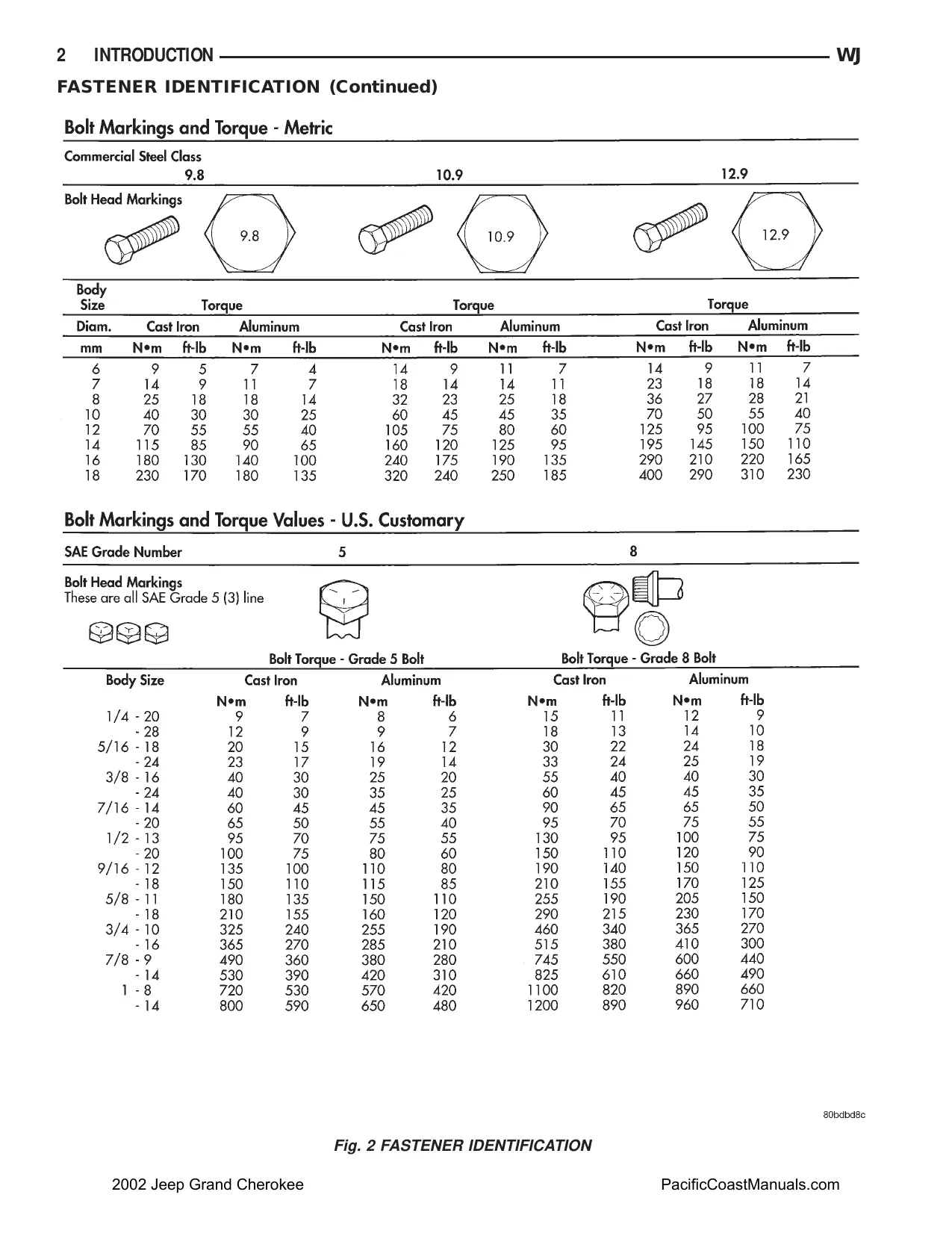

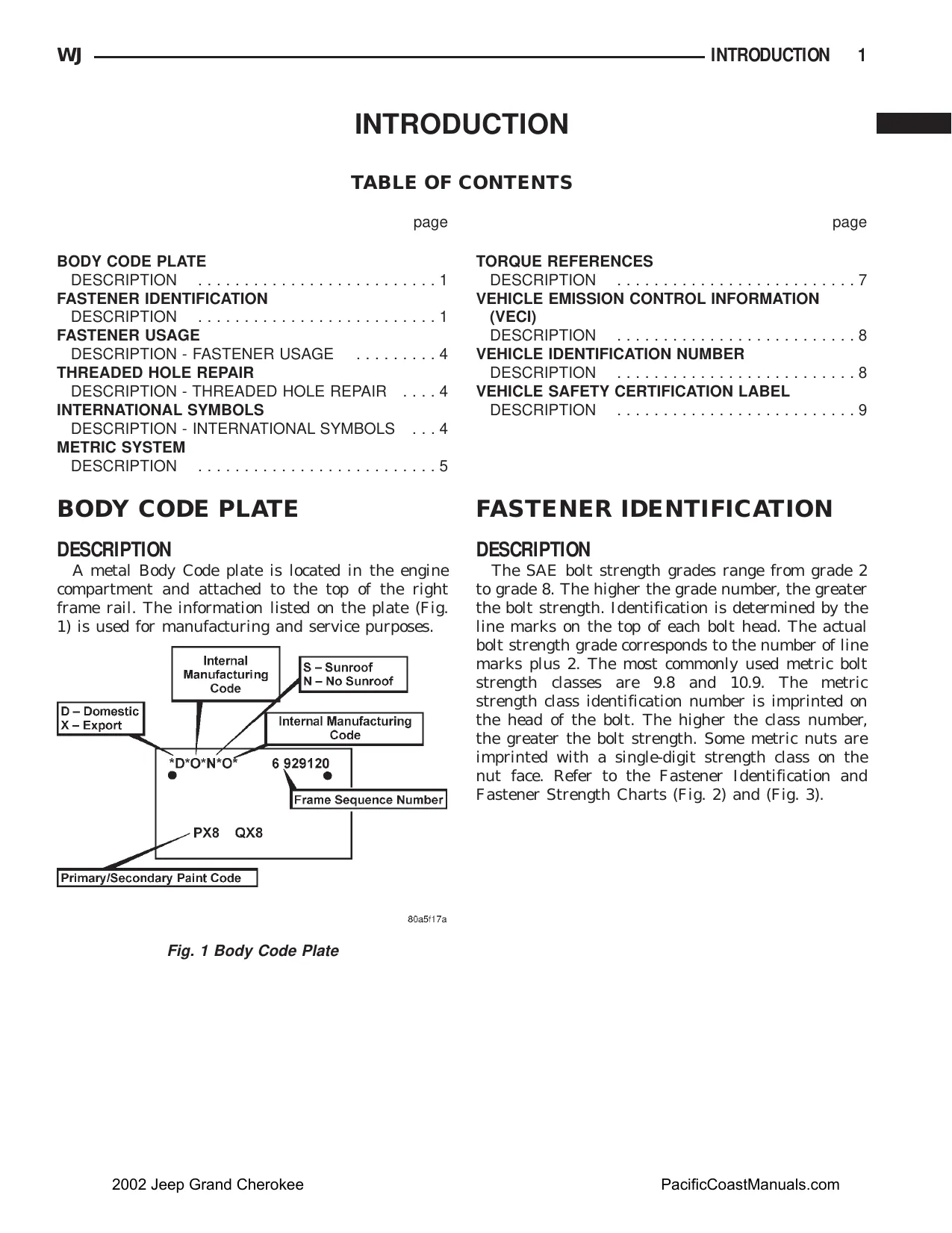

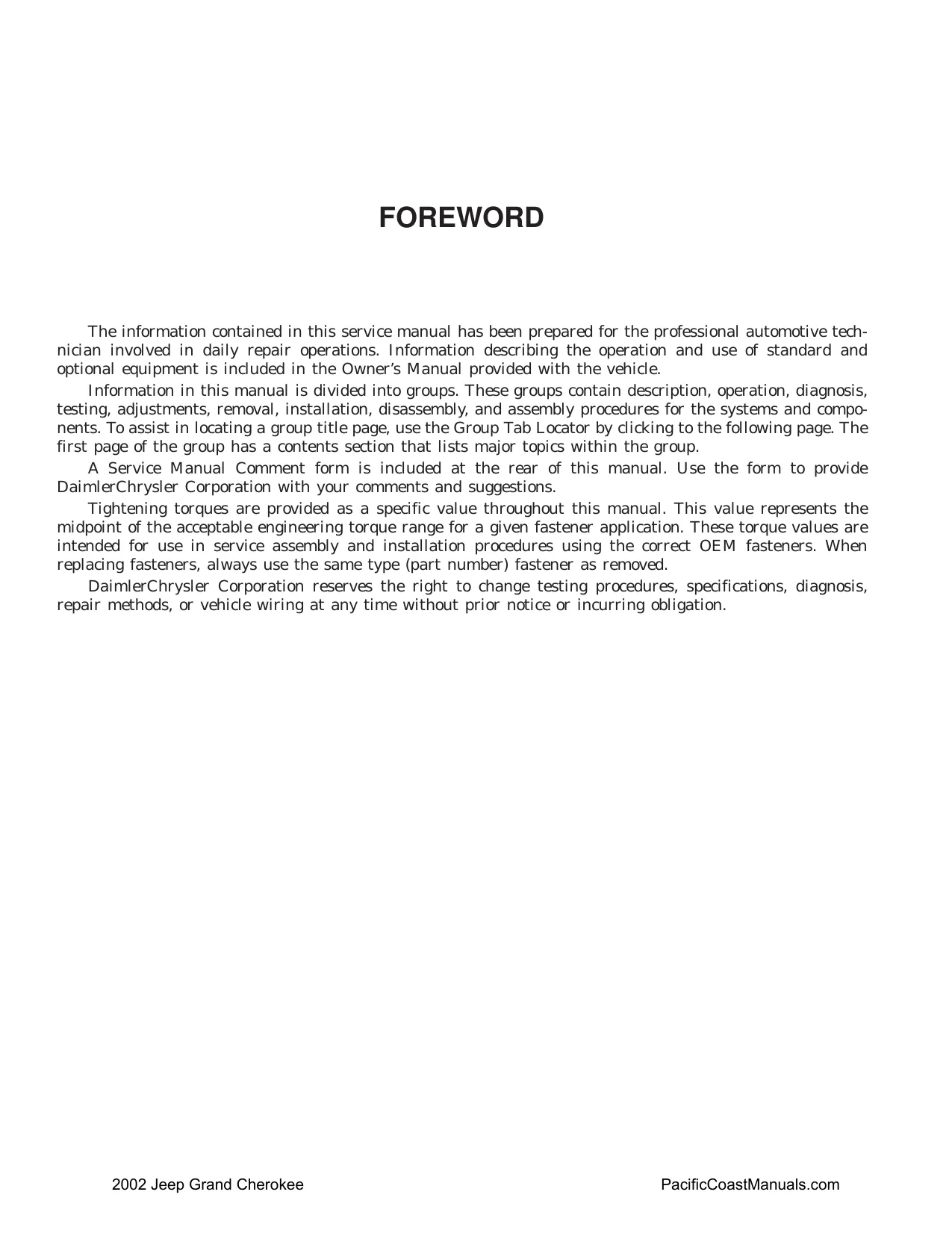

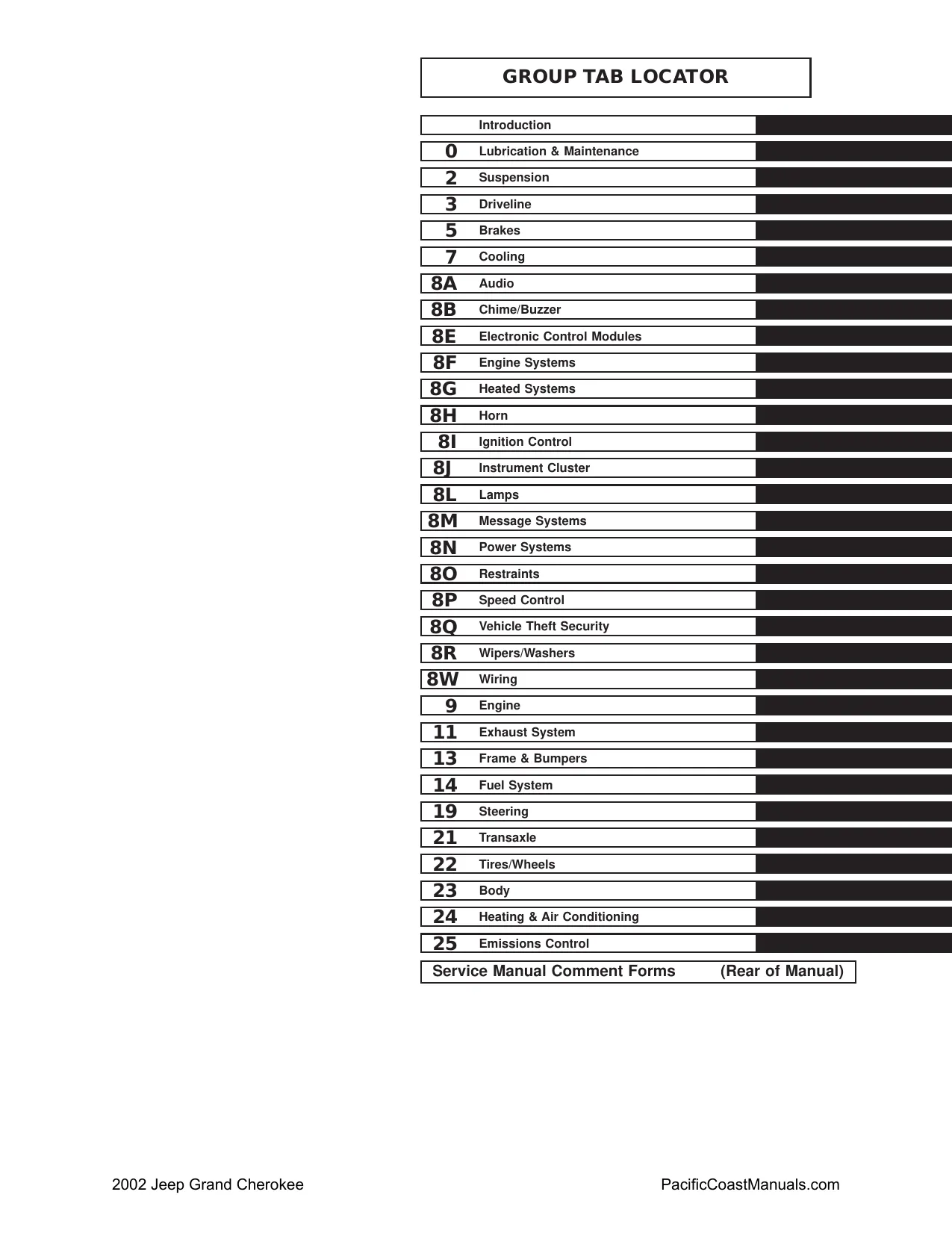

Sample pages from the 2002 Jeep Grand Cherokee WG Factory Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Commercial Safety Shop Manual: Jeep Grand Cherokee manual, 2002 PDF Data-Compendium
System-Coverage: Front & Rear Suspension, Wheel Alignment, Brakes, Differential, Propeller Shaft, Axles, ABS & more // Model-Designation: Jeep Grand Cherokee WG (2002) // System-Coverage: Vehicle Maintenance, Component Replacement, Diagnostic Procedures
| Assessment-Parameter | Parameters | Framework |
|---|---|---|
| Prescribed Specifications: | 3.31, 3.55, 3.73, 3.91 Front/Rear Axle Ratios | Margin |
| Documented Torque Values: | 41 N·m Differential Cover Bolts for proper fastener seating | Protocol |
| Core Component Capacities: | 20 U.S. Gallons (76 Liters) Fuel Tank Capacity | Architecture |
| Rated Operating Temperatures: | 50/50 Ethylene Glycol/Water Coolant Mixture for optimal performance | Norms |
| Technical Resolution Data: | 0.025 mm (0.001 in.) Front Differential Bearing Preload | Bounds |
| Advanced System Controls: | ABS System for rear wheel slip control during braking | Topology |
Professional Workshop Service Manual & Technical Specifications
Commercial Safety Shop Manual: Jeep Grand Cherokee manual, 2002 PDF Data-Compendium
System-Coverage: Front & Rear Suspension, Wheel Alignment, Brakes, Differential, Propeller Shaft, Axles, ABS & more // Model-Designation: Jeep Grand Cherokee WG (2002) // System-Coverage: Vehicle Maintenance, Component Replacement, Diagnostic Procedures
Service sections detail system components, operation, diagnosis, and repair procedures. This document provides comprehensive coverage for maintenance and repair activities. It includes detailed information on brake system diagnostics and maintenance, including brake shoe and caliper service. The manual also covers differential and axle shaft procedures, including overhaul and adjustment. Torque specifications are provided for critical components to ensure proper assembly and pivot-point integrity.
Torque Statement: This manual documents torque specifications for suspension components to ensure proper pivot-point integrity.
Front Suspension System Overview
Repair information is provided for the front suspension, covering component removal and installation. The document includes coverage of the front axle, knuckles, control arms, and steering components. Brake system specifications are included for the front disc brake calipers and rotors. Safety procedures are documented for suspension system repairs, ensuring proper vehicle handling.
Rear Suspension System Overview
The document includes coverage of the rear suspension, detailing rear axle, differential, and brake system components. Brake system specifications are included for the rear disc brake calipers and rotors. Fluid capacities are listed for the rear differential and other essential vehicle fluids. Diagnostic procedures for rear suspension and brake issues are also included.
Wheel Alignment and Brake System Maintenance
Proper wheel alignment is essential for efficient steering and minimizing tire wear, with detailed specifications provided. The brake system maintenance section covers brake fluid, master cylinder, brake lines, and pedal adjustments. It outlines procedures for bleeding the brake system and inspecting all brake components for wear and damage.
Differential and Driveline Component Service
Differential and driveline components are thoroughly documented, including procedures for differential case removal, assembly, and installation. The manual details procedures for pinion gear and ring gear service, including backlash and contact pattern adjustments. It also covers propeller shaft and axle shaft service, ensuring proper driveline operation.
Specifications and Special Tools
This manual provides essential vehicle specifications, including axle ratios, bearing preloads, and torque values for critical fasteners. A comprehensive list of special tools required for various repair procedures is also included, ensuring that technicians have the necessary equipment for accurate and safe repairs.
