Caterpillar 3208 Truck Engine Repair Manual Set, 1985– (P/N SEBR0541-03)

This set combines operating guidance with the test, repair, and machining information needed for 2Z-series work. Its serial-specific fuel-system and piston-cooling references help match components and procedures to the engine being rebuilt.

Separate references: Engine-specific fuel and governor settings require the Fuel Setting and Related Information Fiche. Dedicated L.E.S. testing refers to SEBR0514, nozzle bench testing and cleaning refer to SEHS7292, and complete electrical-component testing refers to REG00636. These references are not included.

PDF Search, Bookmarks, and File Contents

Text search and diagram detail: Both Caterpillar manuals contain OCR text and embedded bookmarks, although recognition errors can affect individual search results. Bookmarks cover operating and maintenance topics and the main service sections. The Questions & Answers supplement has neither text search nor bookmarks. Small labels in the service diagrams require zooming.

The ZIP download contains three printable PDFs totaling 428 pages. Included in that total are two literature-order pages in the operation volume, three blank pages and one repeated compressor page in the service volume, and one advertising page in the supplement.

Engine Care, Fuel-System Diagnosis, and Rebuild Work

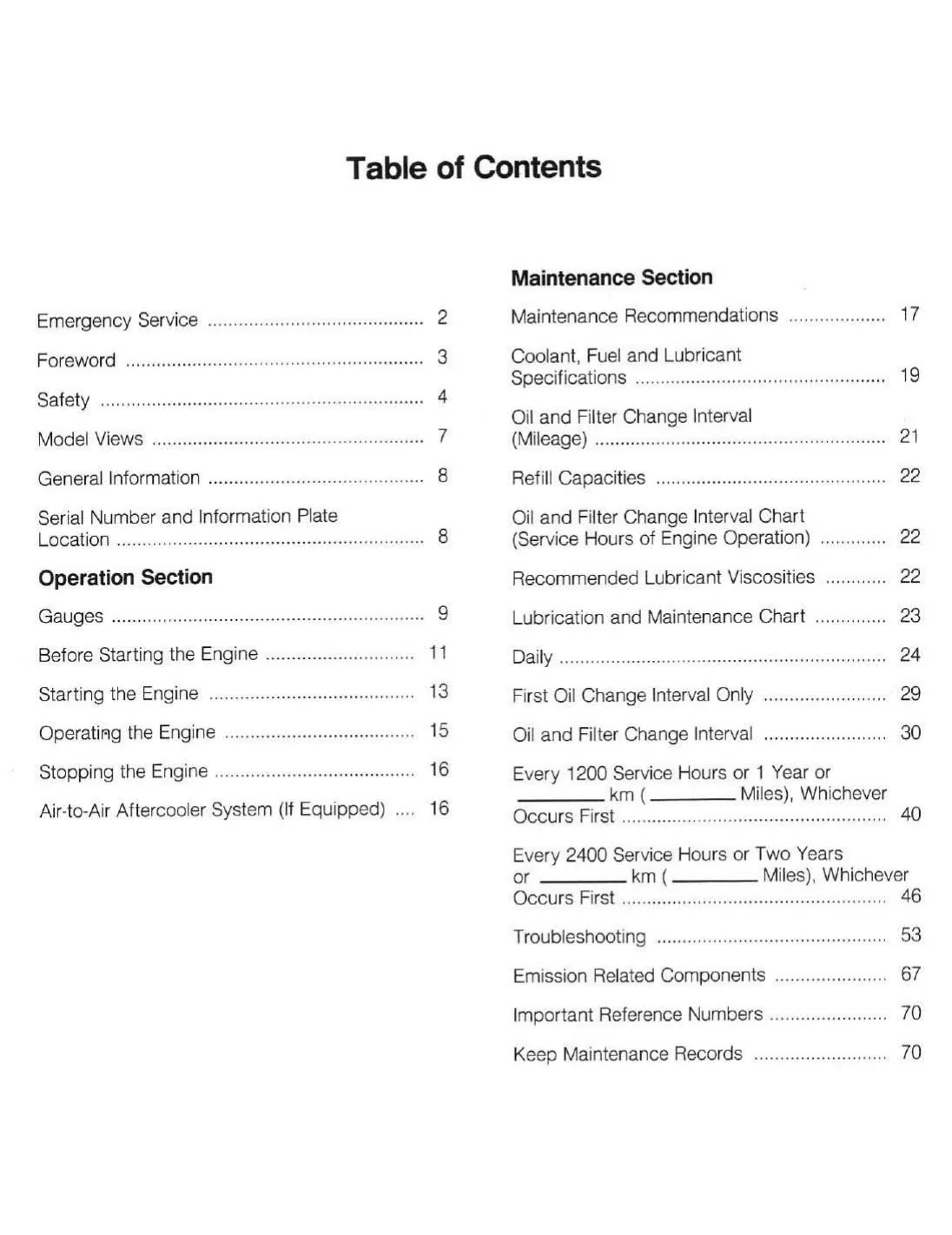

This selected content preview is not a complete table of contents. Further topics include engine sound suppression and flywheel-housing runout checks.

• Routine care: Daily checks and interval-based servicing, with lubricant, fuel, coolant, refill-capacity, and engine-arrangement reference tables.

• Fuel-system repair: Sleeve-metering injection pumps, governor, fuel ratio control, automatic timing advance, transfer pump, injection nozzles, and water separator, with disassembly, calibration, and adjustment procedures.

• Internal-engine repair: Step-by-step removal, inspection, and reassembly procedures for cylinder heads and valves, pistons and connecting rods, crankshaft, camshaft, bearings, and timing gears.

• Fault diagnosis: Low power, high fuel consumption, difficult starting, smoke, misfiring, vibration, coolant loss, fuel in the crankcase, and lubrication faults.

• Cooling and air systems: Water-pump and oil-cooler service, thermostat checks, turbocharger inspection, and air-to-air aftercooler leakage tests.

• Electrical testing: Battery, charging, starting, and solenoid checks, with electrical test values and on-engine fault-isolation procedures.

• Air compressors: Tu-Flo 501 and Tu-Flo 700 operating theory, preventive maintenance, leakage and operating tests, disassembly, inspection, assembly, rebuilt-unit checks, and troubleshooting charts.

Because the service manual includes injection-pump calibration, cylinder-block machining, and full component teardown, its repair content is suited to experienced diesel technicians and engine rebuilders with the specified tools and test equipment. Owners handling routine care will get the most direct use from the operation and maintenance volume.

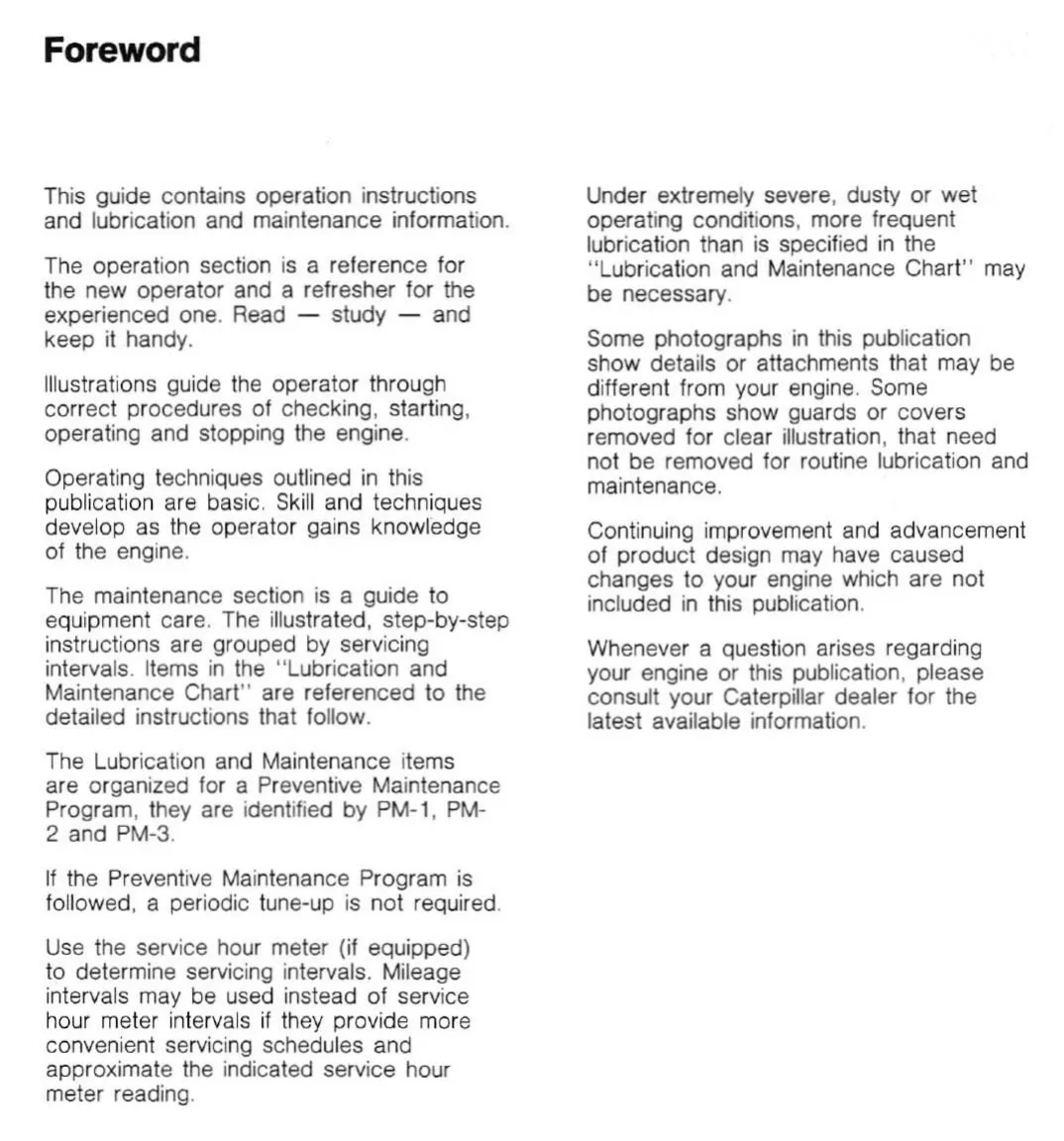

Operation and Preventive Maintenance

The handbook explains pre-start inspections, normal and cold-weather starting, warm-up, progressive shifting, operation under load, shutdown, and air-to-air aftercooler care. Daily checks cover oil, coolant, the air-cleaner indicator, belts, the engine compartment, and water-separator draining.

Maintenance follows the Caterpillar PM-1, PM-2, and PM-3 program, with daily, first-oil-change, oil-and-filter-change, 1,200-hour/annual, and 2,400-hour/two-year schedules.

Procedures cover cooling-system cleaning and conditioner use, water-separator element replacement, valve-clearance inspection and adjustment, and injection-nozzle isolation, removal, installation, and referral for testing. The L.E.S. material includes operational checks for applicable California engines.

Injection Timing, Calibration, and Nozzle Service

Fuel-system work documents static and dynamic injection timing, automatic timing-advance checks, fuel setting, crossover-lever adjustment, and governor adjustment. Specified equipment includes the 8T5300 Timing Indicator Group, 8T5301 Diesel Timing Adapter Group, and 5P4203 Field Service Tool Group.

The repair chapters distinguish disassembly and assembly of 9N3979 and 1W5829 nozzles from removal and installation of 7000 Series nozzles. Fuel-ratio-control descriptions also distinguish arrangements with and without hydraulic override.

The manual warns that incorrectly installed injection-pump sleeves can cause engine damage during the first start after service.

Block Machining and Engine Reconditioning

Reconditioning coverage includes cylinder-block honing, main-bearing-bore and cap line boring, piston-cooling-jet service, and camshaft-bearing work. Cylinder-head and rotating-assembly material adds valve grinding, connecting-rod inspection and bushing work, crankshaft grinding, and seal installation.

The repair chapters distinguish Schwitzer and AiResearch turbocharger service, two-ring and three-ring piston arrangements, and earlier and later cylinder-head bolts and valve-spring arrangements. Torque tables, wear and reuse limits, pressure and clearance specifications, and adjustment data accompany the component work.

Rebuilt-engine material covers pressure lubrication, initial run-in, and dynamometer-test precautions. The block-service instructions also identify the low-oil-pressure risk caused by missing piston-cooling orifices or plugs in the main-bearing-bore oil passages.

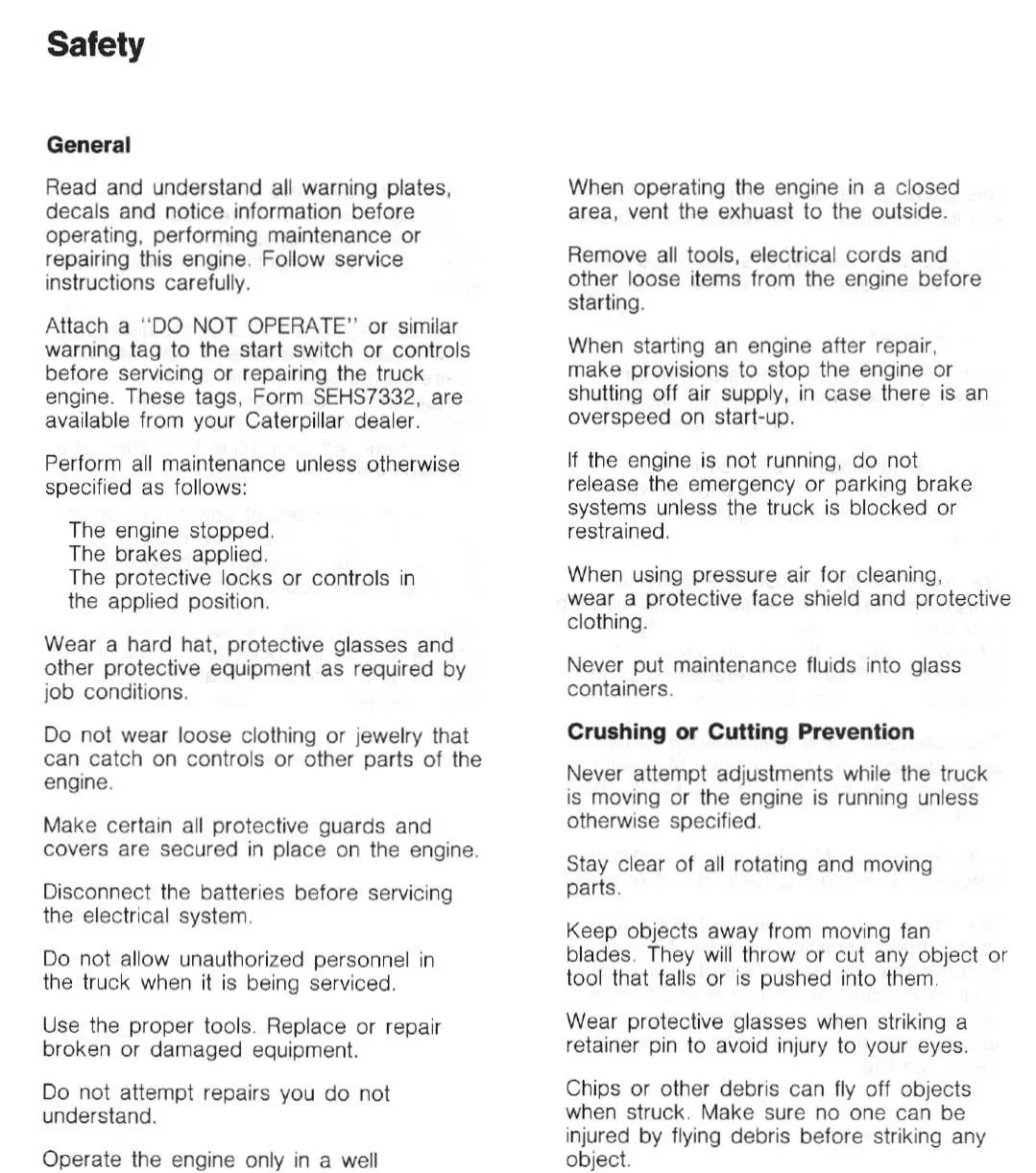

Work involving pressurized fuel, hot coolant, rotating assemblies, heavy engine parts, and compressed-air brake components requires the shop equipment and safety practices specified in the manuals.

Diagnostic Charts and Engine-System Drawings

Low-power and high-fuel-consumption charts combine preliminary engine checks with more detailed testing, including chassis-dynamometer checks. Separate troubleshooting material addresses smoke, starting complaints, vibration, cooling faults, and fuel contamination of crankcase oil.

Drawings include the Fuel System Schematic, Air-to-Air Aftercooled Schematic, Air Inlet and Exhaust System Schematic, and Lubrication System Schematic. Electrical references add solenoid and circuit-breaker schematics; compressor sections include Tu-Flo exploded views.

These are component and engine-system references. The set is not a full truck chassis wiring or transmission repair manual; Allison AT540, MT643, and MT653 coverage is limited to engine mounting-group specifications.

A Preview of Aftercooler and Thermostat Test Data

For the air-to-air aftercooler leakage test, the 2Z service volume specifies a test pressure of 205 kPa (30 psi), with a maximum pressure drop of 35 kPa (5 psi) in 15 seconds.

The operation and maintenance volume’s thermostat bench test, conducted at atmospheric pressure, specifies initial opening at approximately 80–84°C (176–183°F) and full opening at approximately 90–94°C (194–201°F).
