1996 Jeep Grand Cherokee Laredo, Limited & SE Repair Manual

Complete service manual covering 4.0L & 5.2L engine, suspension, brakes, and drivetrain. PN 81-370-6147

4.5starstarstarstarstar_half(4)
visibility Preview Available

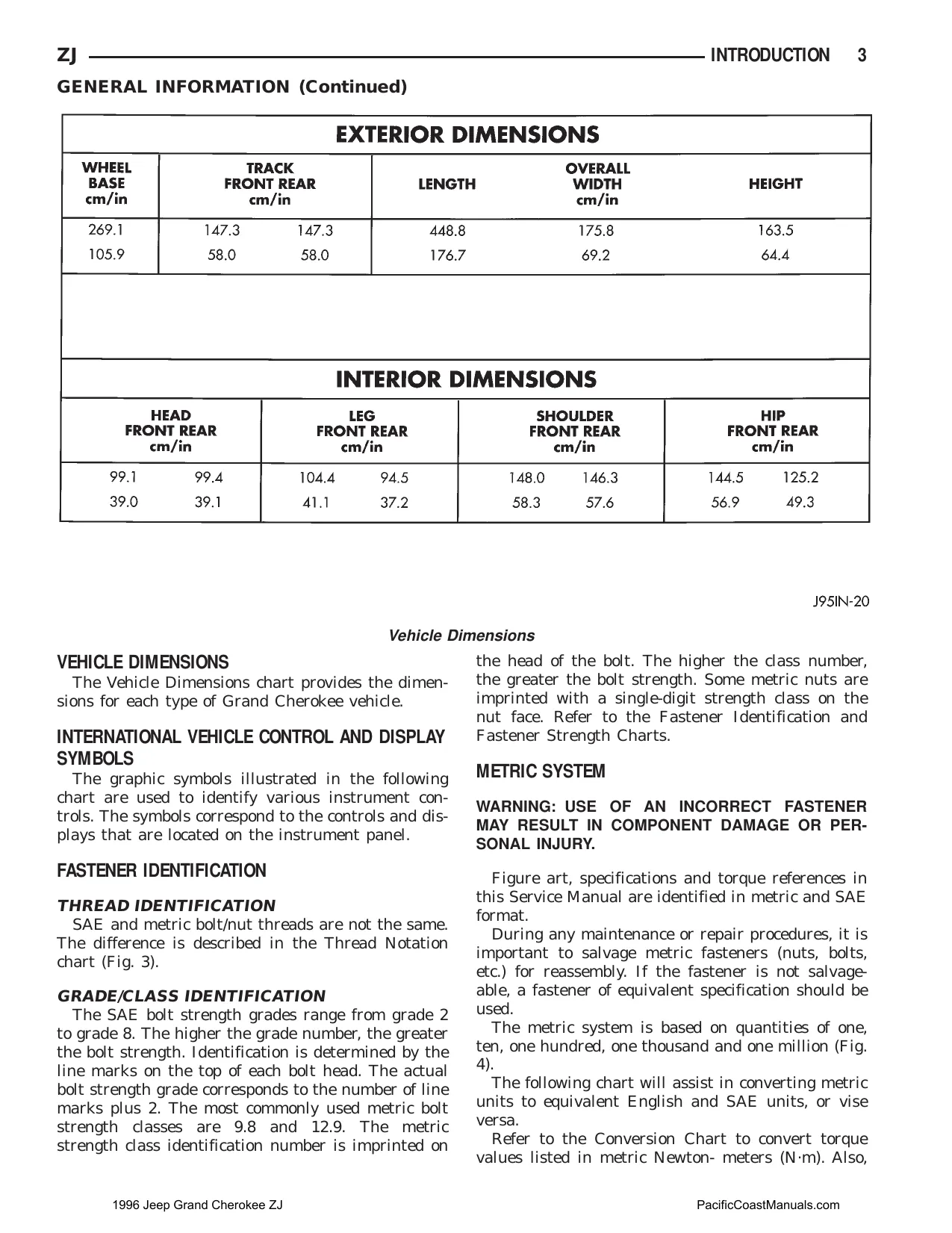

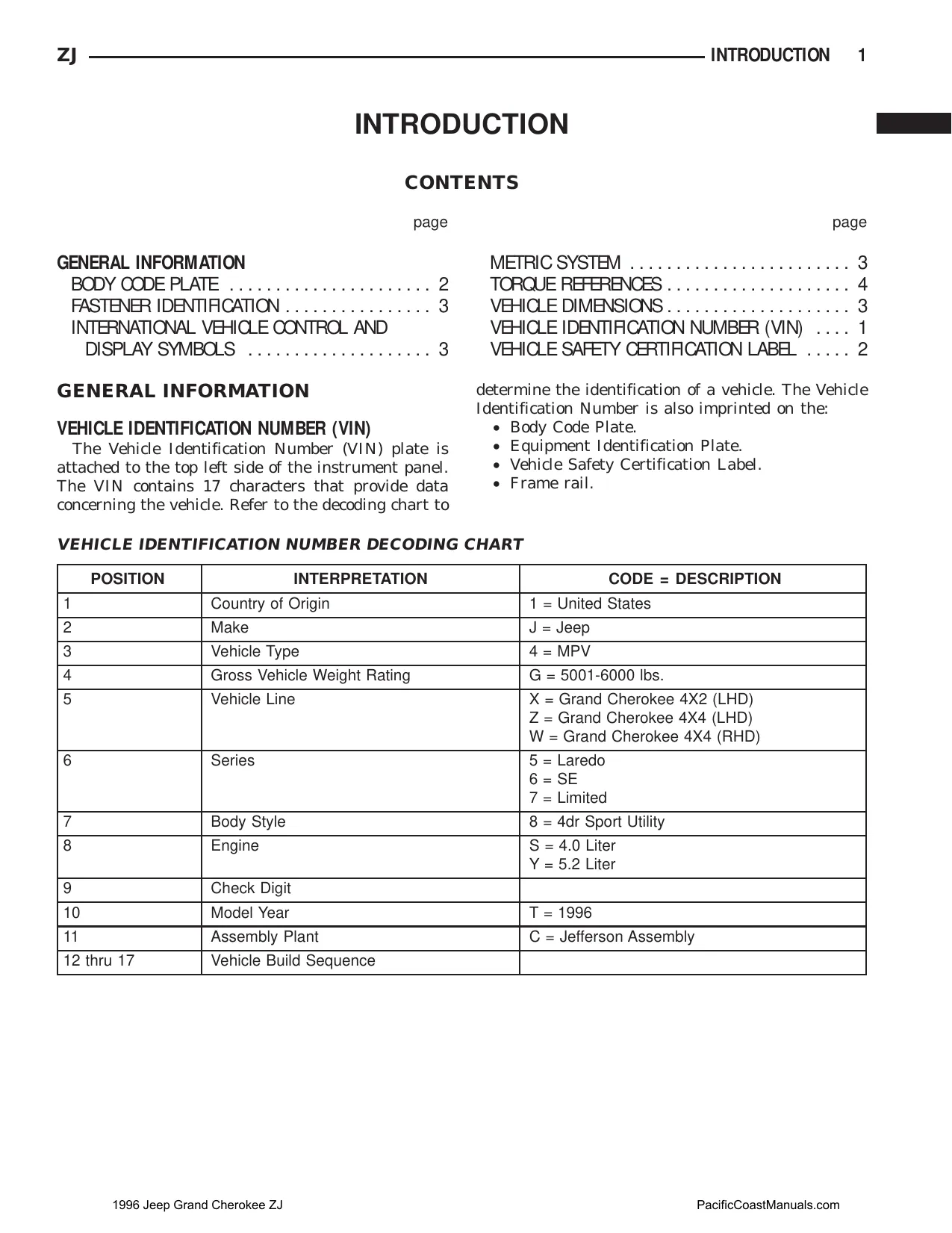

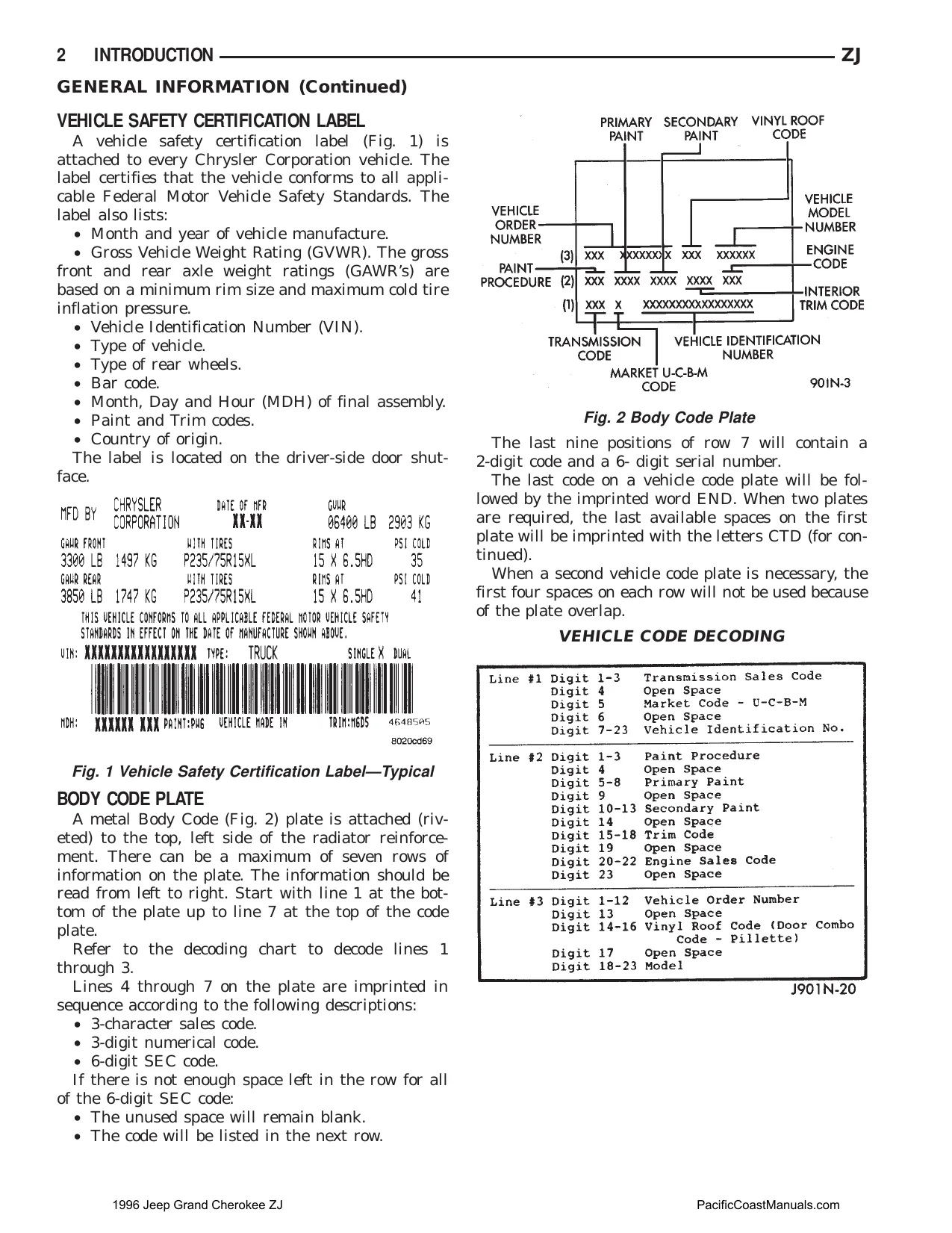

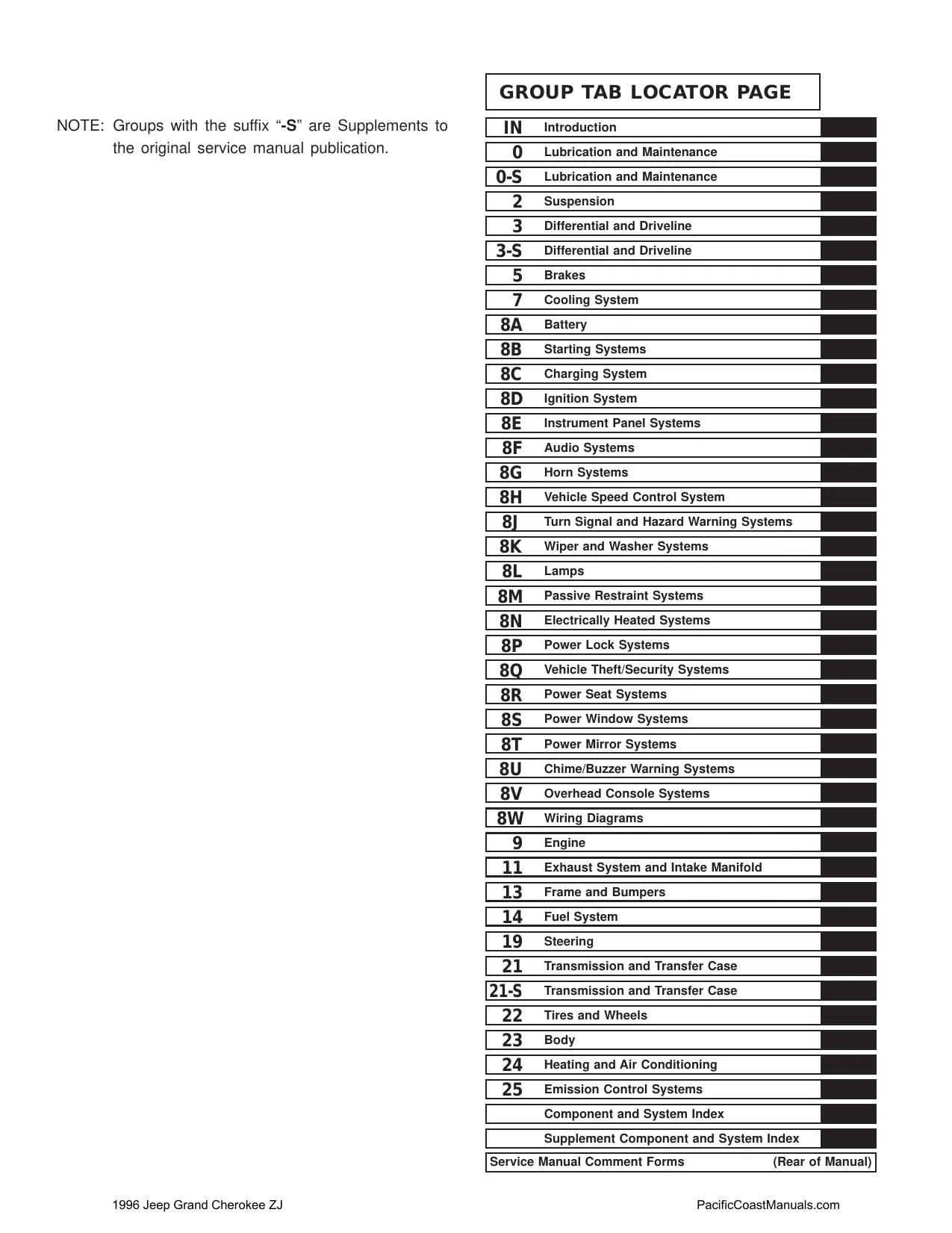

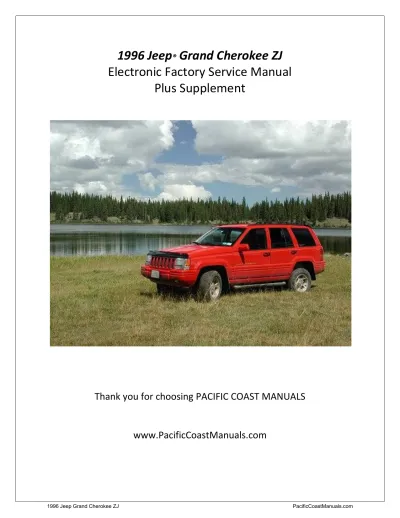

Jeep 1996 Jeep Grand Cherokee Laredo, Limited & SE Repair Manual manual page preview - page 1 of

Sample pages from the 1996 Jeep Grand Cherokee Laredo, Limited & SE Repair Manual manual

Jeep 1996 Jeep Grand Cherokee Laredo, Limited & SE Repair Manual manual preview page 1 - thumbnail
Jeep 1996 Jeep Grand Cherokee Laredo, Limited & SE Repair Manual manual preview page 2 - thumbnail
Jeep 1996 Jeep Grand Cherokee Laredo, Limited & SE Repair Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$17.85 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Jeep Models Covered & Key Technical Specifications

Models: 1996 Jeep Grand Cherokee ZJ (Laredo, Limited, SE)
Sub-models / Variants: 4x2, 4x4, LHD (Left Hand Drive), RHD (Right Hand Drive)
Build Years: 1996
Serial Numbers: Jefferson Assembly Plant (C)
Technical Data:

  • Engine Options: 4.0 Liter, 5.2 Liter
  • Gross Vehicle Weight Rating: 5001–6000 lbs
  • Rear Axle Shaft Bolt Torque: 27 N·m (20 ft. lbs.)
  • Upper Suspension Arm Bolt Torque: 75 N·m (55 ft. lbs.)
  • Pinion Nut Torque: 298–380 N·m (220–280 ft. lbs.)
  • Ring Gear Backlash: 0.13 mm (0.005 in.)
  • Fuel Tank Capacity: 87.4 L (23 gal.)
  • Front Brake Caliper Bolt Length (Minimum): 67.6 mm (2.66 in.)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29927 / Mark Lewis
File Size:
46.14 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
SUV
Last updated / verified
Jun 28, 2025

Jeep Manual Features & Content Preview

Official 1996 Jeep Grand Cherokee ZJ Service Manual

  • Covers 1996 Jeep Grand Cherokee ZJ Laredo, Limited, and SE trims with 4.0L and 5.2L engine configurations and 4x2 or 4x4 drivetrain options
  • Official OEM publication No. 81-370-6147, April 1996 printing
  • Contains 53 detailed exploded-view diagrams and 6 specialized axle-service torque tables
  • Delivered as a direct download the moment payment clears
  • File resolution preserves exploded-view detail for shop-floor printing
  • Indexed PDF search covers every chapter and appendix
  • This specific edition is the factory-authorized reference for 1996 ZJ-series body and mechanical systems, including the unique Model 30 and Model 35 axle configurations

Drivetrain and Suspension Coverage

The 1996 Jeep Grand Cherokee ZJ service manual details the lubrication, maintenance, and structural requirements for the link/coil suspension design. It includes comprehensive instructions on axle shaft replacement, hub bearing assembly, and differential servicing. The document provides clear guidance on internal component identification, including pinion gear depth specifications and gear tooth contact pattern analysis, alongside specific service procedures for the Selec-Trac system and Trac-Lok limited-slip differentials.

Specification and Reference Data

Technical data includes extensive charts for fastener strength, torque requirements, and fluid capacities. Coolant system capacity for the 5.2L engine is documented at 14.1 liters including the recovery bottle. The required pinion nut torque is documented at 298–380 N·m (220–280 ft. lbs.) in the differential service data. Ring gear backlash is specified at 0.12–0.20 mm in the differential assembly section. For more information on how factory workshop documentation is structured, visit our resource center. This 1996 Jeep Grand Cherokee ZJ manual is an official OEM publication covering vehicle identification, lubrication schedules, suspension component maintenance, and complete differential repair procedures for the ZJ platform.

Manual FAQ, Purchase & Download Details

Which chapters contain the fluid capacity tables for the 1996 Grand Cherokee? keyboard_arrow_down

Lubrication and Maintenance chapter contains specific specification tables that list fluid capacities for systems including the fuel tank, engine oil, cooling system, and transmission.

Are tightening specifications and fastener identification charts included for the suspension and engine components? keyboard_arrow_down

Manual includes fastener identification charts that describe grade, class, and thread notation for SAE and metric hardware. Individual torque charts are provided at the end of many groups to reference standard tightening specifications for various assemblies.

Is there information in the manual that includes exploded views or parts illustrations for the vehicle systems? keyboard_arrow_down

Document contains numerous illustrations and figures, such as the body code plate and jumper cable connection diagrams, to assist with component identification. While the manual focuses on service and maintenance data, it provides various schematic references throughout the group sections. These visual aids are intended to support the understanding of component locations and configurations.

What electrical reference data and wiring diagrams are listed in the manual? keyboard_arrow_down

Publication includes an extensive listing of electrical sections such as 8A through 8W, which covers systems like starting, charging, ignition, and includes dedicated references for wiring diagrams.

Does the document provide publication edition cues or supplements for the 1996 Jeep Grand Cherokee? keyboard_arrow_down

Manual is identified as an electronic factory service manual and includes references to supplemental groups, marked with an S suffix, for the original publication. These indicators help differentiate the core service information from the specialized supplement content.
