2001 Honda EU20i / EU201 Generator Service Manual

Technician-level documentation for Honda EU20i & EU201 generators, detailing maintenance, electrical systems, and troubleshooting. Publication 66Z0700.

4.5starstarstarstarstar_half(4)
★ TOP SELLER
visibility Preview Available
Honda 2001 Honda EU20i / EU201 Generator Service Manual manual page preview - page 1 of 104

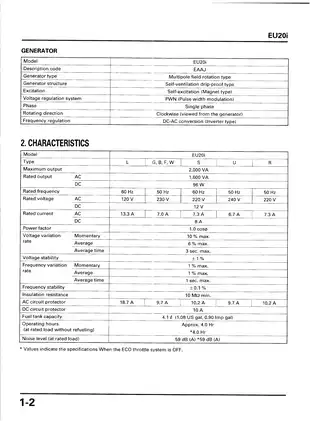

Sample pages from the 2001 Honda EU20i / EU201 Generator Service Manual manual

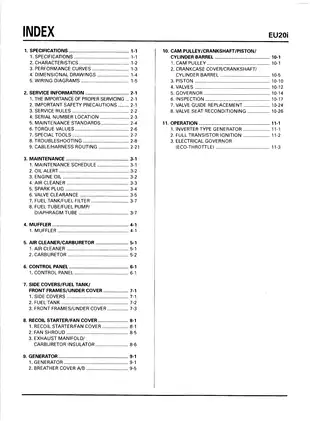

Honda 2001 Honda EU20i / EU201 Generator Service Manual manual preview page 1 - thumbnail

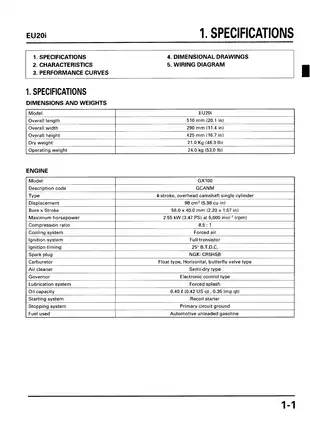

Honda 2001 Honda EU20i / EU201 Generator Service Manual manual preview page 2 - thumbnail

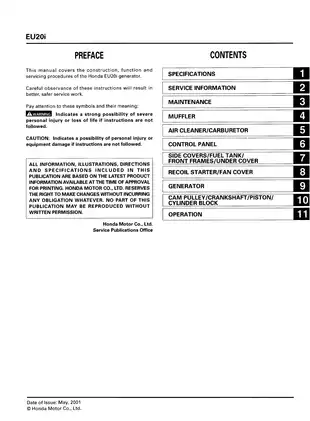

Honda 2001 Honda EU20i / EU201 Generator Service Manual manual preview page 3 - thumbnail
Honda 2001 Honda EU20i / EU201 Generator Service Manual manual preview page 4 - thumbnail
Honda 2001 Honda EU20i / EU201 Generator Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$12.89 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
43 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Honda Models Covered & Key Technical Specifications

Models: Honda EU20i
Sub-models / Variants: L, G, B, F, W, S, U, R
Build Years: 2001
Technical Data:

  • Engine: GX100 4-stroke, single cylinder, overhead camshaft
  • Displacement: 98 cc
  • Fuel tank capacity: 4.1 L (1.08 US gal)
  • Compression ratio: 8.5:1
  • Maximum horsepower: 2.55 kW (3.47 PS) at 5,000 min-1
  • Ignition system: Full transistor
  • Oil capacity: 0.40 L (0.42 US qt)
  • Generator type: Multipole field rotation, inverter type
  • Rated AC output: 1,600 W
  • Dry weight: 21.0 kg (46.3 lb)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29932 / Matthew Jones
File Size:
7.23 MB
File Type:
PDF
Language:
English
Pages:
104
Printable:
Yes
Category:
Generator
Last updated / verified
Apr 27, 2026

Honda Manual Features & Content Preview

Honda EU20i Generator Service Documentation

  • Covers 2001 Honda EU20i portable inverter generators, including L, G, B, F, W, S, U, and R type configuration variants
  • Official Honda publication dated May 2001, providing technical specifications and assembly reference data
  • Documents electrical characteristics, fuel system maintenance, and internal engine component clearances across 104 detailed pages
  • File delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Contains 47 exploded-view diagrams, 4 comprehensive wiring schematics, and detailed torque-specification tables
  • Reference only — always consult a certified technician before performing service on this equipment.

Internal System Maintenance

This 2001 Honda EU20i publication details the construction and functional maintenance of the generator unit. It provides technical sequences for service work on the GX100 engine block, focusing on the cam pulley, crankshaft, piston, and valve reconditioning. The manual covers essential diagnostic routines, including ignition system performance tests, voltage regulation checks, and throttle motor operations. Procedures for managing the inverter block, control panel, and air cleaner systems are documented alongside detailed fuel-pump and tank-filter cleaning requirements.

Specification and Reference Data

Technical data is segmented to assist with identification and verification of system tolerances. Valve clearance for the intake is listed at 0.15–0.20 mm in the cylinder head specification table. Cylinder compression for the engine is documented at 0.49 MPa (71 psi) at 700 min-1. The Honda EU20i magneto pick-up coil resistance for the ignition pulse generator is specified at 300–360 ohms. Torque values for critical fasteners, including the 12 mm rotor nut at 51 Nm, are listed throughout the technical chapters. Users can reference what an OEM service publication covers for a complete breakdown of the provided diagnostic and disassembly data. An official 104-page Honda OEM shop manual covering the 2001 EU20i, documenting engine, chassis, electrical, and inverter-based power generation specifications for the global product series.

Document Reference: Honda Motor Co., Ltd., May 2001
