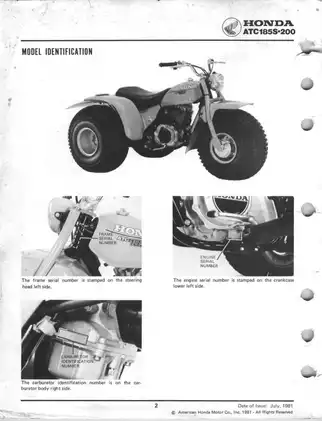

1980–1983 Honda ATC185 / ATC185S & ATC200 ATV Shop Manual (P/N 6195803)

Honda shop manual P/N 6195803, revised through August 1982, covering the 1980 ATC185 and 1981–1983 ATC185S/ATC200 three-wheelers. The model-year addenda update the base procedures and should be read alongside the applicable engine, chassis, and electrical sections.

PDF Search, Bookmarks and Diagram Detail

Search and wiring detail: OCR text supports searches through the main chapters and addenda, with recognition errors and gaps in illustration labels. Embedded bookmarks provide access to chapters, addenda, and their wiring diagrams. Small wiring labels require zooming; the 1983 diagram remains somewhat soft at higher magnification.

The single printable English PDF contains 228 pages: base-manual material and front matter (178), the 1981 addendum (16), the 1982 addendum (20), and the 1983 addendum (14). The total includes the cover, eight memo pages, and two blank pages.

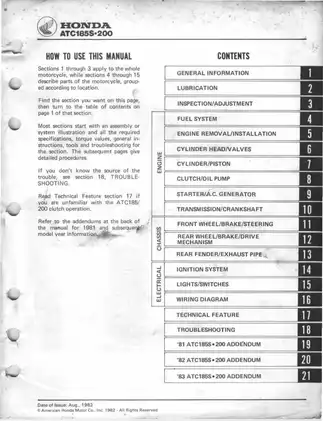

Engine Overhaul, Dual-Clutch Service and Chassis Repair

These are selected topics from the manual; additional material covers rear-fender and exhaust-pipe removal, plus spark-arrester cleaning.

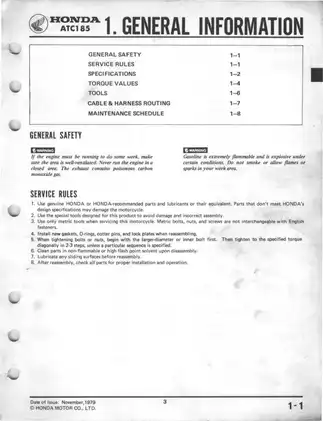

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft timing, and cylinder/piston inspection.

• Clutch and transmission: Centrifugal and manual clutch overhaul, oil-pump inspection, gearshift-linkage service, crankcase separation, and transmission assembly.

• Fuel and maintenance: Carburetor disassembly, float-level and pilot-screw adjustment, high-altitude calibration, air-cleaner service, and model-specific maintenance schedules.

• Wheels, brakes and steering: Wheel-bearing replacement, drum-brake inspection, rear-axle and final-driven-sprocket service, steering-stem bearings, and front-fork procedures.

• Recoil starter: Ratchet, rope, pulley, and spring inspection, with additional decompression-system service in the 1982 addendum.

• Electrical diagnosis: Ignition-coil, CDI, pulser-generator, and A.C. generator checks, switch-continuity tables, wiring diagrams, and symptom-based troubleshooting charts.

This manual is suited to mechanics familiar with standard workshop practice; internal repairs call for appropriate measuring equipment and the specified service tools.

Engine Inspection and Dual-Clutch Operation

Factory tolerances, component-specific torque charts, and inspection procedures provide a workbench reference for assessing wear and checking reassembly. Step-by-step procedures cover crankcase separation, transmission disassembly, cylinder-head work, and overhaul of both clutch assemblies.

Inspection depth: Camshaft journals, rocker arms, valve guides, piston rings, shift forks, and crankshaft bearings receive individual checks. Tool references include valve-guide reamer 07984-0980000 and clutch center holder 07923-9580000.

The Clutch/Oil Pump assembly view and Technical Feature clutch illustration explain the relationship between the centrifugal clutch, wet multi-plate manual clutch, and one-way sprag used for engine braking. The centrifugal-clutch locknut has left-hand threads; forcing it in the wrong loosening direction risks thread damage.

Carburetor Service and Model-Year Changes

The fuel-system section covers throttle-valve and jet inspection, float-valve service, and final carburetor adjustments. Its high-altitude adjustment chart identifies changes to the main jet, needle position, and pilot-screw setting.

The 1982 table distinguishes the ATC185S PD35D carburetor from the ATC200 PD35C, while the 1983 addendum supplies separate calibration tables. These distinctions help match adjustment data to the actual configuration. Fuel-system work carries specific ventilation and ignition-source precautions.

Steering, Suspension and Rear Drive

Cable & Harness Routing drawings and steering-head bearing views support chassis reassembly. Rear-drive coverage includes sprocket dampers, bearing-holder service, brake-drum inspection, and axle installation.

1983 front suspension: The addendum provides fork disassembly, spring inspection, seal replacement, and reassembly procedures, distinguishing the ATC200 leading axle from the ATC185S trailing axle. Its fork procedure requires a hydraulic press.

The later sections also address the ATC200 sealed rear brake and O-ring drive chain, with the 1983 ATC185S referring to that service information. The chain precautions identify cleaning methods and solvents that can damage its seals.

Ignition Troubleshooting and Recoil Starting

Electrical sections combine component tests with Headlight Switch Continuity tables and wiring diagrams. The Engine Does Not Start or Is Hard to Start chart connects fuel delivery, spark, compression, and decompressor faults rather than treating every starting problem as a carburetor issue.

CDI testing specifies suitable test equipment because an unsuitable tester can produce misleading readings. Recoil-starter procedures warn that the return spring can leave the housing during disassembly and call for eye protection.

A Sample of Carburetor and Compression Data

For the base ATC185’s PD35A carburetor, the fuel-system specifications list a standard #95 main jet and a 12.5 mm float level. Later addenda provide their own model-specific calibration data.

The base ATC185 compression-test reference is 11 ± 1 kg/cm² (156 ± 14 psi), with the engine warm and throttle fully open. Related inspection tables distinguish standard dimensions from service limits for evaluating worn components.
