Honda FourTrax Foreman 500 4x4 ATV Service Manual (2012) (P/N 61HR000)
564 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Models & Model Codes: TRX500 (TRX500FM, TRX500FE, TRX500FPM, TRX500FPE)
Sub-models / Variants: 4WD/Left foot operated gearshift (FM), 4WD/Electric shift program (ESP) (FE), 4WD/Left foot operated gearshift/Electric Power Steering (EPS) (FPM), 4WD/Electric shift program (ESP)/Electric Power Steering (EPS) (FPE)
Model Year: 2012
-
Engine displacement: 475 cm³
-
Bore and stroke: 92.0 x 71.5 mm
-
Compression ratio: 9.5:1
-
Fuel system: PGM-FI (Programmed Fuel Injection)
-
Transmission: 5-speed constant mesh with reverse
-
Ground clearance: 194 mm (7.6 in)
-
Idle speed: 1,400 ± 100 rpm

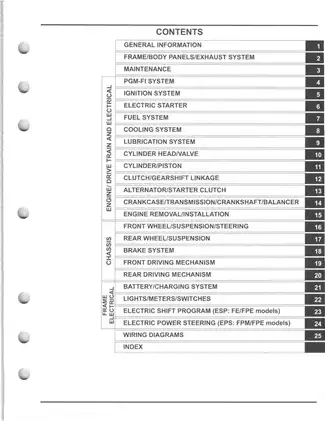

Honda Manual Features & Selected Content Preview

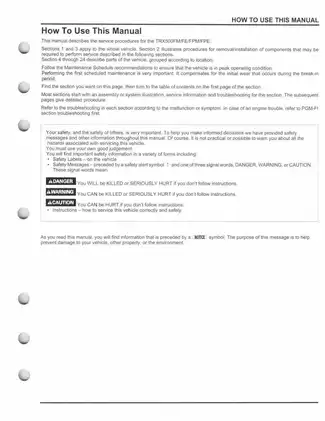

Honda’s 2012 factory service manual (P/N 61HR000) covers the FourTrax Foreman 500 TRX500FM, TRX500FE, TRX500FPM, and TRX500FPE, with service information for U.S. and Canadian models.
PDF Search, Bookmarks, and Wiring Detail
Text search and diagram navigation: OCR supports searches across the service text, though recognition errors can affect results. Embedded bookmarks link to the chapters, index, and each model’s wiring diagram. The four wiring diagrams are image pages. Small connector labels and wire codes need zooming, and scan seams obscure parts of a few switch-continuity labels.
The download contains one printable English PDF with 564 pages, including the cover, introductory material, index, 14 memo pages, and one otherwise blank page.
Engine, Final-Drive, and Electronic System Service
These selected service topics highlight the repair and diagnostic coverage. The manual also includes body-panel removal and spark-arrester maintenance.
-
PGM-FI and fuel delivery: Sensor and injector circuit tests, fuel-pressure and pump-flow checks, and throttle-position sensor reset.
-
Engine and transmission repair: Cylinder-head and piston service, clutch and gearshift-linkage repair, crankcase separation, and internal wear inspection.
-
Front and rear final drives: Bearing replacement, gear-backlash measurement, gear-tooth contact checks, differential inspection, and shim selection.
-
ESP and EPS diagnosis: Shift-angle sensor and shift-control motor testing, torque-sensor initialization, and steering control-unit diagnosis.
-
Chassis and brakes: Suspension and steering service, wheel-bearing replacement, front caliper and master-cylinder overhaul, front brake bleeding, and rear drum-brake service.
-
Cooling and lubrication: Thermostat and cooling-system pressure tests, coolant replacement and air bleeding, water-pump seal replacement, and oil-pump clearance inspection.
-
Electrical troubleshooting: Ignition and charging tests, electric-starter diagnosis and repair, meter and switch checks, and a wiring diagram for each model.

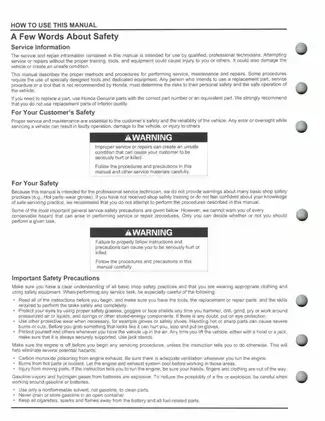

Honda wrote this manual for qualified service technicians with the training, tools, and equipment needed for the work.
Foot Shift, ESP, and EPS Configurations
All four variants have selectable 2WD/4WD.
| Model | Gear shifting | Steering |
|---|---|---|
| TRX500FM | Foot operated | Manual |
| TRX500FE | Electric Shift Program (ESP) | Manual |
| TRX500FPM | Foot operated | Electric Power Steering (EPS) |
| TRX500FPE | Electric Shift Program (ESP) | Electric Power Steering (EPS) |
Canadian-model procedures include recoil-starter service and testing for the condenser and power relay.
Internal Engine Repair and Service Planning
The longitudinal-engine chapters give step-by-step procedures for valve-guide replacement and valve-seat refacing. They also cover camshaft timing, automatic decompressor inspection, and separate service procedures for the centrifugal and wet multi-plate clutches.
The manual helps technicians plan the teardown. Cylinder and piston work can be done with the engine in the frame. Transmission and crankshaft service requires engine removal and crankcase separation, with procedures for inspecting the shift forks and drum and installing the crankshaft and balancer.
Torque tables and lubrication charts give tightening specs, clearances, and fluid capacities. Reference tables cover valve clearances, cylinder and piston wear limits, spark-plug gaps, and sensor resistance. Engine-oil quantities are listed for draining, filter replacement, and engine disassembly.
Differential, Driveshaft, and Chassis Details
Front differential procedures include face-cam assembly and limited-slip torque testing. Honda lists differential inspection tool 07KMK-HC5010A for U.S. use.
Front driveshaft coverage includes boot and inboard-joint service. A worn or damaged outboard joint requires replacement of the driveshaft assembly. Suspension procedures cover front ball joints and rear swingarm pivot bearings, with toe-alignment checks in the maintenance chapter.
PGM-FI, ESP, and EPS Fault Tracing
Symptom charts cover no-start, stalling, and rough running. Diagnostic trouble code (DTC) procedures, connector views, and circuit checks help isolate sensor, wiring, fuel-delivery, and control-module faults.
The PCM controls both fuel injection and electric shifting on ESP models. The EPS chapter describes reduced steering assist in fail-safe operation and identifies the repairs that require torque-sensor neutral-position initialization.
The manual covers blink-code retrieval with SCS service connector 070PZ-ZY30100 and diagnosis with the HDS pocket tester. The PGM-FI, ESP, and EPS indicators report main codes. HDS provides subcode detail.
System Diagrams and Repair Cautions
Illustrated references include the PGM-FI, ESP, and EPS system diagrams, the cooling-system flow diagram, and the lubrication diagram. The model-specific wiring diagrams show wire colors, connector IDs, and switch-continuity tables.
The maintenance chapter warns that a backward oil filter can cause severe engine damage. The fuel-system chapter warns that cleaning internal throttle-body passages with wire can damage the throttle body.
Fuel-Pressure and Pump-Flow Specification Preview
For all four models, standard PGM-FI fuel pressure is 316–387 kPa (46–56 psi) at idle. The inspection distinguishes high-pressure pump or regulator faults from low-pressure conditions that call for fuel-supply checks.
The fuel-pump flow test calls for at least 125 cm³ in 10 seconds at 12 V, after a 30-minute idle warm-up. The separate pressure and flow checks help narrow down fuel-delivery faults.
