2006 Harley-Davidson Touring Models Service Manual

Official service and repair manual for the 2006 Harley-Davidson Touring FLHT, FLHR, FLTR, FLHX models. Includes detailed procedures, diagrams, and specifications. Part number 99483-06.

4.6starstarstarstarstar_half(5)
visibility Preview Available
Harley-Davidson 2006 Harley-Davidson Touring Models Service Manual manual page preview - page 1 of 1418

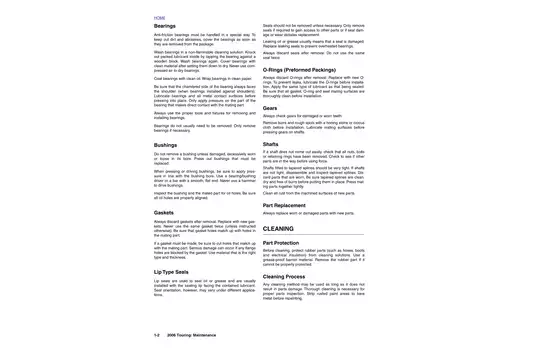

Sample pages from the 2006 Harley-Davidson Touring Models Service Manual manual

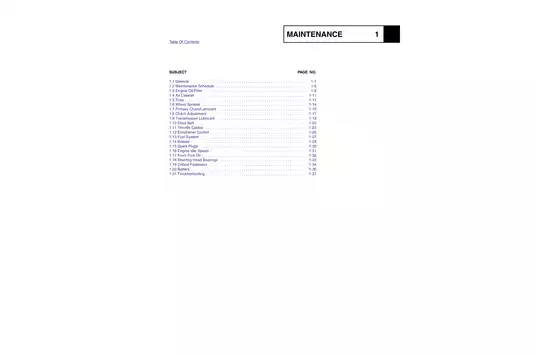

Harley-Davidson 2006 Harley-Davidson Touring Models Service Manual manual preview page 1 - thumbnail

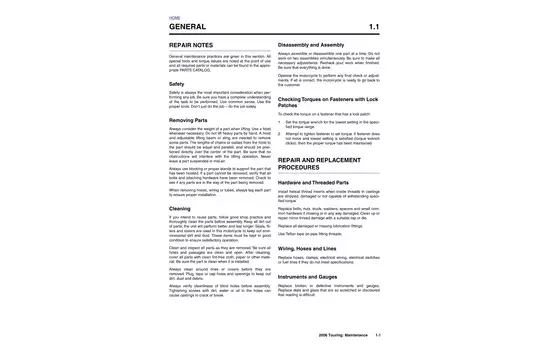

Harley-Davidson 2006 Harley-Davidson Touring Models Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$18.25 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Harley-Davidson Models Covered & Key Technical Specifications

Models: Touring FLHT, FLHR, FLTR, FLHX, FLHTCUSE
Sub-models / Variants: FLHXI, FLHT/C/U/I, FLTRI, FLHR/C/S/I, FLHX, FLHT, FLHR, FLTR
Trade Names: Touring Models
Build Years: 2006
Serial Numbers: 1HD1DJV136Y110000 (Sample)
Technical Data:

  • Engine idle speed: 950–1050 rpm
  • Engine oil capacity: 4 quarts (3.8 liters)
  • Primary chaincase lubricant capacity: 32 ounces (946 ml)
  • Transmission lubricant capacity: 20–24 ounces (590–710 ml)
  • Spark plug gap: 0.038–0.043 in. (0.97–1.09 mm)
  • Front tire pressure (solo): 36 psi (2.5 bar)
  • Rear tire pressure (rider + passenger): 40 psi (2.8 bar)
  • Minimum brake pad thickness: 0.04 in. (1.02 mm)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29971 / Robert Martinez
File Size:
52.95 MB
File Type:
PDF
Language:
English
Pages:
1418
Printable:
Yes
Category:
Motorbike
Last updated / verified
Nov 9, 2025

Harley-Davidson Manual Features & Content Preview

2006 Harley-Davidson Touring Service Documentation

  • Covers 2006 Harley-Davidson Touring FLHT, FLHR, FLTR, and FLHX motorcycles including fuel-injected and carbureted variants
  • Original OEM publication P/N 99483-06, 99497-06, and 99500-06 for the FLHTCUSE supplement
  • Contains 56 detailed diagrams and 8 comprehensive torque specification tables
  • Delivered as a direct download the moment payment clears
  • Full-text search finds any part number in seconds
  • This 2006 service documentation is the primary reference for the Touring model year build, detailing critical service intervals and alignment procedures for the complete chassis and drivetrain.

Manual Walkthrough

The 2006 Harley-Davidson Touring service manual provides structured technical data for the maintenance and repair of the Touring model lineup. The opening chapter outlines safety guidelines, tool usage, and general maintenance schedules, followed by detailed sections for chassis components, engine systems, electrical diagnostics, and fuel injection management. The document covers the removal and installation of major assemblies, including front and rear wheels, brake systems, and engine mounts, with specialized procedures for aligning the powertrain to the frame using the factory alignment tool.

Specification Highlights

Technical data includes comprehensive torque tables and fluid capacity specifications for all Touring models. Engine idle speed for the 2006 Touring is documented at 950–1050 rpm. Primary chaincase lubricant capacity is 32 ounces (946 ml), while transmission oil capacity is specified at 20–24 ounces. Reference the factory workshop manual guidelines to understand how the torque tables for the axle nut, swingarm bracket, and master cylinder are categorized for accurate shop-floor use.

Reference only — always consult a certified technician before performing service on this equipment.

An official 1418-page Harley-Davidson OEM service manual covering the 2006 Touring FLHT, FLHR, FLTR, and FLHX, documenting engine, chassis, electrical, and fuel-injection specifications for the complete touring lineup.
