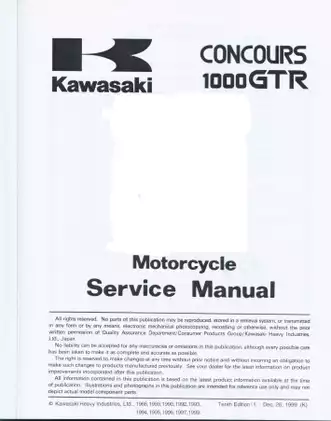

1986–2000 Kawasaki Concours / 1000GTR Service Manual (P/N 99924-1065-10)

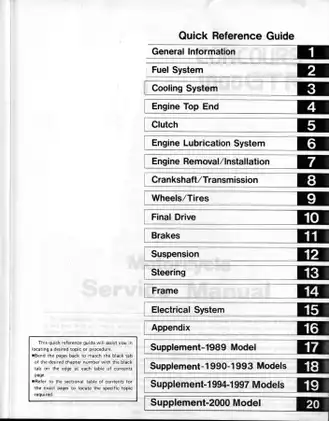

This Kawasaki Concours / 1000GTR Service Manual for 1986–2000 is publication P/N 99924-1065-10, Tenth Edition (1), dated December 26, 1999 (K). It combines the main workshop chapters with integrated model supplements for the ZG1000 series.

• Fuel and cooling systems: Keihin CVK32 carburetor synchronization, fuel level checks, US high-altitude adjustments, California evaporative emission controls, cooling system pressure testing, and water pump inspection.

• Engine and lubrication: Compression testing, valve clearance adjustment, camshaft timing, cylinder head overhaul, valve seat repair, piston inspection, and oil pump service.

• Clutch and transmission: Hydraulic clutch master and slave cylinder service, clutch plate inspection, crankcase separation, bearing selection, and shift drum and fork checks.

• Final drive, wheels, and tires: Bevel gear backlash, bearing preload, tooth contact inspection, propeller shaft service, wheel bearing checks, and tire replacement procedures.

• Brakes, suspension, and steering: Master cylinder and caliper overhaul, brake bleeding, pneumatic fork service, Uni-Trak linkage inspection, steering bearing adjustment, and frame component removal.

• Electrical diagnosis: Charging system tests, ignition and starter checks, lighting circuits, junction box inspection, gauge and sensor tests, and market-specific wiring diagrams.

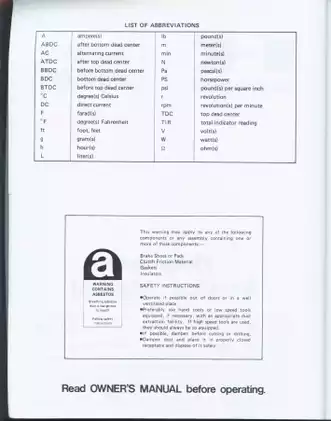

Written primarily for trained mechanics in an equipped workshop, the manual also supports basic maintenance and repair by owners familiar with mechanical principles, tool use, and workshop procedures.

Model Supplements and Market Differences

The supplements are used with the preceding workshop chapters. They document changes affecting carburetor specifications, engine assembly, chassis components, and electrical equipment, including updates for ZG1000-A3, ZG1000-A9, and ZG1000-A15 configurations.

US, California, Swiss, and other market references distinguish equipment and settings that are not universal across the range. These distinctions help identify the applicable carburetor data, emission hose routing, and wiring diagram before assessing a fault or planning repairs.

Carburetor Checks and Illustrated System Routing

The fuel system chapter pairs adjustment procedures with float, diaphragm, and carburetor inspection criteria. Its vacuum gauge and fuel level gauge references identify the specialized equipment needed for those checks.

Radiator water hose routing, evaporative emission control hose diagrams, and the Engine Oil Flow Chart show connections and flow paths that are difficult to establish from component lists alone. Camshaft chain timing illustrations and valve seating patterns provide visual references for engine assembly and cylinder head assessment.

Engine Assembly and Clutch Revision Details

The engine chapters distinguish inspection limits, bearing selection, tightening sequences, and lubrication requirements. Cylinder head fastener instructions also distinguish new and reused bolts, so isolated torque figures do not replace the applicable assembly notes.

Clutch illustrations identify the spacer and later two-washer arrangements. The transmission chapter covers gear engagement components, while the final drive section relates backlash and tooth contact checks to bevel gear setup.

Warnings address damage to the nonreturn camshaft chain tensioner and chain through incorrect handling. The manual also explains that misplaced camshaft caps can cause seizure because their clearances depend on correct positioning.

Workshop work involves heavy components and flammable fluids; suitable lifting equipment, ventilation, and the manual’s safety precautions remain essential.

Electrical Tests and Chassis Service

Electrical troubleshooting includes alternator output faults, ignition components, starter motor inspection, and junction box relay and diode checks. Wiring diagrams distinguish the circuits used by different markets and model revisions.

Chassis procedures extend from brake hydraulic components and steering bearings to fork seals, rear suspension linkage bearings, fairings, fenders, and rear frame removal. Exploded views identify assembly order, lubrication points, and fasteners associated with each operation.

Compression, Valve Clearance, and Coolant Examples

The main engine chapter specifies compression of 885–1,350 kPa at 300 rpm, with the engine warm and the throttle fully open. These conditions are part of the reference specification.

For the same base engine procedures, intake valve clearance is 0.13–0.18 mm with the engine cold, at room temperature.

The cooling system reference gives a total coolant quantity of 3.1 L up to the reservoir’s “U” mark. Model supplements provide the changes applicable to later configurations.

PDF Navigation, Diagram Readability, and Included Pages

Text search and diagram access: The PDF has no searchable text layer. Page bookmarks use image filenames rather than descriptive chapter titles. Small wire codes and switch-table labels in the earlier diagrams can remain difficult to distinguish when enlarged; the A15 diagrams are clearer. The supplied file skips printed page 19-11 between pages 19-10 and 19-12.

The download contains one printable English-language PDF with 310 pages: eight opening pages, 257 main workshop pages, 44 integrated supplement pages, and the back cover containing the model application table.
