Case 580CK Model B Backhoe Loader 1980–1992 Service Manual
631 Pages • Printable PDF • 214.27 MB • Download
Case Models Covered & Key Technical Specifications
Models: 580CK Model B (580B)
Sub-models / Variants: Diesel (188D); spark ignition (188G, 159G); shared engine sections (148G); additional cylinder-head and valve coverage (201 spark ignition)
Model Years: 1980–1992 (1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992)
-
Engine types: 4-cylinder, 4-stroke cycle diesel and spark ignition (gasoline)
-

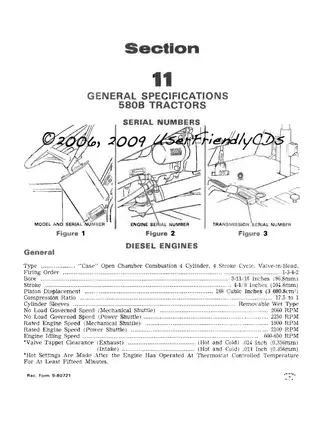

Diesel displacement: 188 cubic inches (3080.8 cc)
-
Drive systems: Mechanical Shuttle, Power Shuttle (Rockford or Twin Disc clutch pack), and Hydrostatic Drive
-
Fuel system: Roosa Master Model DB fuel injection pump (diesel); Zenith Model 267 updraft carburetor (188G and 159G) or Marvel-Schebler updraft carburetor (148G)
-
Cooling system: Pressurized thermostat controlled by-pass forced circulation
Case Manual Features & Selected Content Preview
This Case 580CK Model B (580B) service manual covers diesel and spark-ignition tractor, loader, and backhoe systems, with separate service information for mechanical shuttle, power shuttle, and hydrostatic drivetrains. Exact clearances and test data are only useful when they match the engine and system actually installed.
Text Search, Bookmarks, and Diagram Detail
Search and drawing readability: PDF text search is available through much of the manual, but some illustrated pages and charts have no searchable text. Embedded bookmarks link to the major sections. Small wiring labels require zooming; some accessory-harness connector numbers remain difficult to read even when enlarged.

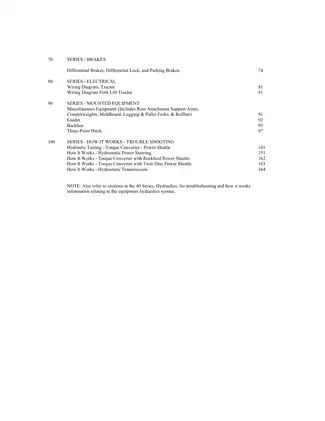

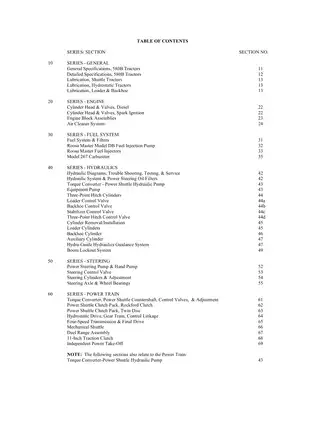

One printable 631-page PDF includes an added cover page, two contents pages, and an 11-page repeated Hydra-Guide passage within that total.
Engine, Hydraulic, and Drivetrain Repair Coverage
The following highlights are a selection of the manual’s contents. Further topics include air-cleaner restriction-indicator checks and miscellaneous mounted equipment.
-
Engine repair: Step-by-step cylinder-head and valve work, engine-block disassembly and assembly, piston and sleeve inspection, crankshaft service, and component-specific torque data.
-
Fuel systems: Roosa Master injection-pump removal, installation, and timing; injector testing and adjustment; Zenith carburetor overhaul and fuel shut-off solenoid checks.
-
Equipment hydraulics: Flowmeter testing, relief-valve adjustment, equipment-pump service, and repair information for loader, backhoe, stabilizer, and three-point hitch control valves.
-
Powertrain: Rockford and Twin Disc clutch-pack service, hydrostatic drive removal and adjustment, transmission and final-drive repair, mechanical shuttle, traction clutch, and independent PTO.
-
Steering and brakes: Power and hand pump service, steering control-valve and cylinder work, axle and wheel-bearing service, differential brakes, differential lock, and parking-brake adjustment.
-
Loader and backhoe: Attachment removal and installation, cylinder service, extendable-dipper work, return-to-dig adjustment, Hydra-Leveling, Hydra-Guide, and boom lockout systems.
-
Electrical references: Separate diesel and spark-ignition wiring diagrams, connector views, wire-color identification, and from-to tables for basic tractor and accessory circuits.
Suited to mechanics familiar with engine and hydraulic repair who have access to lifting equipment, precision measuring tools, and pressure-test equipment.
Engine Inspection and Variant-Specific Data
The engine-block chapter covers 188D diesel and 188G, 159G, and 148G spark-ignition engines. The additional 201 spark-ignition coverage belongs to the cylinder-head and valve chapter; it does not extend the engine-block chapter’s coverage.
Inspection information includes dimensional tolerances and clearances used to determine whether internal parts remain serviceable or require replacement. Sleeve wear, deglazing and honing, bearing fits, timing gears, and valve-seat work receive detailed treatment.
Cooling and lubrication material brings together thermostat checks, fan-belt adjustment, fluid capacities, filter intervals, and lubrication charts for shuttle and hydrostatic tractors.
Injection Equipment and Carburetor Service
The injector section includes fault isolation, opening-pressure and spray-pattern tests, servicing, and adjustment using a dedicated test stand. Zenith Model 267 procedures distinguish the 188G and 159G carburetor components and settings. Marvel-Schebler information for the 148G appears in the specifications.
The Roosa Master installation notes warn that burrs at the pump mounting faces can misalign the pump and cause seizure. The governed-engine-speed adjustments are expressly reserved for Authorized Case Dealers.
Hydraulic Fault Isolation and Component Repair
Flowmeter tests compare pump delivery with circuit performance to distinguish pump wear from valve or cylinder leakage. This gives the mechanic a documented basis for fault isolation before selecting components for repair.
Hydraulic drawings distinguish the loader with a 4-in-1 bucket, standard backhoe, and backhoe with an extendable dipper. Equipment-pump sections separate the Cessna D48950 and TRW D49241 pumps from the Webster D52271 used on drawbar tractors with a three-point hitch.
Hydra-Guide coverage includes operating diagrams, troubleshooting charts, trigger-poppet pressure checks, leakage tests, and pressure-sensing valve service. Boom lockout and cylinder sections provide associated component and installation information.
Driveline Adjustments and Attachment Work
Powertrain material includes clutch-pack assembly details, hydrostatic control-linkage and neutral adjustments, pressure checks, and troubleshooting. Separate operating diagrams explain oil flow through Rockford and Twin Disc power shuttles. Incorrectly seated hydrostatic connecting-link seals can damage the links during assembly.
Transmission and final-drive sections address bearing preload, differential backlash, axle configurations, and safety-start switch adjustment. Illustrated splitting instructions identify support points for separating the tractor assemblies.
Loader and backhoe sections cover removal, mounting, swing-tower and dipper work, and hydraulic hose arrangements. Trapped pressure must be relieved before lines, valves, or cylinders are disturbed, and loader or backhoe components must be securely supported before repair work begins.

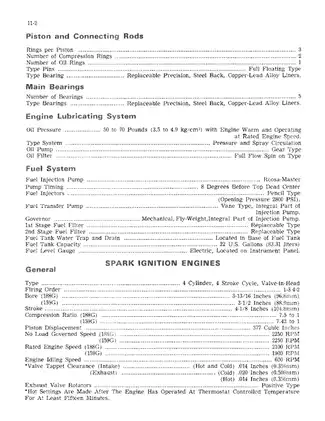

A Preview of Valve and Driveline Settings
Diesel valve adjustment: The 188D cylinder-head section specifies 0.014-inch intake and exhaust tappet clearance, hot or cold, alongside valve and guide inspection data.
Transmission and final drive: The specifications list 0.002–0.005-inch mainshaft bearing end play and 0.005–0.009-inch differential ring-gear-to-countershaft-pinion backlash. These are separate checks, supported by assembly illustrations and adjustment information.
