2004–2007 Honda FourTrax Rancher AT TRX400FA/TRX400FGA ATV Factory Service Manual

This Honda factory service manual covers the 2004–2007 TRX400FA FourTrax Rancher AT and TRX400FGA FourTrax Rancher AT GPScape, with mechanical repair procedures and electrical diagnosis for the standard and GPS-equipped configurations.

Text Search, Bookmarks and Wiring Detail

Search and diagram detail: OCR text search is available across the service chapters, although recognition errors and incomplete wiring-label recognition limit some searches. Embedded bookmarks provide chapter navigation and direct access to both wiring diagrams. Small schematic labels require zooming, and some fine connector lettering remains soft.

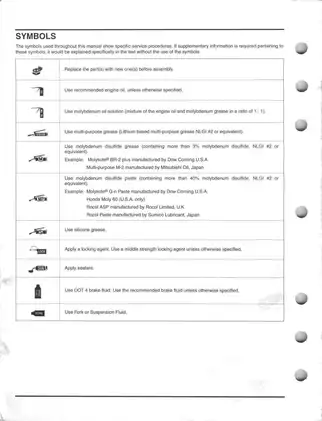

One printable English PDF contains 513 pages, including the cover, three introductory pages and ten memo pages.

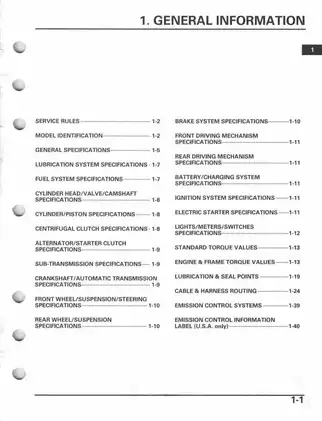

Engine, HONDAMATIC and Chassis Service

These selected topics outline the major workshop areas; fuel-strainer cleaning and accessory-socket testing are also included.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, piston inspection, and crankshaft service.

• Carburetor service: VE-type carburetor removal, disassembly, inspection and assembly, with pilot-screw adjustment, starting-enrichment valve checks, and high-altitude settings.

• Lubrication system: Oil-pressure testing, oil-pump inspection, pressure-relief valve service, and oil-cooler and cooling-fan removal and installation.

• Drivetrain service: Centrifugal-clutch repair, sub-transmission and gearshift-linkage service, automatic-transmission removal, and front differential and rear final-drive inspection.

• Brakes and chassis: Hydraulic brake bleeding, master-cylinder and wheel-cylinder overhaul, drum-brake service, steering-bearing replacement, and suspension and swingarm inspection.

• Electrical diagnosis: HONDAMATIC fault-code troubleshooting, ignition and charging tests, electric-starter overhaul, wiring diagrams, and cable and harness routing drawings.

• GPScape equipment: Navigation-meter operation, compass and automatic-clock functions, GPS receiver testing, communication-error diagnosis, and prolonged-startup troubleshooting.

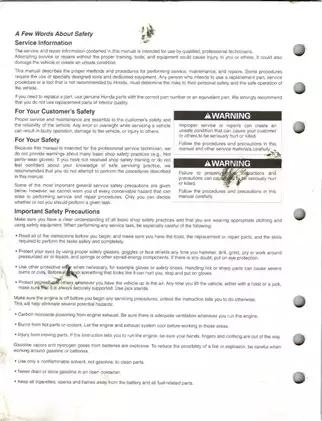

Honda wrote this manual for qualified professional technicians with the training, tools and equipment required for the procedures.

Engine Access and Internal Inspection

The component removal illustrations assist with repair planning and routine maintenance. Cylinder-head, valve and piston service is described with the engine installed, while crankshaft and automatic-transmission work requires engine removal and crankcase separation.

Step-by-step procedures cover valve-guide replacement, valve-seat refacing and crankcase bearing replacement. Inspection data addresses cylinder-head tolerances, piston dimensions, crankshaft condition, camshaft wear and balancer alignment.

Body-panel and exhaust removal instructions explain access to the engine and surrounding assemblies, with illustrations showing mounting points and component relationships.

Carburetor and Lubrication Details

Carburetor coverage extends to the vacuum diaphragm, jet needle, float valve, primer diaphragm and air cut-off valve. Float inspection specifies Honda gauge 07401-0010000, and the pilot-screw notes warn that overtightening can damage its seat.

The Lubrication System Diagram traces the oil circuit through the cooler, crankshaft and valve train. Related procedures cover oil-gallery pressure checks at idle and elevated engine speed, pump clearances and relief-valve inspection.

HONDAMATIC Diagnosis and Repair Scope

Separate mechanical and electrical diagnostic charts help distinguish lubrication, centrifugal-clutch and sub-transmission faults from sensor or control-circuit problems before drivetrain work is planned. The self-diagnostic explanation covers fail-safe operation, problem-code retrieval and code erasure.

Angle-sensor service includes mechanical preload and initialization after replacement. Initial setting is also specified after ECM or throttle-position sensor replacement and certain carburetor or throttle-cable work. The throttle-position sensor instructions warn that incorrect installation can damage the sensor.

Automatic-transmission scope: The manual covers removal, external functional inspection and installation of the complete unit. Honda expressly prohibits internal disassembly and specifies replacement of a faulty unit as an assembly.

Final Drives, Brakes and Suspension

Front differential procedures include limited-slip torque testing, shim selection, backlash measurement and illustrated gear-tooth contact patterns. Rear final-drive coverage adds pinion-bearing replacement, ring-gear clearance checks and assembly drawings.

The brake chapter distinguishes the hydraulic front drums from the mechanically operated rear drum. Suspension coverage reaches swingarm pivot bearings and shock-absorber mounting components, with special-tool references and torque-wrench leverage notes.

Because working with heavy ATV mechanical assemblies and pressurized fluids carries inherent physical risks, always follow proper workshop safety protocols and use appropriate protective gear.

Control Circuits and GPS Fault Tracing

The HONDAMATIC Circuit Diagram and Selectable 4WD System Diagram support connector and circuit checks. Separate Standard Type and GPS Type wiring diagrams show the configuration differences.

GPS diagnosis separates receiver communication faults from extended startup times through power, ground and backup-voltage checks. The ignition section includes timing verification; ignition timing is factory preset rather than adjustable.

A Preview of Engine Clearances and Mounting Torques

Valve-clearance inspection specifies 0.15 mm for both intake and exhaust with the engine cold. Crankshaft inspection gives a runout service limit of 0.05 mm.

The lubrication tables list 0.15 mm as the standard oil-pump rotor tip clearance. Engine-installation torque data specifies 54 N·m for the lower engine hanger bolts/nuts and the frame-side upper hanger bracket bolt; this is not a universal value for every engine mounting fastener.
