1976–1987 Kubota L185, L235, L245, L275, L285, L295, L305, L345, L355 Tractor Shop Manual (P/N K-201)

77 Pages • 32.48 MB • Printable PDFs (ZIP Download)

4.6starstarstarstarstar_half(5)
visibility Preview Available
$25.00 Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW

Cards and eligible digital wallets

verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
Stripe

Kubota Models Covered & Key Technical Specifications

Models: L185, L235, L245, L275, L285, L295, L305, L345, L355

Sub-models / Variants: 2WD, 4WD, Dual Stage Clutch, Single Plate Clutch, Shuttle Transmission, Mechanical Shuttle

Trade Names: L Series

Model Years: 1976–1987 (1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987)


  • Engine models: Z751A, D1102A, D1101A, D1302A, V1501A, D1301A, V1702A

  • PTO Power: 11.5 kW (15.45 HP) to 21.9 kW (29.35 HP)

  • Valve clearance: 0.18–0.22 mm (0.007–0.009 in.)

  • Injection timing: 25° BTDC

  • Crankshaft main journal diameter: 51.921–51.940 mm (2.0441–2.0449 in.)

  • Coolant system capacity: 5.3 L (5.6 qts.) to 7.0 L (7.4 qts.)

  • Transmission oil capacity (2WD/4WD): 22 L to 32 L

  • Alternator regulated voltage: 13.8–14.8 volts

Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30090 / Dorothy Henry
File Size:
32.48 MB
File Type:
ZIP
Language:
English
Pages:
77
Printable:
Yes
Category:
Tractor
Last updated / verified
Sep 3, 2026

Kubota Manual Features & Content Preview

  • Clymer/Penton Media Shop Manual K-201 covers Kubota L185, L235, L245, L275, L285, L295, L305, L345, and L355 tractors with two-, three-, and four-cylinder engine configurations.
  • Front-end coverage separates fixed- and adjustable-tread 2WD axles from front-wheel-drive assemblies, including axle removal, spindle and hub service, toe-in adjustment, outer-drive overhaul, differential setup, drive-shaft work, transfer-case repair, and steering diagnosis.
  • Clutch and transmission chapters cover tractor splitting, single- and dual-plate clutch repair, shifter rails and forks, front and rear transmission teardown, PTO drive service, L235/L275 mechanical shuttle linkage, and the L355 hydraulic shuttle valve and forward/reverse clutch packs.

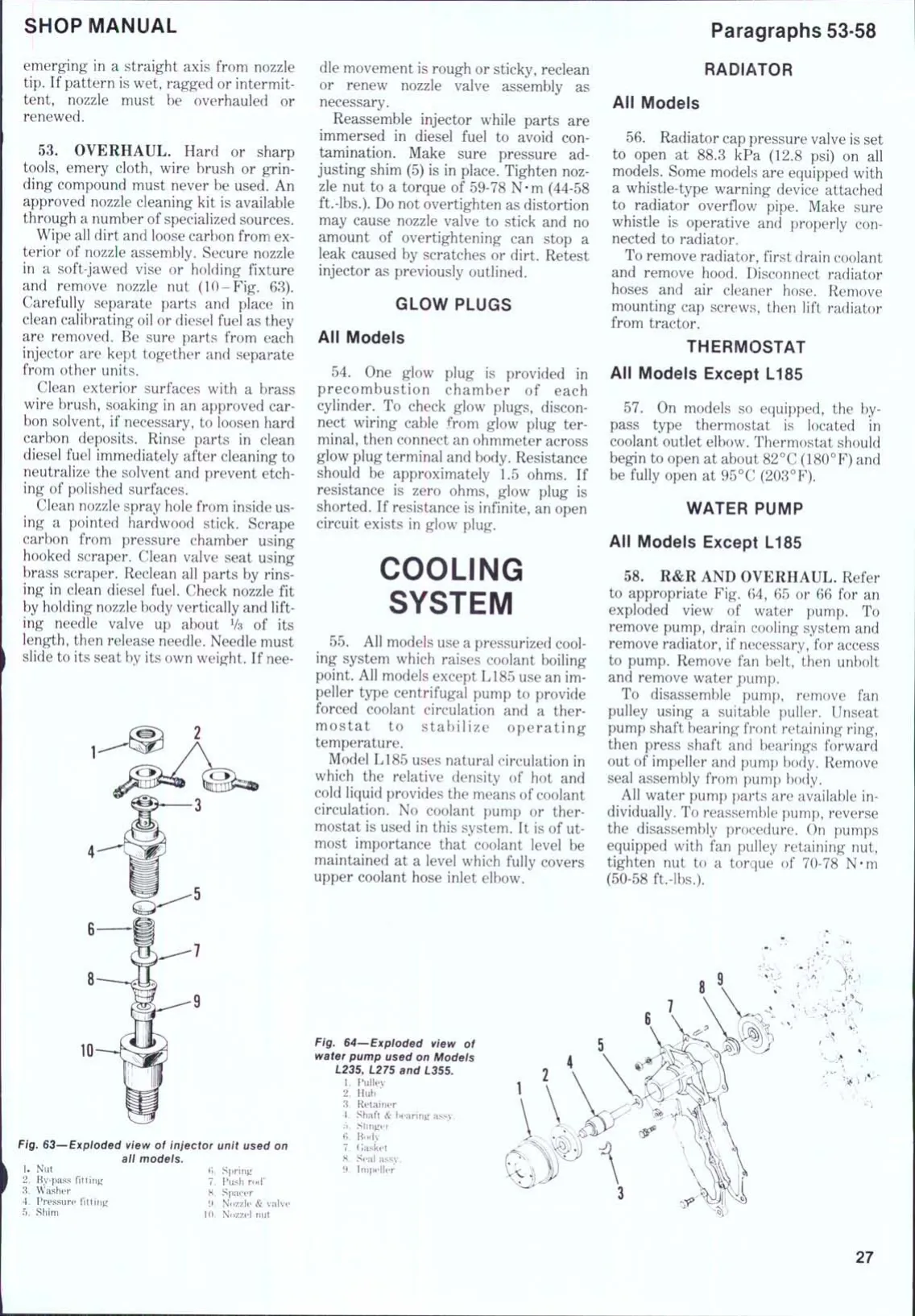

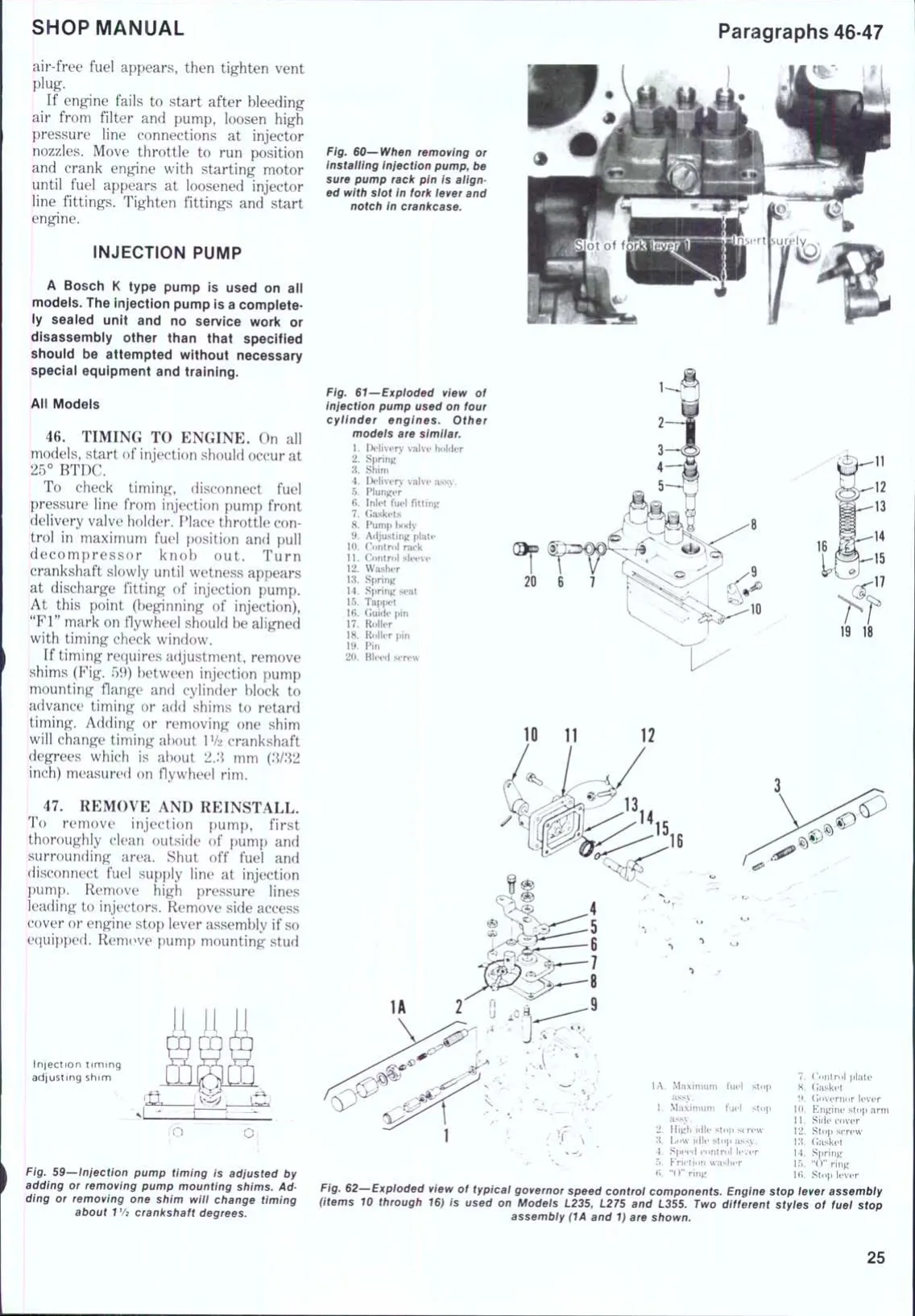

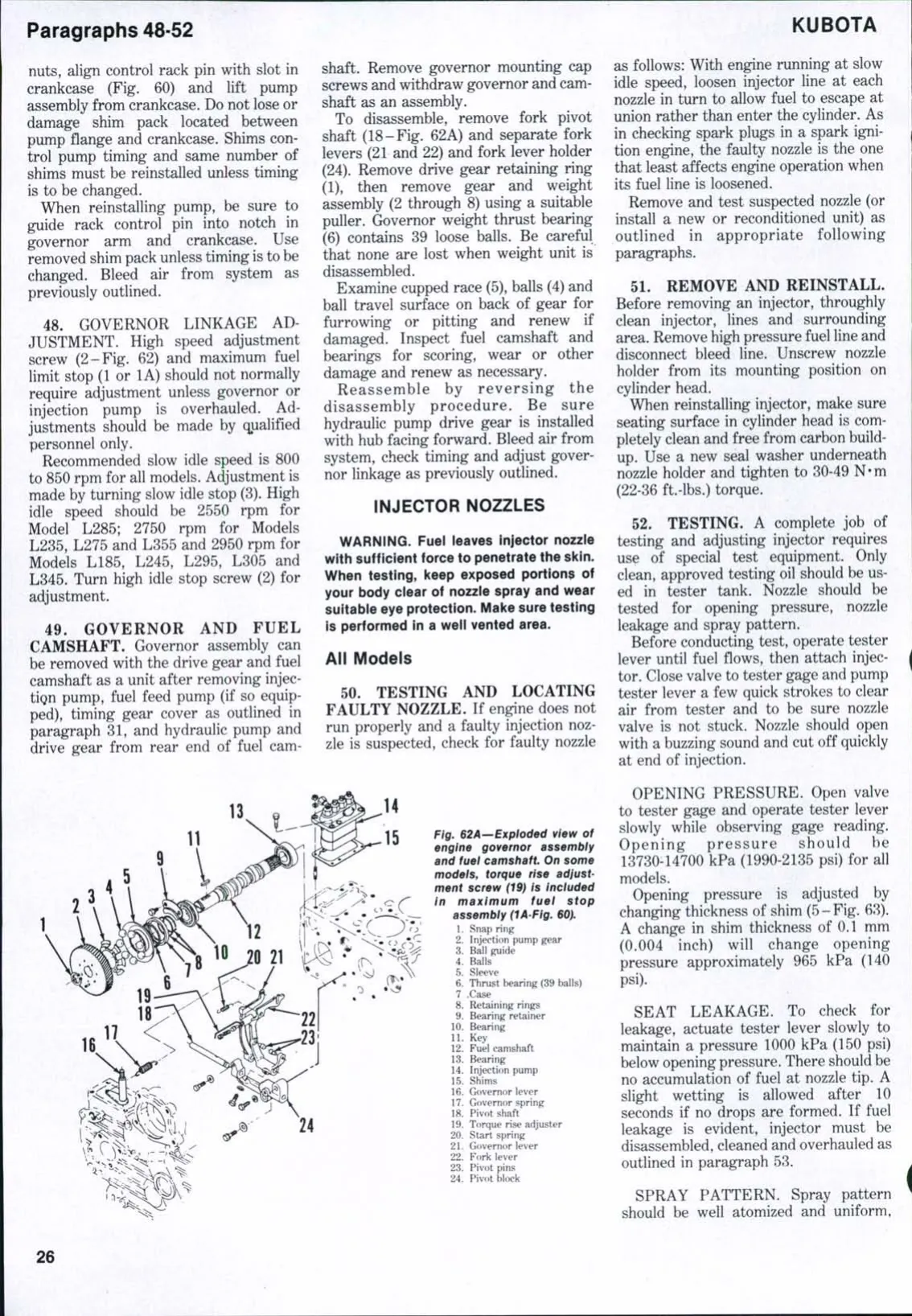

  • Diesel-fuel, cooling, and electrical sections include Bosch K-type injection-pump timing and removal, governor and injector service, fuel-system bleeding, water-pump repair, alternator/regulator testing, starter overhaul, glow-plug checks, and safety-start-switch adjustment.
  • Differential, final-drive, and brake chapters document bearing-preload, backlash, and tooth-contact inspection; differential-lock service; bull-gear and axle repair; wet-disc brake overhaul; and the L285 external dry drum-and-shoe brake.

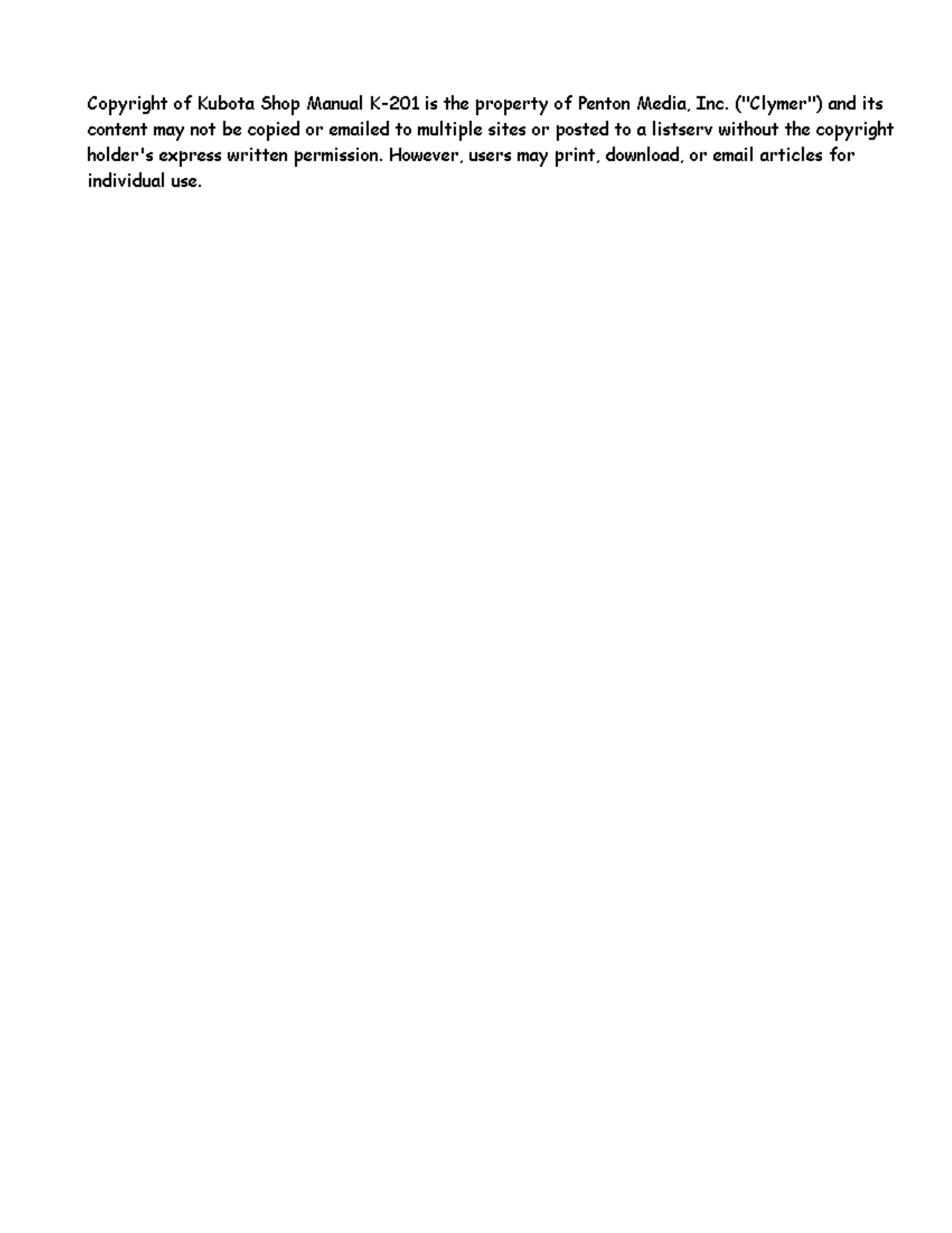

  • Supplied as 17 chapter PDFs totaling 77 file pages. Repeated copyright pages and overlapping chapter transitions reduce this to 48 unique numbered manual pages plus one copyright page. The exact missing sections are identified below.

Technical Breakdown and Model Variations

K-201 was published by Clymer/Penton Media; it is not a Kubota factory workshop manual. Engine assignments are L185/Z751A, L235/D1102A, L245/D1101A, L275/D1302A, L285 and L345/V1501A, L295 and L305/D1301A, and L355/V1702A. The condensed tables provide U.S. and metric reference data for tune-up work, internal dimensions and clearances, fluid capacities, adjustment data, and component-specific torque values.

The transmission chapters distinguish three arrangements. The L185, L245, L285, L295, L305, and L345 use a four-speed sliding-gear main transmission with high and low ranges for eight forward and two reverse speeds. The L235 and L275 add a mechanical forward/reverse shuttle; reverse is available through the first seven ratios, while eighth reverse is mechanically locked out. The L355 uses a hydraulically operated shuttle with forward and reverse clutch packs and control-valve testing.

Axle and steering coverage is configuration-specific. The 2WD front-system chapter applies to the L185, L235, L245, L275, L285, L295, L305, and L345, but not the L355; the FWD chapter covers every listed model except the L285. Manual steering applies to the L185, L235, L245, L275, L285, and L295, while power-steering sections cover the L235, L275, L305, L345, and L355. The L185 cooling system uses natural circulation without a thermostat or water pump; the other models use pressurized systems with thermostat and water-pump service.

Repair Procedures, Diagrams, and Specifications

Shop procedures include clutch-housing splits, clutch setup, transmission and shuttle overhaul, front-axle and final-drive repair, differential setup, injector bench testing, electrical-unit testing, steering pressure checks, and brake teardown. The manual identifies clutch service tool Code No. 07916-90050 and L355 shuttle-clutch tool Code No. 07916-52071. PTO overrunning-clutch service covers the L185, L235, L245, L275, L285, and L295; the L305, L345, and L355 sections cover PTO removal and installation without an overrunning-clutch chapter.

Illustrations include a cross-section of the FWD axle, an exploded manual-steering gearbox, steering-pump pressure-test layouts, transmission shift-rail and fork views, L355 shuttle control-valve and clutch-pack drawings, and ring-and-pinion tooth-contact patterns. Related tables cover torque specifications, pressure-test data, inspection limits, dimensional clearances, fluid capacities, and electrical test values.

Several repair cautions matter during teardown. Differential bearing cases and their shim packs must stay in their original positions; mixing them or changing total shim thickness can upset both backlash and bearing preload. The PTO sprag-type overrunning clutch must face the correct direction, since reversing it changes clutch action. Internal calibration of the sealed injection pump is outside normal field repair and requires specialized equipment.

Important Scope Limit

This download is a partial chapter set from Shop Manual K-201, not the complete book. The files contain printed pages 2-18 and 24-54. Printed page 1, the main Engine and Components material on pages 19-23, the continuation of the Hydraulic System chapter on pages 55-60, and the wiring diagrams listed for pages 61-64 are not included.

The set therefore provides only the closing engine material covering the rear crankshaft seal, flywheel, and oil pump, plus the opening hydraulic fluid/filter page and part of the lift-system troubleshooting chart. It should not be purchased as a full internal-engine overhaul, complete hydraulic repair, or wiring-diagram reference.

Support the tractor securely before axle removal or splitting work, relieve hydraulic pressure before opening the system, and use suitable ventilation and injection-test precautions when working with diesel fuel equipment.
