Kawasaki KX250F 2005–2009 Factory Service Manual (P/N 99924-1354-04)
393 Pages • Printable PDF • 7.85 MB • Download
Kawasaki Models Covered & Key Technical Specifications
Model: KX250F
Sub-models / Variants: KX250T6F, KX250T7F, KX250T8F, Europe Model (EUR)
Model Years: 2005–2009 (2005, 2006, 2007, 2008, 2009)
Beginning Frame No. (KX250T6F): JKAKXMTC□6A000001 or JKAKX250TTA000001
Beginning Frame No. (KX250T7F): JKAKXMTC□7A011001 or JKAKX250TTA011001
Beginning Frame No. (KX250T8F): JKAKXMTC□8A026001 or JKAKX250TTA026001
Frame-number notation: □ denotes the machine-specific digit.
-
Engine type: 4-stroke, single cylinder, DOHC 4 valve
-
Engine displacement: 249 cm³
-
Cooling system: Liquid-cooled
-
Compression ratio: 13.5 : 1
-
Carburetor: KEIHIN FCR-MX37
-
Transmission type: 5-speed, constant mesh, return shift
-
Drive system: Chain drive
-
Fuel tank capacity: 7.2 L (1.9 US gal)
-
Suspension (front): Upside down telescopic fork
-
Suspension (rear): New Uni-trak swingarm
Kawasaki Manual Features & Selected Content Preview

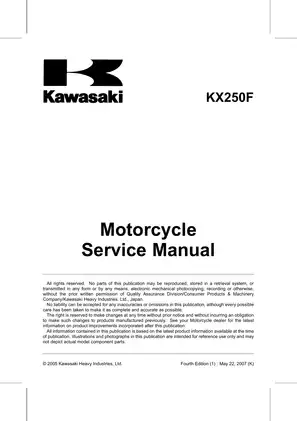

This Kawasaki KX250F factory service manual for 2005–2009 covers the KX250T6F, KX250T7F, and KX250T8F variants, including Europe-specific specifications. It is Kawasaki P/N 99924-1354-04, Fourth Edition, dated May 22, 2007.
Searchable Procedures and Bookmarked References
Text access and diagram detail: Procedure text is searchable, and embedded PDF bookmarks link to chapters, procedures, and specification tables. Labels within the wiring diagram and ignition troubleshooting flowchart are not searchable; small wire-color codes are readable when zoomed.

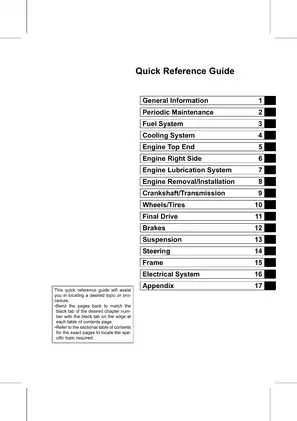

One printable, 393-page English PDF (7.85 MB). The total includes eight front-matter pages, six blank section-ending pages, and the model-application back cover.
Engine Rebuilds, Chassis Service, and Ignition Diagnosis
The following selected service topics show the manual’s repair depth. Other documented work includes muffler-baffle replacement and rear-frame removal.
-
Engine top end: Step-by-step procedures for cylinder-head removal, valve-clearance adjustment, camshaft timing, valve-guide and seat work, and piston replacement.
-
Crankshaft and transmission: Engine removal and installation, crankcase splitting, crankshaft inspection, gearbox-shaft assembly, shift-fork checks, clutch repair, and kickstarter service.
-
Fuel system: KEIHIN FCR-MX37 disassembly and assembly, float and service-fuel-level adjustment, accelerator-pump timing, and throttle and hot-start cable service.
-
Cooling and lubrication: Cooling-system pressure testing, radiator inspection, water-pump seal and bearing replacement, oil-pump inspection, and oil-pressure measurement.
-
Suspension and steering: Front-fork rebuilds, rear-shock overhaul, damping and preload adjustment, Uni-Trak linkage inspection, and steering-stem bearing replacement.
-
Brakes and wheels: Caliper and master-cylinder service, brake-line bleeding, disc inspection, wheel-bearing replacement, rim-runout checks, and chain and sprocket maintenance.
-
Electrical diagnosis: Digital AC-CDI testing, magneto-output and peak-voltage checks, ignition-timing inspection, throttle-sensor testing and position adjustment, and neutral-switch checks.
Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners with basic mechanical knowledge performing their own basic maintenance and repair.
Internal Engine Inspection and Assembly References
Factory tolerances and OEM routing layouts provide a workbench reference for comparing worn parts with service limits and checking assembly details. Separate transmission drawings distinguish the output-shaft collar arrangement on KX250T6F from KX250T7F onward.
The engine sections identify special tools such as Crankshaft Jig 57001-1174. Crankshaft rebuilding calls for a shop with the necessary precision equipment. Valve Seat Repair diagrams explain seating geometry, while the cylinder-wear section specifies replacement of an excessively worn plated cylinder rather than boring or honing.
The camshaft-chain section warns that retightening a partly loosened non-return tensioner can damage the tensioner and chain. The lubrication instructions also identify reversed oil-filter installation as a cause of blocked oil flow and engine seizure.
Carburetor Settings, Cooling Tests, and Oil Circulation
Jetting and needle-position tables distinguish standard and Europe configurations. The fuel-level inspection references the carburetor-body edge, giving the float adjustment a defined measurement point.
Cooling diagnosis includes radiator-cap relief testing and checks for external and internal leaks. The Lubrication System Chart traces the feed and scavenge circuits; the accompanying text explains how oil distribution between the separate chambers can produce a misleadingly low sight-glass reading.
Fork, Shock, and Linkage Service
The fork and shock sections specify SHOWA SS-05 and SS-25 oils, respectively, with model- and market-specific settings. Fork service covers seals, bushings, and cylinder-unit bleeding, while the base-valve assembly remains assembled during the documented work.
Rear-shock coverage extends to the piston, seal assembly, reservoir bladder, and oil bleeding. Brake and high-pressure rear-shock service require appropriate workshop equipment; consult a qualified technician if you are unsure of any procedure.
Ignition Fault Tracing and Routing Illustrations
The Wiring Diagram supplies wire-color codes and connector relationships. The ignition Troubleshooting Chart connects inspection results and peak-voltage findings with further checks, supporting fault isolation before components are replaced.
The appendix’s Cable, Wire, and Hose Routing illustrations show harness, coolant-hose, and brake-hose positioning. Its Troubleshooting Guide organizes common starting, running, shifting, and handling faults as a symptom-based reference.
Torque and Locking Agent tables cover five pages in Periodic Maintenance, supplemented by component-specific torque and assembly notes throughout the chapters.
Head-Bolt, Valve-Clearance, and Oil-Fill Examples
Cylinder-head installation specifies 49 N·m for M10 bolts, with molybdenum-disulfide oil on the threads and both washer faces and a prescribed tightening sequence.
Valve-clearance inspection gives a cold intake range of 0.10–0.15 mm, measured between the cam and valve lifter.
Oil-capacity data distinguishes a completely dry engine fill of 1.5 L from routine oil changes, with separate entries depending on whether the filter is removed.
