1994 Honda BF20A/BF25A Outboard Motor Service Manual (P/N 66ZV700)

• Official Honda OEM publication P/N 66ZV700, issued April 1994, spanning 343 pages
• Covers 1994 Honda BF20A and BF25A 3-cylinder 4-stroke outboards, including SH, LH, SHS, LHS, SRS, and LRS short-shaft and long-shaft variants
• Details both electric and recoil starting configurations
• Contains 18 chapters of technical data, exploded-view diagrams, electrical routing maps, and critical torque specifications for engine and lower unit assemblies
• Serves as the original baseline factory reference for these marine power units during their early production cycle
• Analyzes essential outboard assemblies including the gear case, extension case, swivel case, oil pan, steering link arm, remote control box, water jacket cover, and oil pump

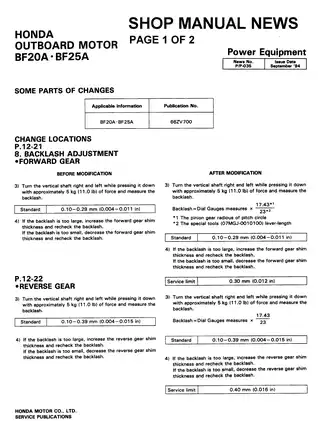

• Features comprehensive updates via the BF30 supplement and BF25D through BF35D supplements, alongside power trim/tilt systems, gas-assisted tilt mechanisms, wiring diagrams, dimensional drawings, tube routing schematics, and forward/reverse gear backlash charts

Technical Structure

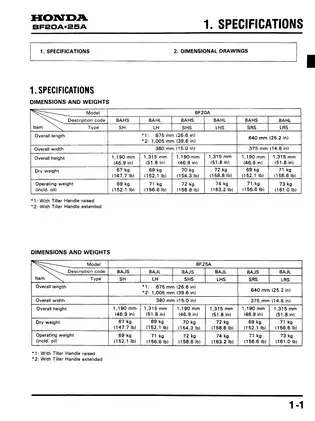

This PDF publication maps out the complete mechanical framework for the 1994 Honda BF20A and BF25A outboard line, alongside the integrated D-series supplements. It progresses logically. You start with general specifications and maintenance schedules before diving into dedicated chapters on the fuel system, ignition, the timing belt, and complete engine removal. Exploded-view diagrams break down the recoil starter, carburetors, and crankcase assemblies part by part. Need to distinguish between remote control and tiller handle configurations? Specific sections address those exact nuances, laying out clear visual references for cable/harness routing views and electrical connections. Detailed tables also define strict service intervals for oil changes, spark plug checks, and valve clearance adjustments.

To bypass expensive marine shop labor, the text reviews precise step-by-step procedures for complex tasks like multi-carburetor synchronization using vacuum gauges, complete timing belt replacements, forward and reverse gear backlash shimming, and the safe discharge of the high-pressure gas-assisted tilt damper. Having these exact factory specifications directly at the workbench minimizes unbillable labor time and prevents costly assembly errors.

Marine engine maintenance involves pressurized fuel systems and high-voltage ignition components. Always review the dedicated safety protocols outlined within the initial chapters before beginning any teardown or diagnostic work.

Specification and Reference Data

Engine cooling system performance is thoroughly documented, focusing on forced water circulation and thermostat regulation. You will find precise factory measurements throughout the text to guide your bench work. For instance, the cylinder head specification table lists intake valve clearance strictly at 0.10–0.14 mm. Cylinder compression for both units must hit 15 kg/cm2 (212 psi) at 500 rpm. Proper cam alignment relies on timing belt tensioning parameters defined explicitly in the engine assembly section.

Complex systems are mapped out wire by wire and tube by tube. The manual features essential visual aids, including mandatory wiring diagrams, dimensional drawings, tube routing schematics, maintenance schedule charts, and electrical equipment schematics. Reference charts provide critical fastening metrics, such as the 3.55 kg-m (25.7 ft-lb) torque rating required for the BF20A crankshaft main bearing housing. Finally, the CDI unit and associated ignition coil resistance values are fully tabulated to streamline your electrical diagnostic reviews. This overview highlights the internal reference data contained within the manual rather than providing step-by-step repair instructions.
