Detailed Service Manual for Yamaha F20 Outboard (2007-2009) – 331 P. Manual | Workshop Ready

Yamaha F20 Service Manual

This professional factory publication provides the structural engineering data required to maintain the peak performance of your Yamaha outboard engine. By utilizing original manufacturer specifications, technicians and owners can ensure mechanical integrity, maximize fuel efficiency, and prevent premature component failure. This guide serves as the definitive reference for maintaining the operational reliability and safety standards established during the manufacturing process.

Workshop Reference Standards

• Total Pages: 331
• LIT / Print Number: 6AG-28197-21-00
• Publication Date: 2009 revision
• File Format: High-definition PDF

Operational ROI & Accuracy

• Precision Calibration: Eliminates costly trial-and-error by providing exact clearance and torque benchmarks.
• Longevity Optimization: Step-by-step procedures for seasonal maintenance prevent major mechanical breakdowns.
• Workflow Efficiency: Logically indexed chapters allow for rapid identification of parts and assembly sequences.
• Investment Protection: Maintains the resale value of the outboard by following factory-certified service intervals.

Mechanical Integrity Guide

This technical volume covers the Yamaha F20 series produced between 2007 and 2009. It is specifically applicable to models featuring the 6AH engine series, including F20ELH, F20ESH, F20MLH, F20MSH, and F20PLH configurations. It supports multiple regional suffixes including F, G, and H, ensuring compatibility across international variations of the F20 powerhead and midsection.

Factory Precision Data

Advanced Diagnostic Logic

The manual details complex troubleshooting paths for the microcomputer-controlled CDI ignition system. It provides resistance values for the pulser and charge coils, allowing for systematic isolation of electrical faults. Detailed logic trees assist in diagnosing cooling system blockages through overheat sensor testing and water pump inspection procedures, ensuring the engine remains within safe thermal limits.

High-Resolution Technical Schematics

Engineered for workshop utility, the document contains high-resolution wiring diagrams and exploded assembly views. The vector-based diagrams maintain clarity at high zoom levels, allowing for the tracing of color-coded circuits (Y/B, R/W, P/W) across the starter relay, rectifier/regulator, and LED indicator panels. Component maps clearly illustrate the routing of fuel lines and the internal architecture of the 6AH carburetor.

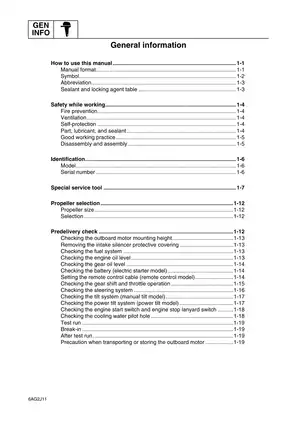

Systematic Service Chapters

• General Information: Safety, identification, and special tool requirements.
• Specifications: Comprehensive technical, tightening, and clearance data.
• Periodic Checks: Scheduled maintenance intervals and lubrication points.
• Fuel System: Carburetor disassembly, cleaning, and synchronization.
• Power Unit: Cylinder head, valves, crankshaft, and piston service.
• Lower Unit: Gearcase pressure testing and water pump replacement.
• Electrical System: CDI testing, starter motor repair, and wiring.
• Troubleshooting: Symptom-based fault isolation and corrective actions.

FAQ

What specific Yamaha F20 engine series are covered in this technical guide?

This documentation is engineered for the 6AH series powerhead, providing comprehensive service data for F20 models manufactured between 2007 and 2009. It supports a wide range of configurations including the F20ELH, F20ESH, F20MLH, F20MSH, and F20PLH. By referencing these specific 6AH identifiers, technicians can ensure that internal components like the single carburetor or the SOHC valve train are serviced to the exact engineering tolerances required for these production years.

What are the critical valve clearance and spark plug benchmarks for the F20?

For optimal combustion and mechanical longevity, the intake valve clearance must be set between 0.15–0.25 mm (0.006–0.010 in) while the exhaust valves require 0.25–0.35 mm (0.010–0.014 in) when the engine is cold. Additionally, the ignition system relies on a specific spark plug gap of 0.8–0.9 mm (0.031–0.035 in) using NGK DPR6EB-9 plugs. Adhering to these precise 0.1 mm increments prevents thermal expansion issues and ensures the 14.7 kW output is maintained across the full 5,000–6,000 RPM range.

How do I troubleshoot the electrical and ignition logic on this model?

The manual provides high-utility diagnostic values for the CDI (Microcomputer) ignition system, including a peak voltage requirement and specific resistance ranges for the pulser and charge coils. For example, verifying that the oil pressure remains at approximately 400 kPa (58.0 psi) at idle is essential for preventing the logic board from triggering an RPM reduction or overheat warning. These technical benchmarks allow for systematic isolation of electrical faults without the need for expensive trial-and-error parts replacement.

What are the fluid capacities and oil requirements for seasonal maintenance?

Maintaining the 362 cm³ displacement engine requires a total oil capacity of 1.8 liters (1.90 US qt) when replacing the oil filter, or 1.6 liters (1.69 US qt) for a standard change. It is critical to use SAE 10W-30 or 10W-40 oil meeting API SE through SL standards. Furthermore, the lower unit gearcase requires 300 cm³ (10.14 US oz) of Hypoid SAE 90 gear oil. Following these exact volume specifications ensures proper lubrication of the 2.08 gear ratio assembly and protects the dog clutch transmission during high-load operation.

Can the high-resolution schematics be used for field repairs on mobile devices?

Yes, the digital PDF format features high-definition vector graphics that allow for significant zoom levels on wiring diagrams and exploded assembly views. This is particularly useful when identifying color-coded leads—such as the P/W (Pink/White) or Y/B (Yellow/Black) wires—at the starter relay or CDI unit while working on a vessel. The clarity of the schematics ensures that even the smallest components in the 6AH carburetor assembly are identifiable, facilitating faster field repairs and reducing downtime.
