Honda G150/G200 Horizontal-Shaft Engine Service Manual (1980s)
115 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Models: G150, G200
Sub-models / Variants: Crankshaft P.T.O. type, Camshaft P.T.O. type, 1/2 reduction (G150 shaft drawing and oil-change procedure; G200 centrifugal clutch service), 1/6 reduction, Semi-dry type air cleaner, Oil-bath type air cleaner, Dual element type air cleaner, Silent type air cleaner
Model Years: 1980s (based on serial numbering schemes 1000001 and onwards)
Serial Numbers: G150 1000005–1181478, G150 1181479 and subsequent, G200 1000001–1286400, G200 1286401 and subsequent. Overall manual coverage: G150-1000001 and subsequent, G200-1000001 and subsequent.
Valve-clearance serial ranges: G150 up to 1100542, G150 1100543–1380694, G150 1380695 and subsequent; G200 up to 1168819, G200 1168820–1556007, G200 1556008 and subsequent.
Connecting-rod lock-washer serial breaks: G150 1167849 and subsequent; G200 1269499 and subsequent.
-
Engine type: 4-stroke, side valve, single cylinder
-
G150 displacement: 144 cc (8.8 cu. in)
-
G200 displacement: 197 cc (12.0 cu. in)
-
Max. horsepower G150: 2.6 kW (3.5 HP) at 3600 RPM
-
Max. horsepower G200: 3.7 kW (5.0 HP) at 3600 RPM
-
Compression ratio: G150 6.5:1
-
Cooling system: Forced air
-
Ignition system: Flywheel magneto or CDI
-
Cylinder head bolt torque: 24–26 Nm (17.4–18.8 ft-lb)
-
Flywheel nut torque: 70–80 Nm (700–800 kg-cm)
Honda Manual Features & Selected Content Preview
This service manual covers 1980s Honda G150 and G200 horizontal-shaft engines, with separate model sections for crankshaft and camshaft P.T.O. configurations.
PDF Search, Bookmarks, and Page Breakdown
Search and diagram detail: Embedded OCR supports text searches in both model sections, though some words and drawing labels are missed. Bookmarks open the two model sections. The printed Index buttons are inactive, and small component labels in the CDI schematics are clearer when zoomed in.
The download contains one printable English-language PDF with 115 pages, including 57 pages for the G150 and 58 for the G200.
Engine Overhaul, Ignition Tests, and P.T.O. Service
These are selected workshop topics. The manual also illustrates spark plug inspection and gap checks and explains how to change engine and reduction-gear oil.
- Engine repair: Cylinder-head and valve work, piston-ring inspection, crankshaft and camshaft service, bearing checks, and reassembly data with component-specific torques and wear limits.
- Fuel and governor: Fuel-tank and filter service, carburetor and float-chamber inspection, governor adjustment, and choke and remote-control linkage arrangements.
- Ignition diagnosis: Flywheel removal, breaker-point timing, condenser and ignition-coil tests, CDI exciter-coil alignment, engine-switch checks, and ignition troubleshooting charts.
- Recoil starter and cooling: Starter ratchet, rope, and return-spring service, plus fan, fan-cover, muffler, and exhaust-deflector assembly details.
- Reduction drives: Exploded views of the geared reduction unit for both engines, plus centrifugal-clutch, drive-sprocket, and chain assembly in the G200 section.

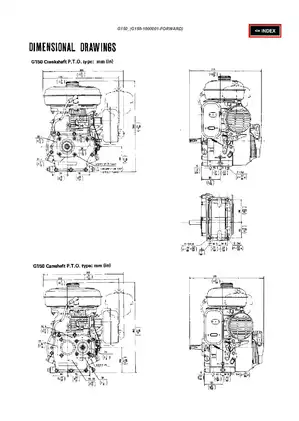

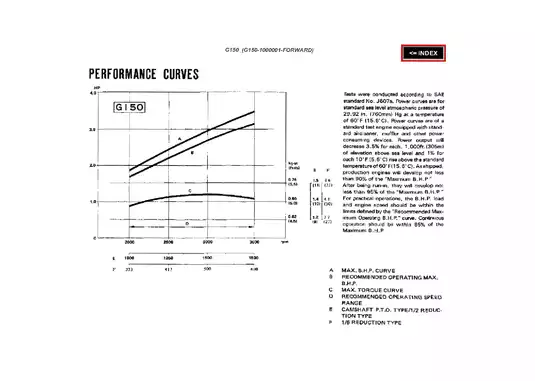

- Workshop references: Maintenance schedules, dimensional and P.T.O. shaft drawings, performance curves, special-tool illustrations, engine disassembly charts, and CDI circuit schematics.
This manual suits mechanics and experienced small-engine repairers who are comfortable with precision measurement, electrical testing, and the use of specialist engine tools.
Engine Assembly and Valve Work
The maintenance tables distinguish standard dimensions from service limits for piston-to-cylinder clearance, ring widths and gaps, valve stems and guides, valve-seat widths, and connecting-rod bearings. The manual shows where to use Plastigauge to check connecting-rod big-end oil clearance.
Valve work includes seat reconditioning with cutters, valve-guide replacement and reaming, and valve-stem lapping. The tool list identifies the valve guide reamer (07984-6890100) and valve lapping guide (07975-8050000).
Serial-specific valve-clearance tables and connecting-rod lock-washer notes help match adjustment data and reassembly details to the engine being repaired. The torque tables give separate values for selected self-tapping fasteners in new and previously threaded holes.
Some specification fields in the illustrated procedures are blank, including valve-inspection and carburetor-adjustment fields. The separate maintenance and torque tables provide model-specific reference data.
Fuel System and Governor Service

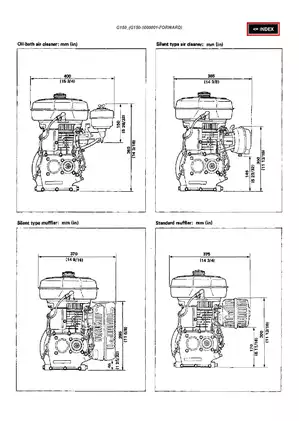

Fuel-tank cleaning, filter-screen inspection, and air-cleaner maintenance are documented separately. Service instructions distinguish semi-dry, oil-bath, and dual-element air cleaners. The silent air cleaner appears in the dimensional drawings.
The carburetor section covers float-valve wear, passage cleaning, and float-height checks. Float height is fixed. An out-of-spec measurement calls for replacement of the float or float valve.
The main- and slow-circuit explanations trace fuel through the jets, passages, and float chamber. Governor illustrations identify the anti-surge spring and rod connections, and the remote-control examples distinguish plain and braided control cables.
Ignition Fault Tracing
Troubleshooting charts connect hard starting and poor performance with fuel, compression, governor, and ignition checks. Separate breaker-point and CDI fault paths help narrow the investigation to the components fitted to the engine.
The CDI timing number identifies the correct exciter-coil position. Poor grounding can damage the CDI unit or exciter coil, and disconnecting CDI wiring while the engine is running can damage the unit. Running-engine tests require ventilation and precautions around gasoline vapors, hot parts, and rotating components.
Recoil Starter and P.T.O. Drives
Starter documentation covers ratchet friction plates, return-spring handling, rope installation, and spring preloading. The crankshaft and camshaft P.T.O. layouts use different removal and timing arrangements. The camshaft layout uses timing-chain alignment marks.
Both model sections give oil-change procedures for the 1/2 and 1/6 reduction cases. The G200 section also shows 1/2-reduction centrifugal-clutch assembly, including clutch-plate and disc inspection and drive-sprocket and chain installation.
Compression, Valve Clearance, and Jetting Examples
The maintenance tables give a cylinder compression standard of 588 kPa at 600–700 rpm for both engines. In the G200 section, the cold valve-clearance specification from serial 1556008 onward is 0.08–0.16 mm at the intake and 0.16–0.24 mm at the exhaust.
The carburetor tables list a #65 main jet for the G150 and a #72 main jet for the G200.
