1975 Honda G65/G80/GS65 Engine Service Manual (P/N 6287301E2)

Honda’s G65/G80 service manual covers horizontal-shaft gasoline engines, including GS65 specifications and electric-start equipment. The technical pages carry a November 1975 issue date.

Text search and diagram detail: Embedded PDF bookmarks lead to the main service sections. OCR text search is partial, with gaps in tables and diagram labels. Small wiring-diagram terminal labels require zooming.

• Engine repair: Cylinder-head disassembly, valve guide replacement, seat reseating, valve lapping, crankshaft and camshaft service, and piston-ring installation.

• Fuel and governor: Fuel-tank and strainer service, carburetor disassembly, float-height inspection, pilot-screw adjustment, governor-link setup, and air-cleaner maintenance.

• Ignition diagnosis: High-tension-coil and condenser checks, breaker-point inspection, engine-switch testing, and ignition-timing adjustment for the flywheel-magneto system.

• Starting systems: Recoil-starter spring and rope replacement, starting-motor removal and installation, combination-switch and fuse-holder views, and battery-installation guidance.

• Reduction units: Disassembly and reassembly drawings for both reduction types, including clutch-weight components, friction-disc inspection, and PTO-shaft service.

• Maintenance and fault finding: Periodic maintenance schedule, symptom-based troubleshooting chart, inspection limits, tightening torques, and model-specific special-tool listings.

The service information is intended for qualified professional technicians with the training, tools, and equipment needed for engine repair.

Engine Repair and Service Data

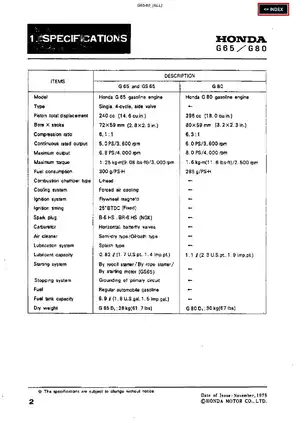

The documentation includes charts covering piston ring gaps, valve-clearance tolerances, and torque specifications. Further inspection limits address cylinder wear, piston-pin fit, connecting-rod clearances, cam height, and crankshaft runout.

These limits support parts evaluation before reassembly, while the tightening-torque table distinguishes G65 and G80 fasteners. Oil-capacity specifications distinguish the engine sump from each reduction unit.

Valve work includes guide reaming and separate intake/exhaust seat-cutter references. Piston drawings distinguish the G80 orientation mark, and valve-timing views show the crankshaft/camshaft relationship.

The timing-gear instructions warn about scratching the crankshaft surface that contacts the oil seal, identifying a damage risk during disassembly.

Carburetor, Governor, and Running Problems

Carburetor details distinguish G65 and G80 main jets and pilot-screw settings. The float valve and seat are treated as a matched set, and the governor-link drawings show the changed spring attachment for remote-control installations.

Hard starting, lack of power, and erratic low- or high-speed running are linked to possible causes and relevant service pages in the troubleshooting chart. This helps narrow a running complaint to fuel delivery, ignition, governor operation, or mechanical wear before choosing a repair procedure.

Separate cleaning instructions cover semi-dry and oil-bath air cleaners and muffler carbon deposits.

PTO Variants and Reduction Units

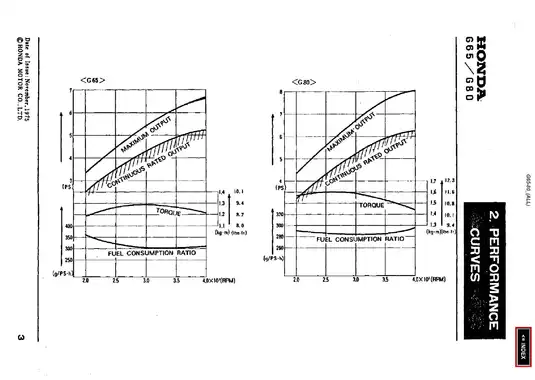

Engine performance curves accompany dimensional drawings for the engine and PTO shaft. The shaft tables distinguish metric and inch flat-key versions from tapered direct-coupling versions.

G65 RD/RG and G80 RD use 1:2 reduction; G65 HD and G80 HD use 1:6 reduction. G65 D, G80 D, and GS65 BD appear among the direct-drive shaft configurations.

The 1:2 reduction procedures address friction-disc wear, clutch-plate warpage, and clutch-weight disassembly. The 1:6 section has separate gearbox and PTO-shaft assembly drawings.

Ignition, Starting, and Charging

Alongside recoil-starter repairs, the electrical section provides one wiring diagram, a charging-current curve, and a combination-switch/fuse-holder assembly view. The diagram distinguishes GS65 and G80 fuse arrangements and shows the connections between the starter, charging, and ignition circuits.

Electric-start coverage addresses external removal, installation, wiring, and battery connections; it does not include an internal starter-motor overhaul procedure. A separate disassembly chart shows which engine assemblies must be removed to reach components such as the ignition coil and breaker points.

Special Tools and Workshop Precautions

The special-tool table identifies flywheel puller 07935-8050001 and different piston-ring compressors: 07955-8230000 for G65 and 07955-8740000 for G80.

Always verify your workspace is well-ventilated and secure the engine block on a stable mount before beginning any physical inspections.

PDF Contents and Page Breakdown

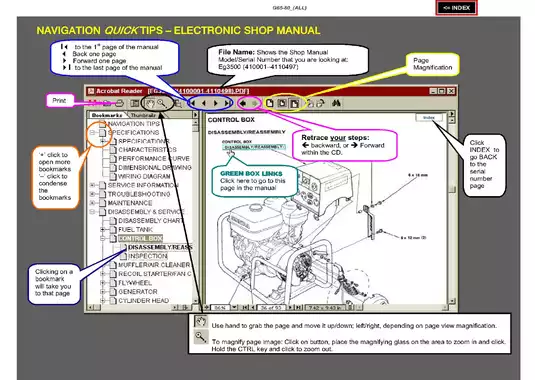

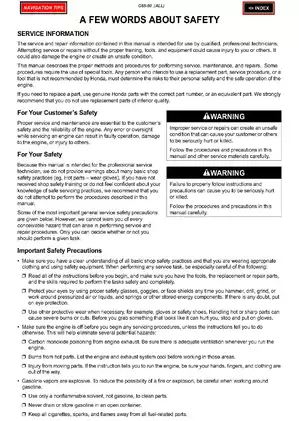

Delivered as one printable English-language PDF. The 52-page PDF contains 50 numbered manual pages, including one memo page, plus one safety page and one navigation-help page; all are included in the total.
