Honda GC160 Engine Service & Repair Manual | 1999–2000

This Honda GC160 shop manual covers the horizontal-shaft engine in the documented Q, V, and P configurations, with the engine serial range GCAH(A)-1000001-FORWARD.

Text Search, Bookmarks, and Diagram Detail

Finding information: Embedded OCR text supports searches, though recognition errors and gaps affect some words and specification values. PDF bookmarks provide access to specifications, troubleshooting, maintenance, and component repair. Small wiring labels and color-code tables require zooming for comfortable reading.

Supplied as one printable, English-language 80-page PDF.

Engine Teardown, Fuel Systems, and Fault Diagnosis

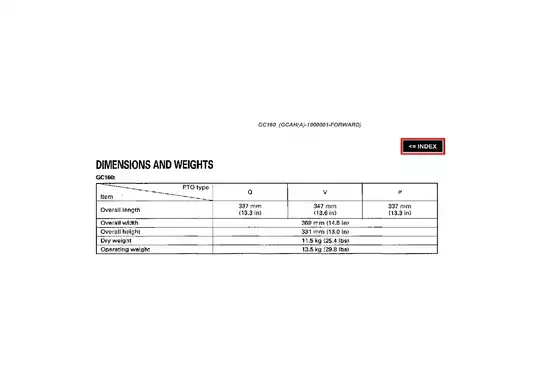

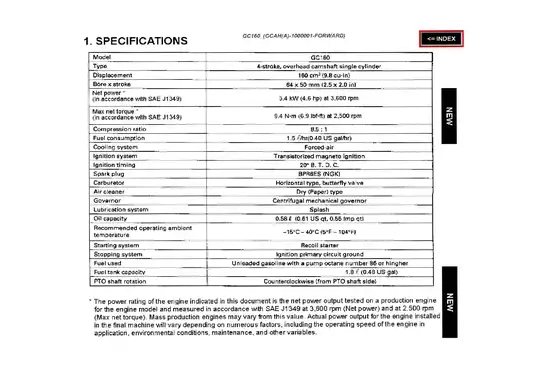

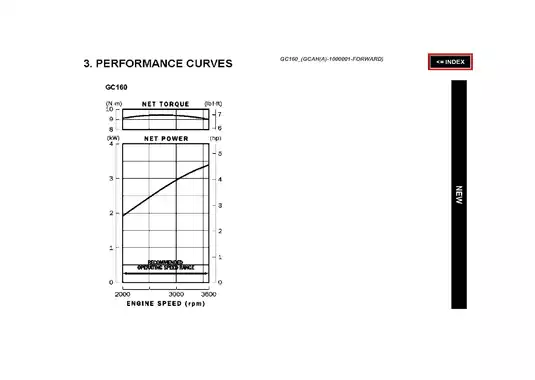

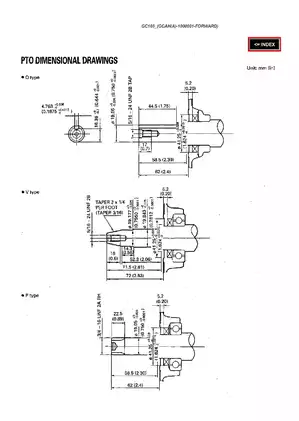

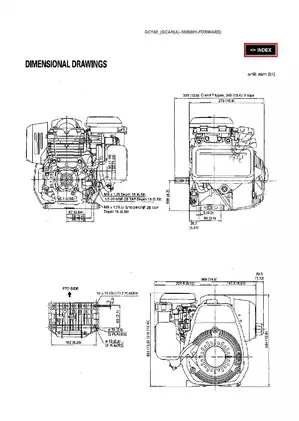

The following selected coverage highlights outline the main workshop content. Further topics include performance curves and PTO dimensional drawings.

• Internal engine repair: Crankcase separation, crankshaft and piston service, connecting-rod inspection, breather-valve replacement, and centrifugal-governor assembly.

• Valve train and timing: Cam-pulley and rocker-arm removal, timing-belt installation, valve-clearance adjustment, and valve-seat reconditioning.

• Fuel and throttle controls: Carburetor disassembly and reassembly, float-level inspection, fuel-pump connections, and governor adjustment for the documented throttle configurations.

• Electrical diagnosis: Ignition-coil tests, engine-stop-switch checks, Oil Alert troubleshooting, and wiring diagrams for engines with and without an oil-level switch.

• Starting and exhaust: Starter-rope replacement, recoil-starter assembly removal, muffler service, and maintenance of the optional spark arrester.

• Maintenance references: Maintenance schedule, lubrication guidance, paper air-cleaner service, spark-plug inspection, torque tables, and component-specific service limits.

The repair sections suit mechanics familiar with small-engine service and equipped for compression testing, electrical measurements, and precision internal-engine inspection.

Troubleshooting Before Teardown

Symptom-based flowcharts address hard starting, stalling after startup, loss of power, and failure to increase engine speed. They link fuel-delivery, ignition, and compression checks to the affected components, helping distinguish an external fault from a condition requiring internal inspection.

Oil Alert diagnosis separates oil-level-switch, engine-stop-switch, and ignition-coil faults. The harness-routing illustration identifies the high-tension cord and switch-wire paths, complementing the circuit diagrams and their switch-contact tables.

Carburetor Repair and Throttle Variants

Step-by-step procedures cover carburetor teardown, float inspection, and pilot-screw replacement. Fuel-system illustrations distinguish the fuel-tank, carburetor, and diaphragm-tube connections at the pump.

The control-base sections distinguish manual-throttle arrangements for Q and P types, the remote-throttle Q type, and the manual-throttle V type. These differences matter when matching control-linkage illustrations and governor procedures to the engine on the bench.

Pilot-screw limiter cap: Removing the cemented cap breaks the pilot screw; the manual treats this as a replacement operation rather than a routine mixture adjustment.

Internal Inspection and Valve-Seat Work

Exploded assembly views show piston-ring orientation, connecting-rod installation, thrust-washer placement, and crankcase sealing areas. Standard dimensions and service limits support decisions about component reuse or replacement rather than relying on generic small-engine estimates.

Valve-seat reconditioning uses a 45-degree cutter and includes contact-pattern inspection and lapping. The special-tool table identifies valve-seat cutter 07780-0010200 and valve-adjusting wrench B 07708-0030400.

The built-in timing-belt section explains both valve operation and how the belt carries engine oil to the rocker-arm chamber. Cam-pulley installation illustrations show the alignment references used during reassembly.

Working on internal engine components requires adherence to the manual’s safety precautions and tightening sequences, including its warnings concerning moving parts, hot surfaces, and gasoline.

Starter Scope and Flywheel Precautions

Recoil starter: The manual describes assembly removal and rope replacement but explicitly instructs against disassembling the starter assembly.

The flywheel section identifies the required puller contact area and cautions against using the fan blades as a holding point. Incorrect tool contact can damage the flywheel or its blades.

A Preview of Compression and Inspection Standards

The maintenance standards list GC160 cylinder compression at 0.49 MPa (71 psi) at 600 rpm and a spark-plug gap of 0.7–0.8 mm (0.028–0.031 in).

For connecting-rod inspection, standard big-end oil clearance is 0.040–0.063 mm. The internal-inspection section also describes the Plastigauge measurement used to compare the actual clearance with the listed standard and service limit.
