Honda GC190 Engine 2007 Service & Repair Manual

This Honda GC190 engine service and repair manual covers Q, V, and P types, with PTO dimensional drawings and variant-specific throttle-control layouts. The 2007 emissions supplement referenced on the opening page is not included in this file.

PDF Search, Bookmarks and Specification Tables

Search and page detail: OCR text supports searches throughout the manual, and embedded bookmarks open the major service sections. Small wiring color-code labels require zooming. Several specification boxes within procedure pages are blank; numerical reference data are provided in separate Maintenance Standards and Torque Values tables.

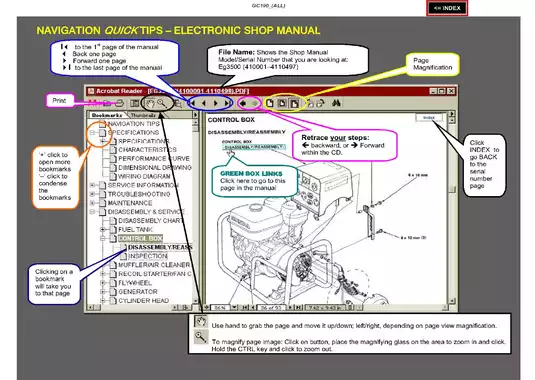

The download contains one printable, English-language, 82-page PDF, including two opening safety and navigation pages and 80 service-information pages.

Fuel-System Diagnosis and Internal Engine Repair

The following selected service topics show the manual’s scope rather than its complete contents. Additional subjects include maintenance scheduling and combustion-chamber cleaning.

• Troubleshooting: Symptom charts for hard starting, stalling, power loss and poor speed response, with cylinder-compression checks and ignition fault isolation.

• Carburetor and fuel delivery: Step-by-step carburetor disassembly and reassembly, float-level inspection, pilot screw and limiter cap replacement, plus diaphragm fuel-pump and tube installation.

• Valve train and timing: Cold valve-clearance adjustment, cam pulley installation and timing alignment, decompressor-weight inspection, rocker-arm service and valve-seat reconditioning.

• Internal engine repair: Crankcase separation, crankshaft and piston removal and installation, piston-ring assembly, connecting-rod inspection and Plastigauge oil-clearance measurement.

• Ignition and Oil Alert: Transistorized magneto tests, ignition-coil resistance checks and air-gap adjustment, with wiring diagrams for engines with and without an oil level switch.

• Starting and speed control: Recoil starter rope replacement, fan-cover installation, centrifugal mechanical governor adjustment and governor-component disassembly.

• Supporting assemblies: Muffler and optional spark arrester service, breather-valve installation, radial ball bearing replacement and component-specific torque tables.

Honda states that this manual is intended for qualified, professional technicians with the training, tools and equipment required for engine service.

Troubleshooting Before Teardown

The diagnostic charts connect operating symptoms with fuel delivery, ignition, governor and compression checks. This gives a shop a documented way to investigate an engine complaint before deciding which assembly requires internal inspection.

For engines equipped with Oil Alert, separate troubleshooting distinguishes the oil level switch, engine stop switch and ignition coil. The Harness Routing view identifies the associated wiring and clamp locations.

Carburetor, Throttle Controls and Flywheel

Carburetor coverage extends to the float valve, main jet, main nozzle, internal passages and throttle stop adjustment. Fuel-system illustrations distinguish the fuel tank tube, fuel tube and diaphragm tube connections; inspection also addresses tube deterioration and pump contamination.

The control-base drawings distinguish manual-throttle arrangements for Q and P types, a remote-throttle Q arrangement and the V-type manual control. The flywheel section covers puller positioning, woodruff-key alignment and ignition-coil installation.

The manual warns that removing the carburetor’s limiter cap breaks the pilot screw, requiring a new screw and cap rather than reuse of the original parts.

Timing, Wear Inspection and Reassembly

The built-in timing belt drives the single-lobe cam and L-shaped rocker arms and carries oil to the rocker-arm chamber. Its section view explains that relationship alongside the separate cam pulley alignment instructions.

Internal inspection includes cylinder wear and taper, piston-to-cylinder clearance, piston-ring gaps, crankshaft journals, valve guides and valve-seat contact. Exploded assembly views show piston-ring identification and connecting-rod orientation. Bearing tools are identified for V and P types, and the special-tool table lists the float level gauge as 07701-0010000.

The valve section warns that removing the spring retainers while the piston remains installed can allow the valves to drop into the cylinder. Recoil starter coverage includes rope replacement, while explicitly instructing against disassembly of the starter assembly itself.

Working on internal engine components requires strict adherence to factory tolerances to prevent equipment failure or severe physical injury. Always verify specifications and mechanical conditions before beginning any teardown.

A Sample of Compression, Journal and Fastener Data

The Maintenance Standards table lists cylinder compression at 0.49 MPa (71 psi) at 600 rpm. It also gives a standard crankcase-cover main journal internal diameter of 28.020 mm, alongside the separate service limit used for wear assessment.

The Torque Values table specifies 75 N·m for the flywheel nut and 12 N·m for the connecting-rod bolt. These are examples of the component-specific reference data accompanying the repair procedures.
