Honda GCV160 Engine Service Manual
Technician-level documentation for the Honda GCV160 engine, covering removal, installation, inspection, and adjustment of key components. PN: 90013-ZG9-T00
Manual Preview
Sample pages from the Honda GCV160 Engine Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Honda GCV160 Engine (90013-ZG9-T00) -- 2001 Expert Library | Volume
- Designated Heat Dissipation: 3.3 kW (4.4 hp) signifies the engine's peak power output Metric.
- Primary Production Rate: 1.1 L/hr (0.3 US gal/hr) defines the standard fuel consumption rate Parameters.
- Advanced Form Factor: 160 cc (9.8 cu-in) establishes the engine's displacement Measurement.
- Defined Tightening Data: 9.4 N·m (6.9 lb-ft) specifies the max net torque specification Logic.
- Key Gap Specs: 20° B.T.D.C indicates the standard ignition timing setting Benchmarks.
- Essential Working Temperature: -5°C-40°C (23°F-104°F) defines the optimal operating ambient temperature Range.
Professional Workshop Service Manual & Technical Specifications
Essential Overhaul Assembly Manual: Honda GCV160 Engine - Comprehensive Service & Repair Manual Chassis-Documentation
Service-Level: GCV160 // Engineering-Base: Engine / Diesel Logic // Service-Level: 2001

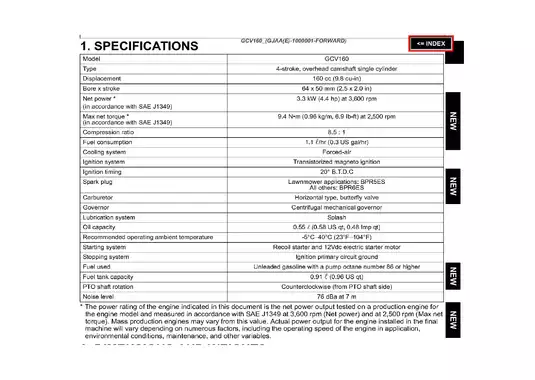

Honda GCV160 Engine Specifications Overview
| Integrated-Framework | Baseline | Calibration-Spec |
|---|---|---|
| Model | GCV160 | GCV160 |
| Type | 4-stroke, overhead camshaft single cylinder | 4-stroke, overhead camshaft single cylinder |
| Displacement | 160 cc (9.8 cu-in) | 160 cc (9.8 cu-in) |
| Bore x stroke | 64 x 50 mm (2.5 x 2.0 in) | 64 x 50 mm (2.5 x 2.0 in) |
| Net power | 3.3 kW (4.4 hp) at 3,600 rpm | 3.3 kW (4.4 hp) at 3,600 rpm |
| Max net torque | 9.4 N·m (6.9 lb-ft) at 2,500 rpm | 9.4 N·m (6.9 lb-ft) at 2,500 rpm |
| Compression ratio | 8.5:1 | 8.5:1 |
| Fuel consumption | 1.1 L/hr (0.3 US gal/hr) | 1.1 L/hr (0.3 US gal/hr) |
Honda GCV160 Engine Maintenance and Troubleshooting Documentation

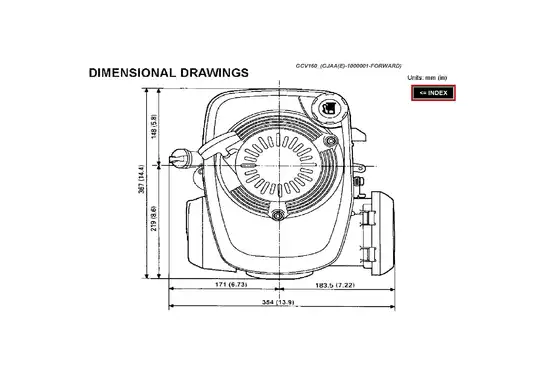

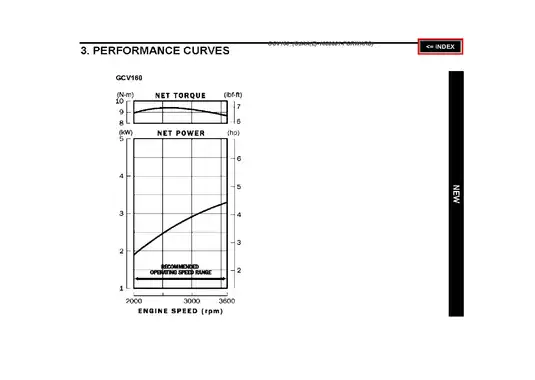

Cataloging major assemblies into distinct sections, this manual meticulously details the procedures for maintenance and troubleshooting. It provides clear instructions for component removal and installation, ensuring proper assembly and function. The document thoroughly covers systems critical to engine performance, including the ignition system, fuel system (carburetor, fuel tank, fuel filter), lubrication system, and cooling system. Specific attention is given to engine specifications, dimensional drawings, and performance curves to aid in understanding engine capabilities and limitations.
Ignition System Diagnostics and Repair Procedures
This section addresses potential issues within the ignition system, including spark plug condition, ignition coil resistance, and air gap adjustments. It outlines diagnostic steps to identify faulty components and provides guidance on necessary repairs or replacements to restore optimal ignition performance.
Carburetor Functionality and Adjustment Protocols
Detailed information is provided on the carburetor's operation, including pilot screw and throttle stop screw adjustments. The manual guides users through disassembly, cleaning, and reassembly procedures for the carburetor, emphasizing the importance of proper gasket installation and the use of compressed air for cleaning internal passages.
Governor System Calibration and Torque Specifications
The manual details the governor system's adjustment procedures to ensure proper engine speed regulation. It specifies the necessary torque values for governor arm nuts and related components, contributing to the overall mechanical integrity and performance of the engine.
Valve Clearance and Timing Belt Maintenance Steps
Proper valve clearance is crucial for engine operation. This manual provides step-by-step instructions for inspecting and adjusting valve clearance, including the critical procedure of setting the piston at top dead center. It also covers timing belt installation and inspection, highlighting the importance of checking for wear or cracks to prevent premature engine failure.
This comprehensive manual documents torque specifications for various engine components to ensure proper thread engagement security. It offers systematic troubleshooting guides for common engine symptoms, aiding technicians in diagnosing and resolving issues efficiently. The document includes essential maintenance schedules, outlining regular service intervals for optimal engine longevity and performance.
