- STIHL 070 (1969)
- STIHL 070 AV (1969)
- STIHL 090 (1969)
- STIHL 090 AV (1969)
- STIHL 090 G (1969)
STIHL 070, 090 Chain Saw Service Manual
Models covered in this manual:
File specifications
File type: PDF
Language: English
Printable: Yes
Estimated download time: 0.23 Minutes
$14.99
Pay with Bitcoin
Product Information

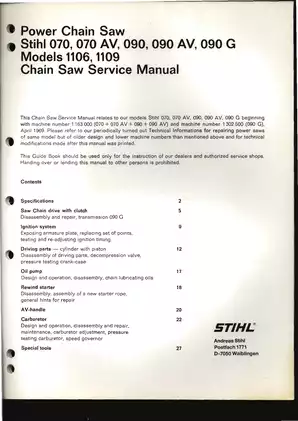

STIHL 070, 090 Chain Saw Service Manual
The STIHL 070 and 090 Chain Saw Service Manual is an essential resource for anyone maintaining or repairing these powerful chain saw models. This comprehensive guide provides detailed instructions on disassembly, repair, and adjustment for various components including the engine, ignition system, oil pump, and carburetor.
Key Features:
- Specifications and technical information for precise repairs.
- Step-by-step disassembly instructions to ensure thorough understanding of the components.
- Maintenance tips for extending the life of your chain saw.
- Troubleshooting guidelines to diagnose problems effectively.
What's Inside:

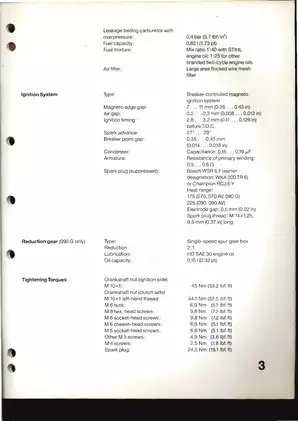

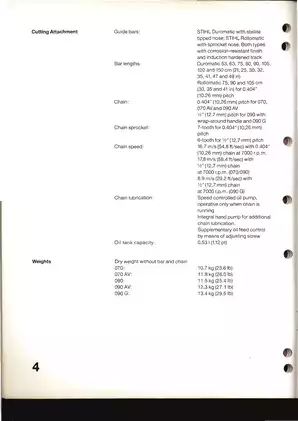

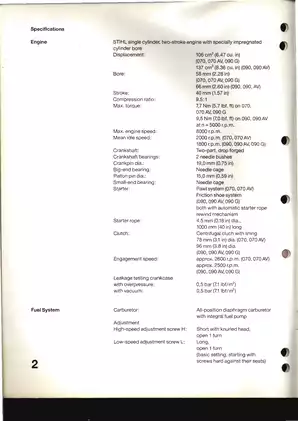

- Specifications (Page 2)
- Disassembly & Repair: Step-by-step for engine components (Page 5-12)
- Ignition System: Exposing and testing the ignition timing (Page 9)
- Oil Pump: Complete maintenance instructions (Page 14)
- Carburetor Adjustments: Detailed instructions on carburetor operation and maintenance (Page 22)
- Special Tools: List of tools for assembly/disassembly (Page 27)
- Clutch and Transmission: Handling and troubleshooting (Page 20-25)
This manual is designed primarily for authorized dealers and service shops, ensuring that technicians have all the information they need to provide quality service and repairs. If you're looking to keep your STIHL chain saw in top condition, this service manual is a vital tool.
Important Note: Distribution of this manual outside of authorized repair services or dealerships is strictly prohibited.
