STIHL MS 171, MS 181, MS 211 Service Manual OEM (P/N 0455 533 0123)

• Document coverage: English STIHL service manual for the MS 171, MS 181/MS 181 C, and MS 211/MS 211 C configurations identified in the specifications. Dated 2007-05, the 102-page repair manual forms the first section of a 328-page PDF; its back page carries printed code 0455 533 0123.
• Engine and crankcase repair: Covers the muffler and spark-arresting screen, crankcase pressure and vacuum testing, oil-seal replacement, engine removal and installation, crankshaft and ball-bearing service, piston work, and piston-ring inspection.
• Drive and safety assemblies: Details clutch and clutch-drum service, chain-brake operational testing, brake-band and lever repair, flat-spring replacement, standard and quick chain tensioners, chain catcher repair, and bar-mounting studs.
• Starting, controls, and AV system: Provides separate procedures for the standard rewind starter and ErgoStart, including pawls, rope rotor, starter rope, spring tensioning, and spring replacement, plus the Master Control Lever, throttle interlock, AV springs, and handle frame.

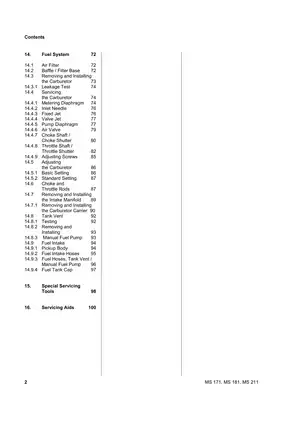

• Fuel and chain-oil systems: Addresses carburetor removal, leak testing, internal repair and adjustment, intake-manifold and carburetor-carrier work, tank-vent testing, manual fuel-pump configurations, fuel-hose routing, pickup components, oil-pump replacement, and lubrication-system fault diagnosis.
• Diagnostics and shop references: Supplies symptom-based troubleshooting tables, a multi-page ignition-system diagnostic flowchart, component-specific torque tables, service specifications, servicing aids, and part-numbered special tools.

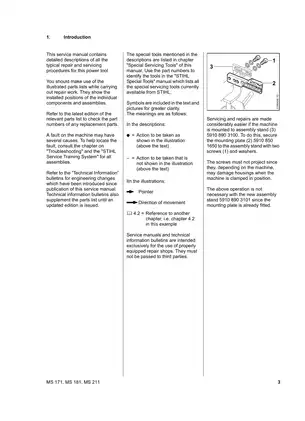

This is bench-level service information rather than an operator’s handbook. STIHL expressly identifies its service manuals and Technical Information bulletins as intended for properly equipped repair shops, so the procedures assume repair experience and access to the specified testers, pullers, installation sleeves, torque wrenches, and holding fixtures.

Mechanical and Systems Walkthrough

The troubleshooting chapter separates fault finding from disassembly. Symptom, cause, and remedy tables cover the clutch, chain drive, chain brake, chain tensioner, chain lubrication, rewind starter, ignition, carburetor, and engine. Once a fault is narrowed down, cross-references lead into the related illustrated repair section.

Configuration-specific procedures are placed where they matter. Quick-chain-tensioner hardware is handled separately from the standard tensioner, the starter chapter distinguishes standard and ErgoStart assemblies, and the fuel chapter identifies versions fitted with a manual fuel pump. The piston section also calls out the MS 171’s single-ring arrangement, preventing it from being confused with the other covered engines.

Carburetor coverage goes well beyond routine adjustment. The manual documents the metering and pump diaphragms, inlet needle, fixed and valve jets, fuel strainer, air valve, choke shaft, throttle shaft, adjusting screws, limiter cap, and linkage. Intake-manifold sealing, tank ventilation, fuel pickup parts, and hose routing are tied into the associated leakage and running-fault checks.

Diagnostics, Tools, and Visual References

Electrical coverage centers on the ignition and stop-circuit hardware: ignition-module installation and air-gap setting, fixed ignition timing, spark testing, flywheel inspection, spark-plug boot service, and diagnosis of the short-circuit and ground-wire harness. The PDF contains an ignition-system troubleshooting flowchart, but it is not a full wiring-diagram set.

Named exploded drawings in the appended MS 181 catalog include Engine housing ErgoStart/Easy2Start, Hand guard, Chain brake, Quick chain tensioner, Air filter, Manifold, and the Carburetor C1Q-S121B and C1Q-S122B assemblies. The service-tool section identifies equipment such as test flange 1139 893 2500, carburetor and engine tester 0000 850 1300, setting gauge 1111 890 6400, and ZAT 3/ZAT 4 ignition testers 5910 850 4520 and 5910 850 4503.

File Composition and Scope

The PDF contains 328 pages total: the 102-page MS 171/MS 181/MS 211 service manual; a 50-page HS 75/80/85 parts list; a 50-page HT 100/101 parts catalog; two identical 24-page copies of the MS 170/MS 170 C parts list; two identical 24-page copies of the MS 180/MS 180 C parts list; and a 30-page MS 181/MS 181 C parts catalog. Only the first 102 pages are repair procedures for the title-model family; the remaining pages are illustrated parts material, including unrelated equipment and duplicated sections.

The MS 181 catalog also identifies MS 181 C-BE, MS 181-Z, and MS 181 C-BE Z configurations. No corresponding illustrated parts catalog for the MS 171 or MS 211 is included, and the service manual directs shops to use the latest applicable parts list when selecting replacement part numbers.

Coverage is tied to the 2007-05 edition, not to a stated serial-number range. Engineering changes issued after that date are handled through separate STIHL Technical Information bulletins rather than incorporated into this PDF.

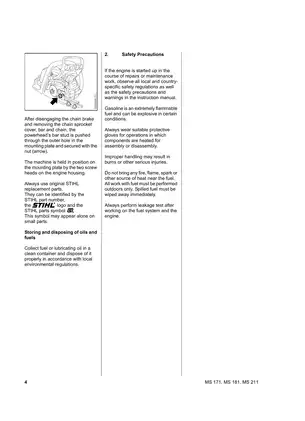

Repair Cautions and Safety

The torque section flags DG and P fasteners that form threads in polymer and light-metal housings; careless re-entry or incorrect tightening can damage those threads. During carburetor repair, the high-speed limiter cap is treated as a replacement item, and pressing it against the carburetor body can damage it.

Fuel work must be performed away from ignition sources, and the manual requires a leakage test after fuel-system or engine repairs. Ignition testing also involves a high-voltage shock hazard, while chain-brake work must preserve the operation of the saw’s primary chain-stopping safety device.
