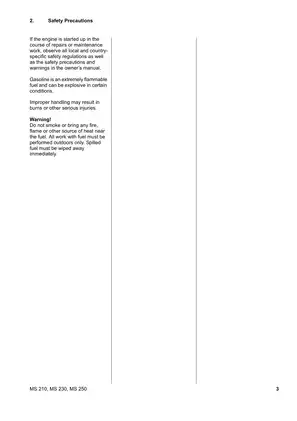

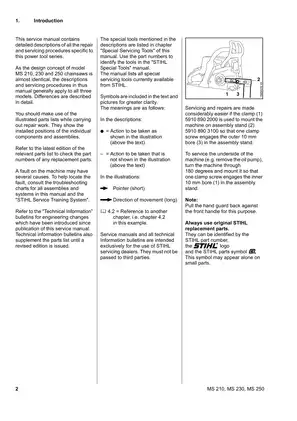

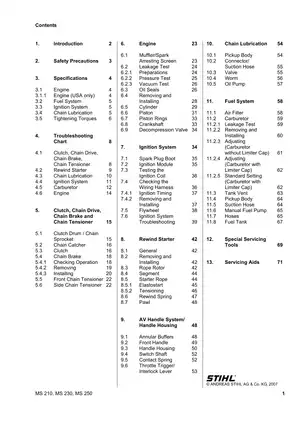

2003–2007 STIHL MS 210, MS 230, MS 250 Chainsaw Service Manual & Parts Lists (P/N 0455 208 0123)

STIHL service manual 0455 208 0123, © 2007 ANDREAS STIHL AG & Co. KG, covers the MS 210, MS 230, and MS 250 chainsaws in the 1123 series. Illustrated parts lists accompany the repair instructions. The additional MS 211/MS 211 C material provides parts identification only.

• Engine repair: Engine removal, cylinder and piston inspection, crankshaft and engine pan assembly, oil seal replacement, and decompression valve service.

• Fuel system: Carburetor leak testing, removal and adjustment with or without limiter caps, plus tank vent, manual fuel pump, and hose service.

• Ignition diagnosis: Ignition coil spark tests, wiring harness checks, ignition module and flywheel replacement, and an ignition troubleshooting flowchart.

• Clutch and chain brake: Clutch disassembly, clutch drum and sprocket inspection, chain catcher replacement, brake operation checks, and front and side chain tensioner service.

• Chain lubrication: Oil supply troubleshooting, pickup body and suction hose service, tank vent valve replacement, worm drive work, and oil pump removal and installation.

• Rewind starter: Rope rotor and pawl repair, starter rope replacement, ElastoStart grip service, and rewind spring replacement and tensioning.

• AV handles and controls: Annular buffer replacement, front handle and handle housing removal, plus switch shaft, contact spring, throttle trigger, and interlock work.

The service manual was written for STIHL servicing dealers and calls for dedicated leak-test equipment, ignition testers, and assembly tools.

Engine Repair and Leak Diagnosis

Pressure and vacuum tests help distinguish engine air leaks from carburetor adjustment problems when a saw idles poorly or hesitates under throttle. The vacuum test addresses oil seals that leak during the induction stroke, giving the technician a way to investigate these symptoms before an internal engine teardown.

The internal repair sections distinguish the replaceable small-end needle bearing on the MS 230 and MS 250 from the MS 210 arrangement. They also identify different oil seal designs for an assembled engine versus a removed crankshaft. The seal-removal instructions warn that careless puller use can damage the crankshaft stub.

Carburetors and Fuel Delivery

Troubleshooting charts connect flooding, poor acceleration, and loss of power with inlet needle, diaphragm, fuel pickup, and tank ventilation faults. Hose illustrations distinguish machines with and without a manual fuel pump, with a separate hose specification for non-EU versions fitted with the pump.

The parts list assigns the C1Q-S87B carburetor to the MS 210 and the C1Q-S85B to the MS 230/MS 250. Separate entries identify easy-start, ErgoStart, USA, CDN, and AUS configurations, helping match the installed carburetor before selecting parts.

Ignition Testing and Electrical References

The three-page Ignition System Troubleshooting flowchart covers the spark plug, flywheel, short circuit wire, and Master Control lever. Spark testing uses the ZAT 3 or ZAT 4 tester; the manual distinguishes this test from ignition timing, which is not adjustable.

Electrical illustrations show tester connections, wiring locations, and ignition components. A standalone electrical circuit schematic is not included.

Starter Variants and Chain Tensioners

The parts plates distinguish the standard rewind starter from the ErgoStart assembly and identify C-model components. The service chapters document the conventional rewind starter and ElastoStart grip; the ErgoStart-specific assembly is detailed in the parts illustrations.

For quick chain tensioner models, the engine-housing replacement section explains the different rear guide-bar mounting stud arrangement. It warns that excessive stud-puller speed can damage the housing thread.

Specifications, Tools, and Exploded Views

Technical references provide component-specific torque values, leak-test pressures, ignition air-gap specifications, electrical resistance checks, and clutch drum and brake band wear limits. The tool list identifies the carburetor and crankcase tester 1106 850 2905 and oil pump installing tool 1123 890 2201, with their applications.

Named parts plates include Shortblock MS 250, Oil pump, Chain brake, and Fan housing with rewind starter ErgoStart. Carburetor exploded views, a clutch drum wear cross-section, assembly drawings, and tool illustrations support component identification and reassembly.

Working on gas-powered equipment carries inherent risks; follow the manual's precautions for fuel handling, ignition testing, and chain brake work.

PDF Contents and Navigation

Service text and parts tables are searchable, but callout numbers within the MS 211 drawing images are not. Embedded bookmarks provide detailed service-chapter navigation and entry points to the parts lists. The 208-page PDF contains 74 service-manual pages, including the front and back covers and one otherwise blank page; a 52-page MS 210/230/250 parts list; a 30-page MS 211/MS 211 C parts list; and a second, identical 52-page copy of the MS 210/230/250 parts list, all included in the total.
