Ford 3230, 3430, 3930, 4630 & 4830 Tractor Shop Manual Extract (1990–1999)
126 Pages • 1 Printable PDF (English) • Download
Ford Models Covered & Key Technical Specifications
Models: 3230, 3430, 3930, 4630, 4830
Sub-models / Variants: Two-Wheel Drive, Four-Wheel Drive (mechanically engaged transfer gearbox on 3230/3430/3930; solenoid/hydraulically engaged transfer gearbox on 4630/4830), Row Crop, Standard Tread, Narrow Tread, With Cab, Without Cab, Constant Mesh Transmission, Synchronized Transmission, Synchronized Transmission with Dual Power
Model Years: 1990–1999 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)
-
Engine Configuration: 3-cylinder (3230, 3430, 3930, 4630); 4-cylinder (4830)
-
Displacement: 3147 cc (192 cid) for 3230/3430; 3294 cc (201 cid) for 3930/4630; 4186 cc (256 cid) for 4830
-
Rated Speed: 2000 RPM (3230, 3430, 3930); 2200 RPM (4630, 4830)
-
Transmission Options: Constant Mesh (8x2; optional dealer-installed 5.7:1 or 10:1 reduction/creeper gearbox), Synchronized (8x8; 3430, 3930, 4630, 4830), Synchronized with Dual Power (16x8; 3430, 3930, 4630, 4830)
-
Cooling System Capacity (With Cab/Heater): 11.4 L (3230-3930), 11.6 L (4630), 13.5 L (4830)
-
Crankcase Oil Capacity (With Filter): 6.6 L (3230-4630); 7.7 L (4830)
-
Steering Systems: Manual, Power, Hydrostatic
-
Final Drive: Rear axle planetary reduction; planetary front wheel hubs on four-wheel-drive models
Ford Manual Features & Selected Content Preview
This shop manual extract covers repair and service for the 1990–1999 Ford 3230, 3430, 3930, 4630, and 4830 tractors, including two-wheel-drive, four-wheel-drive, cab, and non-cab configurations. It runs from the index through paragraph 198 on hydraulic pump overhaul.
Searchable Text, Bookmarks, and PDF Contents
Finding procedures and figure details: The embedded OCR text layer supports keyword searches, though recognition errors can affect individual terms. PDF bookmarks cover the main service sections, with some opening on the preceding page. Small labels in the PTO drawings are easier to read when zoomed in.

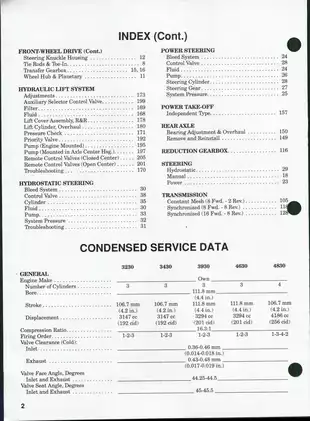

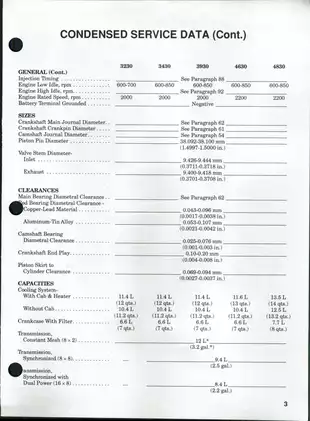

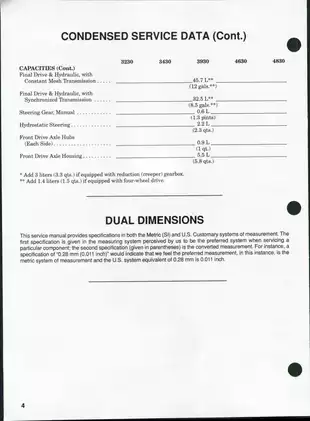

The download contains one printable, English-language PDF with 126 pages, including the original index, service-data tables, and repair procedures through the axle-mounted hydraulic pump overhaul.
Diesel Engine, Drivetrain, and Hydraulic Service
The highlights below give a sample of the repair coverage. The extract also covers crankshaft oil seal replacement and front driveshaft service for standard and waterproof assemblies.
- Engine repair: Tractor splitting, cylinder-head service, valve adjustment, timing-gear alignment, piston and bearing inspection, and dynamic engine balancer service.
- Diesel fuel and cooling: Fuel-system troubleshooting and bleeding, injector testing and overhaul, injection pump removal and timing alignment, thermostat checks, radiator removal, and water pump repair.
- Clutch and transmission: Engine clutch adjustment, constant-mesh and synchronized Shuttle Shift overhaul, reduction and creeper gearbox service, and Dual Power clutch pack inspection.
- Axles, steering, and brakes: Carraro front-drive axle service, planetary hubs, manual, power, and hydrostatic steering, differential lock adjustment, and wet-disc rear brake overhaul.
- Hydraulic lift: Pressure checks, draft and position control adjustments, lift cylinder and valve service, priority valve overhaul, and separate procedures for engine-mounted and axle-mounted pumps.
- Independent PTO: Symptom-based troubleshooting, hydraulic pressure tests, clutch and brake overhaul, end-play adjustment, and output shaft service.
- Electrical components: Alternator and regulator specifications, starter drive adjustment, and loaded and no-load starter test data.
Suited to mechanics familiar with tractor splitting and internal component inspection, with access to lifting equipment, pressure gauges, and precision measuring tools.
Pistons, Bearings, and Timing Gears
The engine section distinguishes the head-land piston ring arrangement on some 4630 tractors from conventional rings. It also covers copper-lead and aluminum-tin bearing liners and the dynamic balancer used on the four-cylinder engine.
With the rocker arms still installed, turning the camshaft or crankshaft independently during timing gear service can damage the pistons or valvetrain.
Diesel Injector Testing and Cooling System Repair
Step-by-step injector procedures cover opening pressure, spray pattern, seat leakage, and leak-back. Illustrations identify the DPA and DSP pump adjustments. The manual directs internal pump timing to an injection pump service shop with the necessary equipment.
Cooling service covers thermostat opening specifications and water pump shaft, seal, and impeller assembly details.
Cab Clutches, Shuttle Shift, and Dual Power
Cab models use a serviceable coil-spring pressure plate. The diaphragm pressure plate on non-cab models is serviced as a complete assembly. The manual illustrates release-lever gauging with Nuday SW12B tools.
The transmission sections cover shift rails, synchronizers, shaft bearings, and shim selection. Separate clearances guide inspection of the Dual Power direct-drive and underdrive clutch packs. Forcing the front housing onto the input shaft can damage a seal ring that has slipped out of its groove.

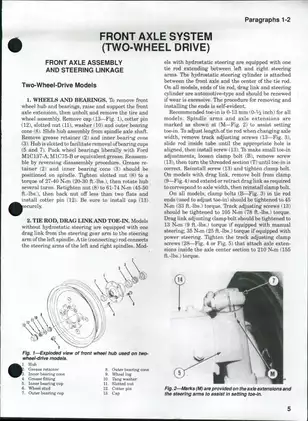

Front Drive, Steering, and Rear Axle Repairs
The transfer gearbox procedures are split by engagement type. Some 4630 and 4830 tractors also have a transfer gearbox brake covered in the brake section. Standard- and narrow-tread models have separate steering cylinder procedures.
Rear axle coverage includes final-drive gear service and differential carrier bearing preload, with Churchill FT.4501 (SW.7) or Nuday 2141 (SW.505) measuring tools identified for the preload check. A power steering control valve cross section shows the internal valve layout.
Hydraulic Lift and Independent PTO Diagnosis
Pressure checks help distinguish low pump output from lift cylinder or valve leaks when the hitch lifts slowly under load or fails to lift. The lift cylinder section covers control, unloading, and feathering valves, including control valve bushing and spool selection.
The independent PTO schematic shows the power path, and the brake and clutch cross section traces oil flow. The pressure checks help narrow a PTO slip complaint to the hydraulic supply or the clutch pack before teardown.
Electrical Coverage and Sections Outside the Extract
The electrical section includes an exploded alternator view, a rear terminal identification drawing, and starter inspection data. The wiring diagrams, dedicated cab service procedures, auxiliary selector valve chapter, and open- and closed-center remote control valve chapters appear in the index and fall outside this extract.
Valve Clearance and Fastener Data: A Short Preview
Cold intake valve clearance is 0.36–0.46 mm. The cylinder-head section pairs its bolt sequence diagram with a three-stage cold-engine tightening specification of 122, 135, and 149 N·m.
Front support retaining screw torque depends on oil pan construction. The manual specifies 339–420 N·m with a stamped pan and 240–298 N·m with a cast pan.
