1970s–1980s International Harvester Hydro 100, Hydro 186, 1466, 1468, 1486, 1566, 1568 & 1586 Tractor Shop Manual

This shop manual covers 1970s–1980s International Harvester Hydro 100, Hydro 186, 1466, 1468, 1486, 1566, 1568, and 1586 diesel tractors with gear-drive or hydrostatic transmissions.

• Engine repair: Cylinder head service, piston and ring replacement, six-cylinder wet-sleeve renewal, crankshaft inspection, lubrication system repair, and cooling system service.

• Fuel injection and turbochargers: American Bosch and Robert Bosch pump timing, injector nozzle testing, control linkage adjustments, and AiResearch and Schwitzer turbocharger service.

• Gear-drive powertrain: Clutch and Torque Amplifier overhaul, linkage adjustments, transmission brake service, speed and range transmission repairs, differential setup, and final drives.

• Hydrostatic drive: Pressure checks, external control isolation tests, pump and motor overhaul, servo controls, Foot-N-Inch valve diagnosis, and charge-flow charts.

• Steering and hydraulics: Multiple control valve service, power steering repairs, hydraulic lift adjustments, auxiliary valves, and separate procedures for PFC-equipped systems.

• Brakes and independent PTO: Model-specific dry and wet brake service, PTO clutch overhaul, operating-pressure checks, and removal precautions for internal oil pickup components.

• Electrical systems: Delco-Remy alternator testing and overhaul, regulator checks, rotor and stator inspection, and starter motor and solenoid test specifications.

The procedures suit experienced tractor mechanics equipped for tractor splitting, precision measurement, and hydraulic pressure testing, with dedicated service tools required for some operations.

Diesel Engine and Cooling System Service

The engine sections distinguish the D-436 and DT436 six-cylinder engines from the DV-550B V8. Coverage includes cylinder head service, valve inspection, piston replacement, crankshaft main-journal and camshaft measurements, bearing clearances, and torque specifications.

Cylinder construction: Wet-sleeve replacement applies to the six-cylinder engines; the V8 uses unsleeved cylinder bores. Cylinder head bolt tightening sequences, valve adjustment charts, and gear-train timing illustrations accompany the relevant procedures.

Cooling system coverage includes radiator removal, water-pump service, fan and belt checks, and coolant filter service.

Injection Timing and Turbocharger Repairs

American Bosch rotary-distributor and Robert Bosch in-line injection pump coverage includes removal, installation, static timing, and control adjustments. Injector nozzle testing and overhaul are also covered; internal injection pump overhaul is outside the manual’s scope.

The turbocharger section covers AiResearch and Schwitzer units, including rotor inspection, bearing checks, disassembly, and reassembly. Intake and exhaust pressure checks provide additional diagnostic context.

Clutch, Torque Amplifier, and Gear Transmissions

The manual details clutch service, hydraulic clutch assistance, Torque Amplifier linkages, and transmission brake adjustments. Speed and range transmission sections include disassembly, bearing setup, gear-train clearances, and reassembly checks.

Cross-sectional views of the T.A. clutches and exploded assembly drawings show internal component relationships. Differential service includes pinion and bearing adjustments, with separate coverage for bull-gear and planetary final-drive arrangements.

Hydrostatic Diagnosis and Hydraulic Repairs

Hydrostatic fault isolation: Dedicated tests distinguish external drive-control and Foot-N-Inch valve problems from faults inside the hydrostatic unit. This distinction helps determine whether the problem calls for control-system service or internal pump and motor work.

Hydrostatic pump, motor, servo, and center-section repairs are supported by component drawings and charge-flow charts. The manual also covers system cleaning after an overhaul.

Steering and lift systems: Coverage includes Ross steering control units, Cessna and Thompson pumps, the multiple control valve, hydraulic lift controls, and auxiliary valves. PFC-equipped tractors have separate pressure-and-flow tests, pump overhaul procedures, and compensator service instructions.

Brakes, PTO, and Tractor Access

Brake procedures distinguish the dry-disc and wet-disc arrangements used across the covered models. Independent PTO coverage includes clutch inspection, operating-pressure tests, removal, and overhaul.

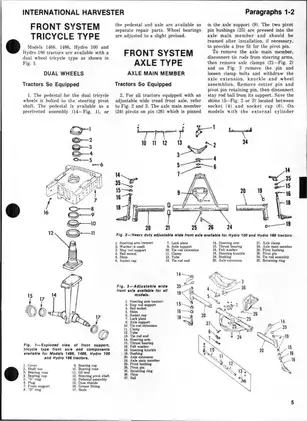

Front-axle and all-wheel-drive sections cover wheel and pivot bearings, the front differential, and the transfer case. Separate procedures address Deluxe and Custom cab removal and Control Center removal.

Charging and Starting System Tests

The electrical section covers Delcotron alternators with internal regulators, including rotor, stator, diode, and regulator checks. Illustrations identify alternator terminals and test points; starter and solenoid specifications supplement these procedures.

Electrical coverage focuses on component testing and repair rather than complete tractor wiring diagrams.

Workshop Pitfalls and Handling Precautions

Incorrect PTO positioning during removal can damage the oil inlet tube and screen. Installing the Torque Amplifier’s one-way clutch backward prevents the T.A. from operating.

Proper support for split tractor sections and pressure relief before opening hydraulic lines remain essential.

Selected Valve Clearances and Alternator Test Data

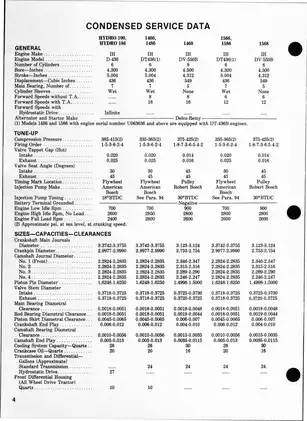

The valve specifications distinguish the engine families: D-436 and DT436 six-cylinder engines have warm valve tappet gaps of 0.020 in. at the intake and 0.025 in. at the exhaust. For the DV-550B V8, the listed gaps are 0.014 in. intake and 0.016 in. exhaust, hot or cold.

The electrical section specifies 5.3–5.9 ohms between the Delcotron rotor’s slip rings during winding-resistance testing.

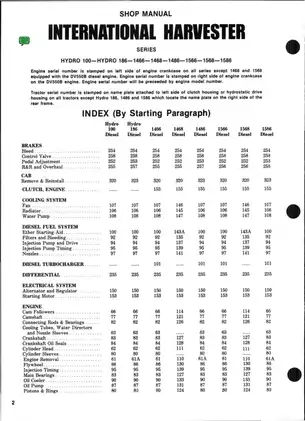

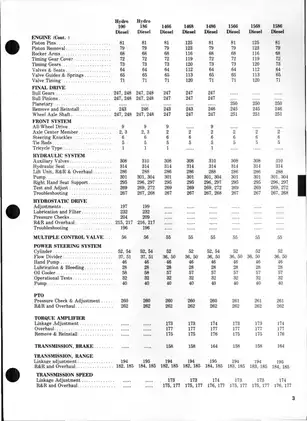

Text Search, Bookmarks, and PDF Contents

Search and diagram detail: Text search is available across the manual pages, although OCR errors can affect matches. Section bookmarks are included, with some imprecise destinations. Small labels in the hydraulic-seat schematic and electrical test illustrations are readable when enlarged.

Supplied as one printable, English-language 126-page PDF, comprising 125 pages of manual content and one additional cover page.
