Ford 2810, 2910, 3910 Diesel Utility Tractor Service Manual (1983–1990)
93 Pages • 1 Printable PDF (English) • Download
Ford Models Covered & Key Technical Specifications
Models: 2810, 2910, 3910
Sub-models / Variants: Two-Wheel Drive, Front-Wheel Drive, Manual Steering, Power Steering, Models with Cab, Models without Cab, Eight-Speed (Non-Synchromesh), Eight-Speed (Synchromesh), Manual Reversing Six-Speed
Model Years: 1983–1990 (1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990)
-
Engine: 3-cylinder Diesel
-
2810 Displacement: 158 cu. in. (2589 cc)
-
2910 Displacement: 175 cu. in. (2868 cc)
-
3910 Displacement: 192 cu. in. (3146 cc)
-
Cooling System Capacity (without heater): 11 U.S. quarts (10.4 L)
-
Crankcase Capacity (with filter): 7 U.S. quarts (6.62 L)
-
Main Bearing Diametral Clearance: 0.0022–0.0045 inch (0.056–0.114 mm)
-
Compression Pressure Range: 300–400 psi (2070–2760 kPa)
Ford Manual Features & Selected Content Preview
This shop manual covers the 1983–1990 Ford 2810, 2910, and 3910 diesel utility tractors. It includes two-wheel-drive and front-wheel-drive configurations, manual and power steering, and tractors with or without a cab.
Searchable PDF and Printed Index
Search and diagram detail: The PDF has searchable OCR text with some recognition errors and 20 numbered bookmarks. The printed index points to paragraph numbers. The small legend in the hydraulic circuit schematic is readable when zoomed in.

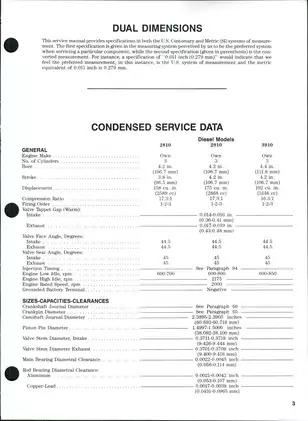

The download is one printable, English-language PDF with 93 pages, including 14 repeated pages. The first page in the file is the manual’s title and index page, numbered 2 in print.
Tractor Repairs and Diagnostic Checks
The workshop topics below are a selection. The manual also covers two-wheel-drive front spindle bushing replacement and toe-in adjustment.
-
Engine and cooling: Compression checks, cylinder head and piston service, crankshaft and oil pump work, valve adjustment, timing gear inspection, and radiator and water pump service.
-
Diesel fuel system: Symptom-based troubleshooting, fuel-system bleeding, CAV injector nozzle testing and overhaul, and injection pump removal, installation, and timing.
-

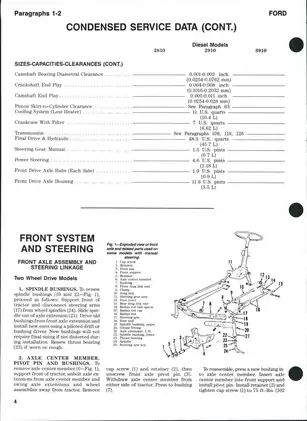

Steering and front axle: Manual steering gear and power steering pump overhaul, pressure checks and bleeding, plus front-drive axle and planetary hub service.
-
Transmission and clutch: Overhaul procedures for the synchromesh and non-synchromesh eight-speed and manual reversing six-speed transmissions, plus clutch pedal adjustment and optional creeper gearbox repair.
-
Rear axle, brakes, and PTO: Differential and planetary final-drive service, wet-disc brake overhaul, and repair of transmission-type and independent power take-offs.
-
Hydraulic lift: Main and auxiliary pump tests, pump overhaul, draft and position control adjustments, lift-cylinder service, and remote valve overhaul.
-
Charging and starting: Motorola alternator and regulator specifications, starter load and no-load test data, and starter drive pinion clearance adjustment.
This manual is suited to mechanics familiar with tractor disassembly and precision measurement. Injector testing and hydraulic diagnosis require the specified workshop test equipment.
Engine and Cooling System Repair
The engine section covers cylinder sleeve installation, piston fitting, and crankshaft bearing selection. It gives separate identification data for copper-lead and aluminum-tin bearings and explains how to use red and blue markings to select a fit grade.
Timing gear drawings show alignment of the crankshaft, camshaft, and injection pump gears. During timing gear work, turning the crankshaft or camshaft independently can damage the pistons or valve train. The manual also provides the cylinder head bolt sequence and engine-to-transmission fastener torques.
Cooling system procedures include radiator removal and step-by-step instructions for water pump disassembly and reassembly. Service references include thermostat specifications, fluid capacities, wear limits, bearing clearances, and valve tappet settings.
CAV Fuel-System Testing
The troubleshooting section covers hard starting, stalling, misfiring, poor governor regulation, loss of power, and excessive black smoke. Injector checks include opening pressure, spray pattern, seat leakage, and leak-back.
The nozzle overhaul section specifies a Kent-Moore or Hartridge injector tester and the Nuday SW20 cleaning kit. Injection pump coverage includes drive gear alignment and governor and throttle linkage adjustments.
Steering, Axles, and Brakes

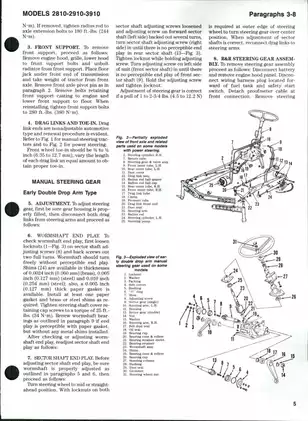

Steering procedures distinguish early and late double-drop-arm designs, single-drop-arm manual steering, and integral power assist. Section views show the relationship between the sector gears and wormshaft during assembly.
Front-wheel-drive procedures cover the drop housing, differential, swivel housing, axle shafts, and transfer gearbox. Rear axle coverage includes differential carrier bearing shim selection and planetary final-drive overhaul. The manual gives separate differential-lock and wet-disc brake linkage adjustments for tractors with and without a cab.
Transmission, Clutch, and PTO
Separate transmission sections cover shift rails, forks, gear trains, bearing adjustment, and synchronizers where fitted. The non-synchromesh gear diagram includes tooth counts, and cross-sections distinguish the creeper gearbox configurations. Clutch release lever setting calls for fixture SW12B.
For the independent PTO, operating checks relate engagement, slipping, and brake symptoms to hydraulic pressure. The pressure checks help narrow the fault to the pressure supply, control valve, or clutch pack before teardown.
Hydraulic Lift and Remote Valves
The manual distinguishes engine-mounted piston and gear pumps, internally mounted gear pumps, and engine-mounted tandem gear pumps. A hydraulic circuit schematic and piston pump cross-section accompany separate main and auxiliary pump pressure checks. Troubleshooting also covers lift failure, drift, and erratic operation.
Lift-cover and lift-cylinder service includes control, unloading, and feathering valves, with separate procedures for the priority and selector valves. Remote valve coverage distinguishes open-center single- and double-spool valves from closed-center valves fitted to some 2910 and 3910 tractors. It includes detent adjustment and quick-release coupling overhaul.
Charging and Starting Systems
Separate specifications cover the 32- and 51-amp Motorola alternators. The regulator table relates specified voltage to ambient temperature. Starter data include load and no-load test values, with pinion clearance adjustment for starters fitted with an eccentric pivot pin. A full tractor wiring diagram is not included.
Tractor Splitting and Ford Cab Access
Tractor splitting procedures distinguish cab and non-cab configurations. The dedicated cab tilting, removal, and installation procedures apply to the 3910 equipped with a Ford cab. Raising the cab too far during tilting can crack the windshield.
Support the tractor securely before splitting it and relieve hydraulic pressure before opening lines.
Sample Injector Opening Pressures and Warm Valve Settings
The CAV nozzle test specifies an opening pressure of 3,053–3,275 psi (21,050–22,580 kPa) for the 2810 and 2910 and 2,666–2,887 psi (18,380–19,910 kPa) for the 3910.
For valve adjustment on all three models, the warm tappet clearance is 0.014–0.016 in. (0.36–0.41 mm) on the intake and 0.017–0.019 in. (0.43–0.48 mm) on the exhaust.
