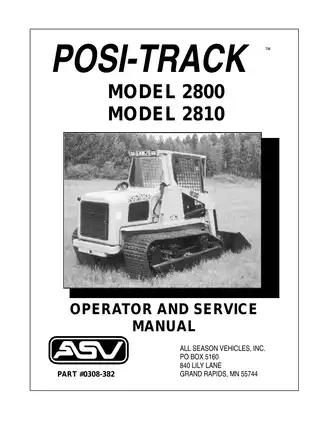

ASV POSI-TRACK 2800 & 2810 Track Loader Operator, Service & Parts Manuals (P/N 0308-382, 0308-383)

ASV's Operator and Service Manual (P/N 0308-382) and Parts Manual (P/N 0308-383) cover the POSI-TRACK 2800 and 2810 rubber track loaders, combining operating guidance, maintenance, mechanical service, troubleshooting, and illustrated parts identification.

Search, bookmarks, and wiring detail: Main text and parts lists are searchable, but text inside several diagrams and electrical troubleshooting charts is not. Bookmarks link to both manuals and the two appended schematics. Small wiring labels require zooming; some auxiliary-console labels remain difficult to read, with clearer detail in the appended electrical schematic.

• Undercarriage repair: Track removal, installation and tensioning; bogie carriage, wheel tube and end tube removal; wheel replacement and drive sprocket removal.

• Engine and cooling maintenance: Isuzu 4JB1 oil/filter service, fuel-system bleeding, air-cleaner maintenance, and radiator/oil-cooler cleaning.

• Hydraulics and final drives: Reservoir/filter service, planetary gearbox oil changes, auxiliary-circuit flow references, and drive-system troubleshooting.

• Electrical diagnosis: Starting, shutdown, seat-interlock, and loader/track fault charts, supported by wiring diagrams and harness connections.

• Parts identification: Exploded assemblies and numbered parts lists for transmission linkage, suspension axles, drive units, engine installations, and loader components.

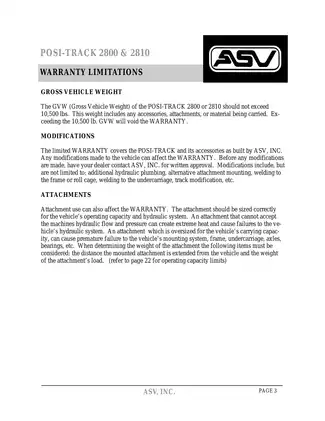

• Operation and attachments: ROPS/FOPS information, reversible-seat operation, loader lockouts, quick-attach and frame mounts, and pre-start checks.

The operator/service manual is written for operators and service personnel; the undercarriage work requires suitable lifting and support equipment.

Track, Wheel, and Final-Drive Service

Illustrations distinguish the split center wheel from the one-piece outer wheels and show the wheel-tube retaining brackets, sprocket bearing plate, and sliding planetary mount.

Track-tension guidance describes a no-sag condition between the drive sprocket and upper carrier wheels. Overtightening can damage bearings and tracks; mismatched adjustment-hole positions can misalign the sprocket and cause derailment.

Listed support equipment includes jack stands P/N 454-876 and a remote hydraulic jack with extensions P/N 455-3445.

Fuel-System Differences and Cooling Maintenance

Fuel-system instructions distinguish the 2800 and 2810 primer arrangements and their different spin-on fuel filters. The 2800 also has a fuel pre-screen identified as a possible cause of poor engine performance.

Cooling pages explain the pusher-fan airflow through the side-by-side radiator and hydraulic oil cooler, with access to these heat exchangers through the louvered grill. Engine repair coverage is routine service and fault checks; internal engine overhaul procedures are not included.

Hydraulic Filters and Auxiliary Circuits

The service instructions describe two spin-on hydraulic filters and a canister element, while the parts catalog depicts a manifold with three spin-on filters. This distinction helps match replacement filters to the installed assembly.

The High & Low Flow Auxiliary Hydraulic Circuit chart relates lever direction to coupler identification and flow at different engine speeds. Pump coverage includes parts identification, schematics, and general troubleshooting, without internal pump rebuild procedures.

Electrical Fault Tracing and Schematics

Electrical charts distinguish failure to crank, cranking without starting, failure to shut down, and loader/track interlock faults. They help distinguish a seat or neutral-circuit problem from a hydraulic fault before deeper repair work.

Wiring references include the Isuzu Engine, Relay Panel, Roll Cage, and Filter Manifold schematics, plus console, harness, and fuse-panel connections. The full hydraulic schematic traces the transmission, drive motors, brake cylinder, auxiliary pumps, and loader valve.

Parts Matching and Assembly References

The illustrated catalog separates turbo and naturally aspirated engine installations, left/right drive assemblies, and axle assemblies 0307-927, 0307-929, and 0307-931. Reference numbers connect the drawings to part descriptions, quantities, and ASV part numbers.

Servicing high-pressure hydraulic circuits and heavy undercarriages presents serious physical hazards. Follow the manual's support and isolation precautions and use appropriately qualified service personnel.

A Preview of Planetary-Drive Torque and Service Intervals

These examples are a small selection of the final-drive maintenance specifications in the operator/service manual.

The sprocket-to-planetary lug nuts are specified at 115 ft-lb, including the retorque check after the first 10 operating hours.

The planetary gearbox's first oil change is due at 50 hours. Subsequent changes are specified every 1,000 hours or annually, whichever comes first.

Combined PDF and Included Pages

The download is one printable, English-language, 128-page PDF: 64 pages for the operator/service manual, 61 for the parts manual, two appended schematic sheets, and one preliminary page. The manual totals already include their covers, contents pages, service logs, and notes pages.
