ASV SR-70 / SR-80 Rubber Track Loader Operation and Maintenance Manual (P/N ASVSR1OM-02, 2045-830)

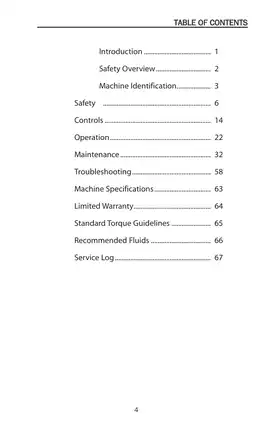

• 250-page factory PDF set — 72-page Operation and Maintenance Manual, document code ASVSR1OM-02 (9/06); 144-page Service Manual, P/N 2045-830 (06/07); and 34-page SR-80 Master Parts Manual, P/N 2046-023 (9/07).
• Coverage is split by document: the operation and service manuals apply to SR-70 and SR-80 loaders. The exploded parts catalog is SR-80 only, covering SEA/MP-2 and SEB/MP-1 builds from serial 00101 through machines current at the September 2007 print date.
• Covers removal and installation of the hydraulic reservoir, charge and auxiliary pumps, tandem drive pump, drive motors, Perkins engine, radiator/oil cooler, fuel tank, lift and bucket cylinders, quick-attach components, pilot controls, and operator-enclosure parts.
• Provides disassembly and assembly procedures for hydraulic cylinders, the lift-arm control valve, drive-motor brake and motor sections, drive pump, and auxiliary pump, with pressure, flow, adjustment, and troubleshooting coverage.
• Details track removal and installation, drive-sprocket roller service, SR-specific idler and bogie-wheel work, idler-hub rebuilding, metal face-seal handling, and the related ASV service tools.
• Supplies named hydraulic circuit and control-routing drawings plus serial-specific exploded views and parts lists for 26 major SR-80 assemblies, including optional enclosed-cab, air-conditioning, heater, and manual or hydraulic quick-attach configurations.

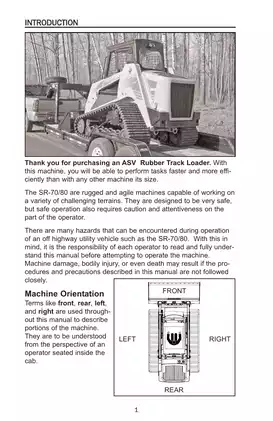

Operational Capabilities and Controls

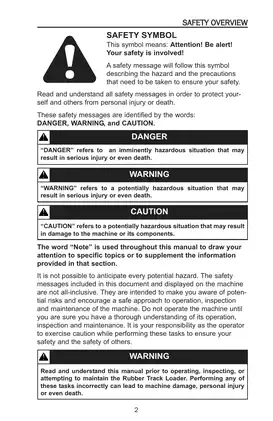

The operation manual explains the instrument display, three switch panels, pilot-operated drive and loader joysticks, float control, foot throttle, electrical attachment buttons, and high- and low-flow auxiliary hydraulics. It separates variable low-flow operation from continuous flow and describes the interlock that prevents high flow from being selected through the low-flow couplers. The SR-80 two-speed drive and power quick attach receive their own coverage; power quick attach is standard on the SR-80 and optional on the SR-70.

Operating topics run from the pre-operation inspection, glow-plug preheat, and starting routine through bucket filling, grading, leveling, truck loading, hillside work, turf operation, and attachment changes. The manual also connects control use to component life, including warnings against using full dump angle for digging or grading and against mismatching an attachment to the available auxiliary flow.

Maintenance, Diagnosis, and Repair Depth

Maintenance coverage includes the lift-arm brace, tilt-up ROPS/FOPS cab, approved jacking points, lubrication, track tension, cooling-pack cleaning, air and fuel filtration, belt service, engine and hydraulic oil service, fuse checks, undercarriage cleaning, track replacement, and drive-sprocket rollers. The schedule spans daily inspections through periodic oil, filter, and coolant service. Reference sections provide model-specific specifications, critical torque tables, cycle-time checks, fluid capacities, approved lubricants, wear criteria, and hydraulic pressure and flow charts.

Hydraulic diagnosis is organized around contamination inspection, charge and auxiliary pressure checks, lift-arm and drive-pressure testing, Posi-Power adjustment, auxiliary flow testing, and symptom-based troubleshooting. ASV identifies jack stands P/N 0402-900, test gauge kit P/N 0402-935, and service cart P/N 0402-871, plus model-specific hub press tools.

The Perkins 804C-33T chapter covers machine-side engine removal and installation plus the battery, exhaust, and air-cleaner assemblies. It is not an internal Perkins engine overhaul manual; engine-specific faults beyond the machine-side checks are directed to a Perkins repair facility.

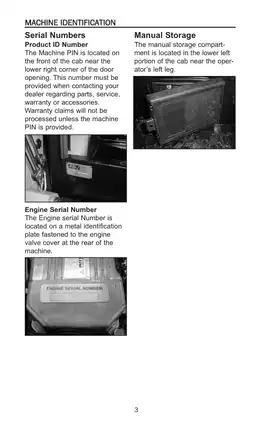

Serial-Specific SR-80 Parts Coverage

The parts manual separates SEA/MP-2 and SEB/MP-1 configurations by build. It identifies the SEA enclosed-cab change at serial 00838, engine and main-harness changes at SEA 00129, and another pillar/main-harness change at SEA 00440. It also calls out early ROPS and window differences, lap-bar updates, welded-versus-bolt-on hood hinges, MP-1 and MP-2 quick-attach configurations, track-width options, and opposite heater-cable operation on MP-1 machines.

Two repair traps are especially useful when ordering parts or planning shop work. Early SEA bucket/tilt cylinders through serial 00144 cannot be mixed with the current design; conversion requires a matched pair. During lift-arm control-valve repair, the main spools and load-check spools must return to their original positions because the similar-looking pieces are not interchangeable and affect bucket-positioning function.

Circuit Diagrams and File Scope

Named factory references include the SR-70/SR-80 Hydraulic Charge Circuit, Hydraulic Auxiliary Circuit, Hydraulic Drive Circuit, Lift Arm Control Valve, Hydraulic Pilot Generation Block, and Electrical Attachment Outlet. Control hose-routing views and exploded SR-80 drawings support diagnosis and parts identification.

The service-manual contents page lists separate Section 20-2 Electrical Schematic and Section 20-3 Hydraulic Schematic sheets, but the 144-page service PDF ends after Section 20-1 and the back cover. The Chapter 3 circuit diagrams named above are present; those two listed supplement sheets are not. No SR-70 parts catalog is included. Before working beneath raised lift arms or opening the hydraulic system, mechanically support the lift arms, relieve stored pressure, and use personnel qualified for the repair involved.
