Caterpillar D7G Bulldozer Repair & Parts Manual Set, 1973–1991 (P/N TM 5-2410-237-23)
2,508 Pages • ZIP Download: 2 Printable PDFs • 29.33 MB
Caterpillar Models Covered & Key Technical Specifications
Models: D7G
Sub-models / Variants: Tractor with Ripper (NSN 2410-01-223-0350; EIC EAZ; UOC RIP), Tractor with Winch (NSN 2410-01-223-7261; EIC EBM; UOC WIN), Tractor with Ripper and Winterized Cab (NSN 2410-01-253-2118; EIC EBW; UOC GRC), Tractor with Winch and Winterized Cab (NSN 2410-01-253-2117; EIC EBV; UOC GWC)
Model Years: 1973–1991 (1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991)
Serial Numbers: SLEP tractors: serial-number suffix R; 3ZD01124 THRU 3ZD01213 applies to flywheel-housing taper-lock stud 2D8154 (Figure 6, item 7).
-
Engine configuration: Caterpillar 3306, in-line 6-cylinder diesel
-
Engine displacement: 638 ci
-
Engine capacity: 10.5 L
-
Output: 200 hp @ 2000 rpm
-
Transmission: Caterpillar powershift, manually controlled; neutral, 3 forward speeds and 3 reverse speeds
Caterpillar Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Field Maintenance Manual — P/N TM 5-2410-237-23. Caterpillar D7G Army tractors: ripper (NSN 2410-01-223-0350), winch (NSN 2410-01-223-7261), ripper with winterized cab (NSN 2410-01-253-2118), and winch with winterized cab (NSN 2410-01-253-2117). July 15, 2005 edition with Change 1 dated July 28, 2006. | 1,689 |

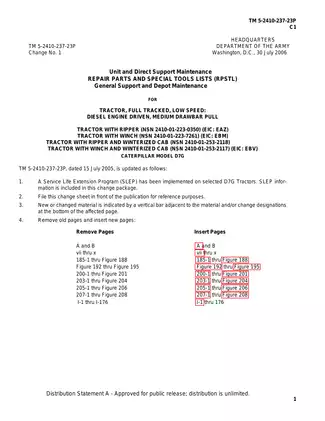

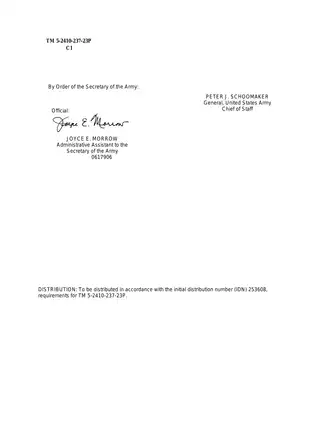

| Repair Parts and Special Tools Lists (RPSTL) — P/N TM 5-2410-237-23P. Covers the same D7G configurations. July 15, 2005 edition with Change 1 dated July 30, 2006. | 819 |
Use the maintenance procedures alongside the illustrated parts lists to connect repair work with component identification and configuration-specific parts.
Both non-SLEP and SLEP tractors are addressed. Select these Army publications by equipment configuration and NSN; the operator’s manual, TM 5-2410-237-10, is a separate publication and is not included.
PDF Files and Navigation
Text search and diagram viewing: Maintenance instructions and parts listings have searchable text, but not all labels within diagram graphics are searchable. Neither PDF has embedded bookmarks. Small electrical and hydraulic schematic labels are readable when enlarged.

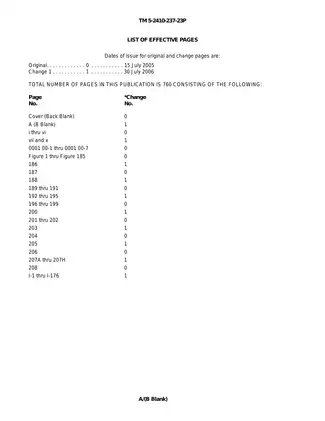

The ZIP download contains two printable PDFs totaling 2,508 pages, including one appended supplementary page in each file. Original covers, change sheets, forms, and blank pages are also included in these totals.
Engine, Drivetrain, and Implement Repair
The following selected coverage highlights outline the major workshop areas. Other topics include service-upon-receipt checks and preparation for storage and shipment.
- Engine and fuel system: Engine removal, cylinder-head replacement, valve adjustment, injection timing, and sustainment-level repair of internal engine and fuel-system components.
- Powertrain and steering: Torque-divider and transmission repair, hydraulic pressure tests, final-drive service, steering-clutch work, and brake-control maintenance.
- Undercarriage: Track inspection and adjustment, recoil-spring replacement, track-adjuster service, and replacement of rollers, idlers, sprockets, and track frames.
- Hydraulics and winch: Pump, control-valve, and cylinder repair; blade and ripper circuit tests; Model 57 winch pressure testing and internal repair.
- Electrical troubleshooting: Symptom-based fault finding, STE/ICE DCA and TK mode GO/NO-GO chain tests, wiring maintenance, and electrical schematics.
- Cab and work equipment: Winterized-cab and ROPS work, blade and pusharm replacement, armor-package installation, mine-clearing-rake mounting provisions, and air-conditioning service.
This set is suited to experienced heavy-equipment technicians with access to suitable lifting equipment, hydraulic test instruments, and the job-specific fixtures identified in the procedures.
Engine and Fuel-System Repair
Step-by-step engine procedures cover removal and installation, cylinder-head and spacer-plate replacement, crankshaft seals, flywheel and flywheel-housing work, lubrication components, and accessory drives.
Sustainment packages extend to valves, cylinder liners, crankshaft and bearings, pistons and connecting rods, camshaft and camshaft bearings, timing gears, and engine oil-pump repair.
Fuel-system work adds cylinder cutout testing, injector and line replacement, transfer and priming pumps, governor controls, and injection-pump timing and adjustment. Separate packages cover injection-pump housing, governor, and turbocharger repair.
Valve-mechanism and cylinder-head cautions identify the risk of flywheel and housing damage from a retained timing bolt, and valve damage from setting a removed cylinder head flat.
Cooling-System and SLEP Differences
Non-SLEP tractors use a folded-core radiator and fixed cooling fan; SLEP tractors use a modular radiator and reversible fan. SLEP machines are identified by an R serial-number suffix.
These distinctions help match cooling-system work and replacement parts to the tractor’s actual configuration. Procedures cover radiator pressure testing, water-pump replacement, and fan-drive maintenance.
Transmission, Final Drives, and Tracks
Internal transmission work reaches clutch assemblies, selector and pressure-control valves, and the oil pump. Related procedures address transfer gearing, the bevel gear, final-drive bearing adjustment, steering-clutch hubs, and brake mechanisms.
Undercarriage sections include track-adjuster cylinders, recoil springs, track assemblies, and track-frame alignment. Final-drive Duo-Cone seals must remain matched pairs with clean contact faces; mixed or contaminated halves can fail and leak.
Hydraulics, Winch, and Cab Equipment
Hydraulic procedures address lines and fittings, filters, the tank, blade lift and tilt cylinders, ripper cylinders, pilot valves, and pressure-control valves. Operational tests include blade and ripper circuit-speed checks.
Winch-equipped tractors receive dedicated Model 57 coverage for clutches, control valves, gear-pump replacement, linkage adjustment, wire rope, and assembly repair.
Configuration-specific work includes winterized-cab maintenance, ROPS replacement, protective-screen bracket welding, and MCAP armor installation. The mine-rake procedure covers mounting-ear installation on the blade moldboard. Air-conditioning packages address installation, filter service, and refrigerant servicing.
Schematics, Parts Identification, and Tooling
Electrical diagnosis includes continuity, short-circuit, voltage, and resistance guidance. STE/ICE procedures use the corresponding diagnostic equipment.
Visual references include the two-sheet Electrical Schematic, two-sheet Hydraulic Schematic, five-sheet Electrical System Group Schematic, Bulldozer Blade and Ripper Hydraulic System Components, and Blade Control Valve Components. The RPSTL adds the Planetary Transmission exploded view and configuration-specific assembly illustrations.
The RPSTL links illustration items to NSNs, CAGEC entries, manufacturer part numbers, quantities, SMR codes, and UOCs WIN, RIP, GRC, and GWC. Uncoded entries apply to all covered configurations. NSN and part-number indexes support cross-referencing, with repair kits, bulk materiel, and canceled or replaced part-number guidance. Repair-parts illustrations run through Figure 214; special tools appear in Figures 215–217.
Tool references include the 8S2243 injector-pump removal wrench, 6V9128 fuel-injector tool kit, 1P2420 transmission stand, and 6V6080 torque multiplier. Dimensioned manufacturing drawings support fabrication of the FT833 transmission clamp, FT834 transmission tester, and FT1037 winch directional-clutch-shaft gaging bar.
The maintenance volume also provides torque limits, fluid capacities, pressure-test specifications, electrical test values, inspection limits, bearing and shim adjustments, and approved expendable materials.
Workshop Handling Precautions
Heavy-component handling, recoil-spring work, raised blade or ripper testing, hydraulic pressure, pressurized cooling systems, electrical isolation, and refrigerant work carry dedicated warnings. Use correctly rated lifting and support equipment and follow the manual’s safety conditions before beginning repair.
A Preview of Valve Adjustment and Wear Limits
The 3306 valve-mechanism work packages specify adjustment targets of 0.015 in. (0.38 mm) for intake valves and 0.025 in. (0.64 mm) for exhaust valves. These setting values are distinguished from the wider inspection bands that do not require adjustment.
For rocker-arm inspection, the maximum permissible clearance between a worn bearing and shaft is 0.008 in.
