Kawasaki ZZR1400 / ABS / Ninja ZX-14 2008–2011 Service Manual (P/N 99924-1389-04)

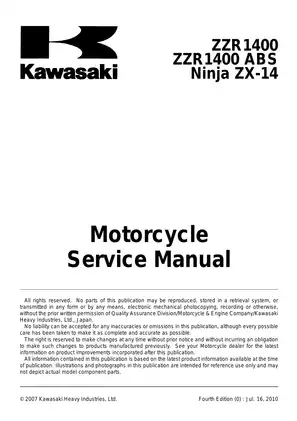

Kawasaki’s service manual, P/N 99924-1389-04, Fourth Edition (0), dated July 16, 2010, covers the 2008–2011 ZZR1400, ZZR1400 ABS, and Ninja ZX-14, identified as ZX1400C8F–CBF and ZX1400D8F–DBF.

Searchable Service Text and PDF Navigation

Text search and diagram detail: Service text is searchable, with embedded bookmarks for chapters and individual procedures. Labels within the complete wiring diagrams are outside text search. Small wiring labels require zooming; the checked diagrams remain readable when enlarged.

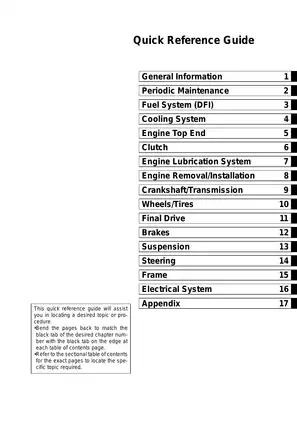

One printable English PDF contains 749 pages: 729 chapter pages, 10 preliminary pages including two blanks, nine blank divider pages, and one final model-application/part-number page. All are included in the total.

Engine, DFI, ABS, and Chassis Service

These are selected areas of coverage, not the complete contents. Further topics include clean-air-system valve tests and fairing removal.

• Engine repair: Engine removal, crankcase splitting, camshaft timing, cylinder-head and valve service, piston and crankshaft inspection, connecting-rod checks, balancer adjustment, and oil-pressure testing.

• Clutch and drivetrain: Hydraulic master/slave-cylinder service, clutch bleeding, clutch-pack inspection and adjustment, transmission-shaft disassembly, shift-drum and fork checks, chain alignment, and sprocket/coupling service.

• DFI diagnosis: Service-code retrieval, sensor and actuator circuit tests, fuel-pressure and flow checks, injector testing, and throttle-body synchronization.

• Cooling system: Cooling-system pressure testing, radiator removal, thermostat inspection, water-pump removal and installation, impeller inspection, and coolant replacement.

• Brakes and ABS: Caliper and master-cylinder overhaul, brake-line bleeding, ABS self-diagnosis, wheel-speed sensor and relay tests, and hydraulic-unit removal and inspection.

• Suspension and steering: Wheel and hub-bearing service, fork disassembly and oil replacement, rear suspension adjustment, swingarm-bearing work, and steering-stem repair.

• Electrical systems: Charging and ignition tests, starter-motor overhaul, interlock checks, immobilizer key registration, and model- and market-specific wiring diagrams.

Kawasaki says this manual is designed primarily for trained mechanics working in a properly equipped shop. It is also suited to experienced owners performing basic maintenance and repair who understand normal workshop procedures and have the specified tools; work beyond their experience should be left to qualified mechanics.

Model Selection and Production Changes

Market-specific notes distinguish CA/CAL/US configurations and the listed EUR/WVTA, GB, AU, MY, SEA, TH, and BR versions. They identify full-power and restricted-power applications, ABS equipment, immobilizers, oxygen sensors, evaporative-emissions hardware, and model-specific ECU identification.

Separate camshaft illustrations distinguish the earlier timing marks from the later punch-mark arrangement using engine-number breaks. The model-application table identifies each model’s beginning frame numbers. Coverage ends with the 2011 CBF/DBF applications; this is not a 2012-and-later manual.

Internal Engine and Drivetrain Repair

Step-by-step procedures cover cylinder-head removal and installation, valve-guide replacement, valve-seat repair, crankcase separation, and transmission-shaft assembly. Bearing-clearance measurements and insert-selection tables support crankshaft and connecting-rod inspection; piston sections include ring, groove, and cylinder-wear checks.

The clutch section explains plate-assembly length inspection and adjustment. Exploded views identify component relationships, replacement items, and fasteners requiring locking agent or lubrication.

The manual warns that turning the crankshaft with the camshaft-chain tensioner removed can alter valve timing and damage the valves.

DFI Fault Tracing and Immobilizer Differences

The inquiry checklist, DFI Diagnosis Flow Chart, service-code tables, and backup strategies help connect a reported running fault to the relevant sensor, wiring, or fuel-supply tests. Component checks extend to injector signals, ECU power supply, and CAN-line resistance.

Electrical tests cover the factory-set main and subthrottle sensors, which Kawasaki specifies must remain unadjusted.

Immobilizer-equipped C8F–CAF/D8F–DAF models use master-key procedures, while CBF/DBF models have a separate user-key registration section. The Spare User Key Registration Flow Chart supports the applicable process; lost-key conditions and ECU replacement requirements differ between these groups.

ABS Diagnosis and Brake-Service Limits

ABS coverage includes a diagnosis flow chart, blink-code procedures, brake-pipe routing, and ABS System Wiring Diagrams for the applicable model groups. The hydraulic unit is covered for diagnosis, removal, installation, and inspection; Kawasaki specifies replacement of defective ABS components and prohibits their internal disassembly.

Reversed battery connections or disconnecting electrical connections with the ignition on can damage ABS components. Brake and ABS work must follow the factory bleeding and inspection requirements; air left in the hydraulic circuit reduces braking performance and can cause an accident.

Circuit References and Workshop Tools

The Coolant Flow Chart, Engine Oil Flow Chart, and Charging System Circuit show system relationships alongside the repair text. Ten complete wiring diagrams are divided by model range, ABS equipment, and market.

DFI tool references include Vacuum Gauge 57001-1369, Throttle Sensor Setting Adapter 57001-1538, and Fuel Pressure Gauge Adapter 57001-1593.

Other sections identify Clutch Holder 57001-1243, Fork Oil Seal Driver, 43, 57001-1530, and Key Registration Unit 57001-1582. Related tables provide tightening torques, fluid specifications, pressure-test data, service limits, clearances, and electrical test values.

A Preview of Valve-Clearance and Synchronization Data

For the covered engines, valve-clearance specifications are 0.15–0.20 mm at the inlet and 0.22–0.27 mm at the exhaust, checked with the engine cold at room temperature. The maintenance section pairs these ranges with shim-adjustment charts.

The synchronization procedure specifies throttle-body vacuum of 34.4 ±1.3 kPa at idle with the engine thoroughly warmed up, alongside gauge connections and adjustment information.
