1993–2005 Kawasaki Ninja ZX-6, ZZ-R600, and ZZ-R500 Factory Service Manual Set (P/N 99924-1128-02)

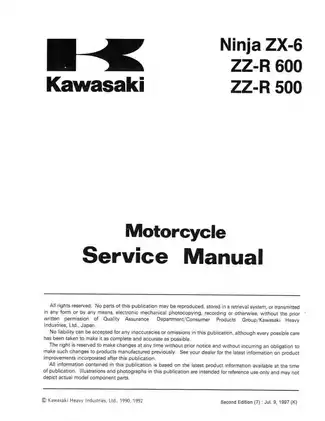

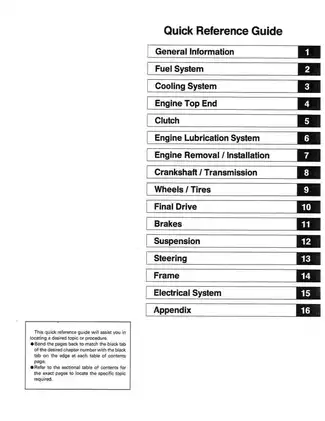

This 1993–2005 Kawasaki Ninja ZX-6, ZZ-R600, and ZZ-R500 Factory Service Manual Set combines the base manual (P/N 99924-1128-02, second edition, July 9, 1997) with the Service Manual Supplement (P/N 99924-1161-62, 12th edition, June 25, 2004). The base manual’s 16 chapters cover ZX600-D and ZX500-C models. The supplement provides ZX600-E and ZX500-D model updates and is intended to be used with the base manual.

• Engine repair: Cylinder-head and piston work, crankcase separation, crankshaft bearing selection, camshaft inspection, and shim-based valve-clearance adjustment.

• Clutch and transmission: Wet multi-disc clutch repair, constant-mesh transmission disassembly, and shift-fork, shift-drum, and gear inspection.

• Fuel and emissions: Keihin CVKD carburetor service, vacuum synchronization, fuel-level checks, fuel-pump testing, and market-specific evaporative-emission procedures.

• Cooling and lubrication: Water-pump inspection and replacement, thermostat and radiator-cap testing, oil-pump inspection, and oil-pressure diagnosis.

• Chassis service: Brake bleeding and hydraulic-component repair, front-fork overhaul, Uni-trak linkage inspection, steering-stem bearing service, and final-drive checks.

• Electrical troubleshooting: Charging and ignition tests, starter-motor service, interlock-circuit diagnosis, market-specific wiring diagrams, and supplement-specific fuel-cut valve checks.

Written primarily for trained mechanics in a properly equipped shop, these manuals also support owners performing basic maintenance and repair with mechanical knowledge, suitable tools, and an understanding of workshop procedures.

Engine Inspection, Valve Gear, and Internal Repairs

The engine chapters combine component exploded views with standard clearances, wear limits, bearing-selection tables, and fastener torque specifications. Valve Clearance Adjustment Charts support shim selection. A separate wobble-method inspection checks valve-to-guide wear.

Model differences matter during internal repairs. The base manual identifies the engine-number change from single to dual inlet valve springs, while the supplement documents connecting-rod bolt stretch inspection and the applicable tightening procedure. These distinctions help match inspection and assembly data to the engine being serviced.

The non-return camshaft chain tensioner has handling cautions because partial loosening followed by retightening can damage the tensioner and chain. Camshaft caps are machined with the cylinder head; incorrect placement can cause seizure through improper oil clearance.

Carburetor Setup and Emissions Diagnosis

Keihin CVKD procedures cover disassembly, service fuel-level measurement, and multi-carburetor vacuum synchronization. The specified equipment includes Fuel Level Gauge 57001-1017 and Vacuum Gauge and Tachometer 57001-1291.

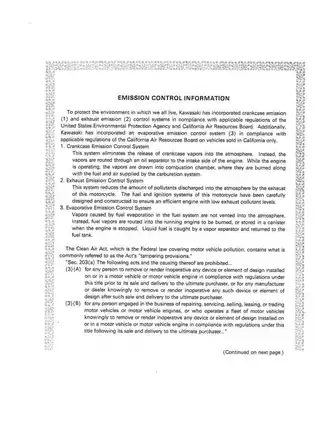

California evaporative-emission coverage includes canister and separator inspection, supported by an Evaporative Emission Control System schematic. The clean-air section includes vacuum-switch-valve testing and an operation view.

Later supplement sections distinguish catalyst and non-catalyst exhaust configurations. Fuel-cut valve inspection and IC igniter checks apply to the specified ZX600-E12/E13 markets other than the United States, Canada, and Australia; they should not be treated as universal equipment.

Cooling-System and Lubrication Tests

The Coolant Flow Chart and Engine Oil Flow Chart support cooling-circuit and lubrication diagnosis. Procedures address pressure testing, thermostat inspection, oil-pressure measurement, and oil-pump rotor inspection. Water-pump coverage includes removal, inspection, and replacement; mechanical-seal failure calls for complete pump replacement.

Brakes, Forks, and Final Drive

Brake sections cover bleeding, caliper service, and master-cylinder inspection. Pneumatic telescopic front-fork procedures extend to disassembly and overhaul, with Fork Oil Level Gauge 57001-1290 specified for oil-level setting.

Uni-trak linkage, steering-stem bearings, and chain-and-sprocket inspection are covered separately. The nitrogen-charged rear shock has adjustment and removal procedures, but the manual explicitly prohibits disassembly. Later supplement coverage also includes the applicable riveted drive-chain joint replacement.

When supporting the motorcycle for wheel or suspension work, verify lifting points and use appropriate personal protective equipment.

Ignition, Charging, and Starting Faults

Electrical coverage includes three-phase AC alternator testing, regulator/rectifier inspection, pickup-coil checks, and starter-interlock circuits. Ignition-timing specifications and frame-geometry data remain available in the relevant reference tables.

Fuel-pump relay inspection and pump operational testing help distinguish an electrical control fault from a delivery problem. Wiring diagrams vary by model and market, so the matching diagram and specified hand tester matter when interpreting the factory test results.

A Preview of Engine Inspection and Cooling Specifications

For ZX600-D and ZX500-C models, these are a few examples of the base manual’s engine and cooling data. Compression is specified at 960–1470 kPa at 350 rpm with the engine warm and the throttle fully open. Intake valve clearance is 0.15–0.24 mm with the engine cold, at room temperature.

Coolant capacity is 2.5 L, including the radiator, engine, and reservoir at the full mark.

The staged cylinder-head tightening procedure finishes at 47 N·m for new bolts, washers, and cylinder head, or 43 N·m for used parts, with oiled washers and the prescribed tightening sequence.

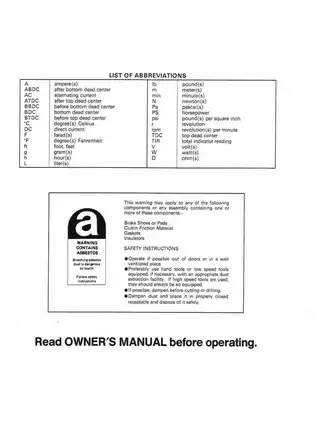

PDF Navigation and Manual Set Contents

Text search, bookmarks, and wiring detail: PDF text search is not available. Two embedded bookmarks open the base manual and supplement; individual chapters are not bookmarked. Small wiring labels require zooming, and some fine lettering remains soft.

The set contains 518 pages in one printable PDF file:

These counts already include 16 cover and front-matter pages, two model-application/back-cover pages, and nine blank or placeholder pages.
