HP DesignJet 700/750C/750C Plus/755CM – 1996 Service Manual (P/N C4705-90000)
287 Pages • Printable PDF • 5.77 MB • Download
Hewlett Packard Models Covered & Key Technical Specifications
Models: DesignJet 700, DesignJet 750C, DesignJet 750C Plus, DesignJet 755CM
Models & Model Codes:
DesignJet 700 — C4705A (D/A1), C4706A (E/A0)
DesignJet 750C — C3195A (D/A1), C3196A (E/A0)
DesignJet 750C Plus — C4708A (D/A1), C4709A (E/A0)
DesignJet 755CM — C3198A (E/A0), C3198B (E/A0)
Sub-models / Variants: D/A1-size plotters, E/A0-size plotters
Model Year: 1996
Serial Numbers — Service Note Applicability:
-
Firmware history: C3195A: ESA0000000/ESA6207614; C3196A: ESA0000000/ESA6231908; C3198A: ESA0000000/ESA6206073.
-
Entry platen: C3195A: ESA0000000/ESA5700335; C3196A: ESA0000000/ESA5700644.
-
Paper advance and mark encoder: C3195A: ESA0000000/ESA5B05350; C3196A: ESA0000000/ESA5B20304; C3198A: ESA0000000/ESA5B02306.
-
Aerosol-related servo shutdown: C3195A: ESA0000000/ESA5700250; C3196A: ESA0000000/ESA5700400.
-
Leg stability: C3195A: ESA0000000/ESA5C05877; C3196A: ESA0000000/ESA5C23782; C3198A: ESA0000000/ESA5C02835.
-
Pen alignment: C3196A: ESA0000000/ESA4508541 and ESA5B21735; C3198A: ESA0000000/ESA4508541 and ESA5B02844.
-
Fan deflector: C3196A: ESA0000000/ESA4508541; C3198A: ESA0000000/ESA4508541.
-
Max Carriage Speed: 36.66 inches per second (IPS)
-
Input Voltage: 90–264 V AC
-
Input Frequency: 47–63 Hz
-
Max Power Consumption: 140 watts
-
Max RAM Capacity: DesignJet 700: 69.5 MB; DesignJet 750C: 68 MB plus 3 MB used internally; DesignJet 750C Plus: 72 MB plus 3 MB used internally; DesignJet 755CM C3198A: 68 MB usable plus 3 MB used internally; DesignJet 755CM C3198B: 72 MB usable plus 3 MB used internally.
-
Resolution: Up to 600 x 600 dpi
-
Plotter Environment: Operating temperature 0 to 55°C (32 to 131°F)
Hewlett Packard Manual Features & Selected Content Preview

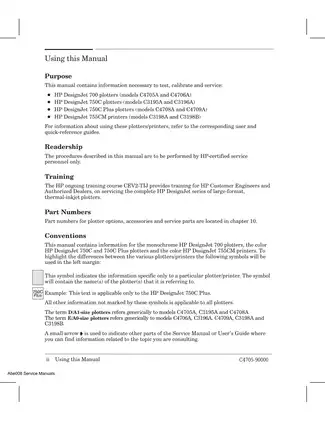

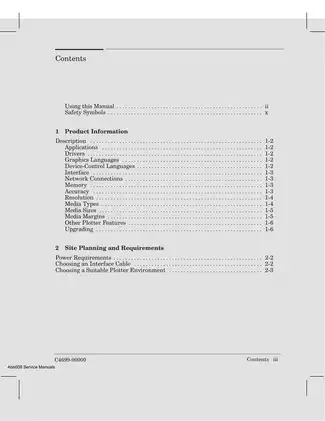

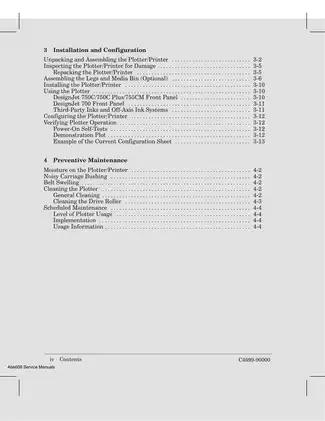

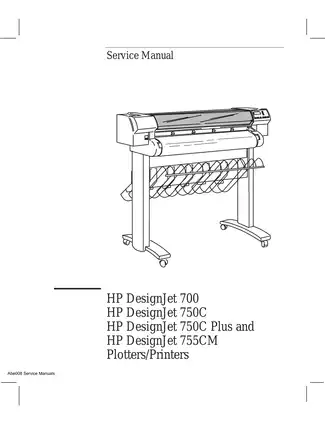

This PDF reproduces the August 1996 second edition of Hewlett-Packard’s service manual for the HP DesignJet 700, 750C, 750C Plus, and 755CM plotters/printers (P/N C4705-90000). It covers the monochrome and color configurations identified in the model list above.
PDF Search, Bookmarks and Page Details
Search and diagram navigation: Text search is only partly usable because portions of the text have incorrect character encoding. Embedded bookmarks provide access to the chapters, glossary, and index. Small labels in the connector diagrams require zooming for comfortable reading.
One printable, English-language PDF contains 287 pages, including two opening cover/title pages, seven Notes pages, and two closing edition/publication pages.
Plotter Motion, Service Tests and Calibration
The following selected coverage highlights summarize the main service areas. Additional topics include graphics-language support and identification of PCA revisions.
-
Motion systems: Carriage/Y-axis and media/X-axis operation covers drive motors, belt tensioning, encoder strip, drive roller, cutter, bail, overdrive, pinch-arm, and roll-feed mechanisms.
-
Mechanical repair: 39 illustrated procedures provide step-by-step removal and reinstallation guidance for PCAs, memory, carriage and belt, trailing cable, motors, sensors, service station, primer, and media-path hardware.
-
Built-in diagnostics: 32 Service Tests address EEROM, MIO, PCA communications, thermal control, pen continuity and identification, nozzles, drop detection, motion, encoders, sensors, and front-panel inputs.
-
Calibration: A repair-dependent decision table identifies when drop-detect, line-sensor, and accuracy calibrations are required, including after component replacement or changes to EEROM data.
-
Print-quality diagnosis: The CAD 2-D Monochrome Plot, CAD Color Diagnostic Plot, and Area-Fill Diagnostic Plot support checks of nozzle performance, alignment, line straightness, and ink/media interaction.
-
Parts identification: Exploded assembly views and HP part-number tables distinguish service parts by model, plotter size, and hardware configuration.
HP specifies that these procedures are for HP-certified service personnel.
Circuit Operation and Fault Isolation
The functional overview connects host communications and processor control with cartridge firing, stepper motors, PWM signals, and sensor feedback. It explains the main, carriage, front-panel, line-sensor, drop-sensor, and power-supply PCAs, including temperature and linear-encoder sensing.
Front-panel message tables and six-digit hexadecimal error codes link symptoms to corrective actions and relevant tests. Together with the service configuration plot and EEROM maps, these references give technicians a structured route from a reported fault to the subsystem involved.
PC-based diagnostics are described as a separate software tool, including EEROM backup and restoration when replacing the main PCA. The PDF does not include that software.
Print-quality troubleshooting distinguishes paper-advance banding from weak or misdirected nozzles. It also addresses cockle, coalescence, bleeding, feathering, black migration, and halo effects, with attention to media selection and print-mode settings.
Repair Details and Preventive Maintenance
The tool list includes Torx and Pozidriv drivers, nut drivers, a spring hook, a 10X magnifier, and loopback connector HP 07440-60302. Preventive maintenance covers drive-roller cleaning, service-station and spittoon work, encoder-strip and carriage-axis care, maintenance kits, and plot/carriage-cycle counter resets.
A damaged encoder strip can prevent accurate carriage positioning during cartridge checks. The pinch-arm procedure warns that overtightening the cam-journal screw can break the journal and restrict the lift mechanism.
Service notes address entry-platen faults, paper-advance errors, aerosol-related servo shutdown, leg stability, mark-encoder changes, pen alignment, and fan-airflow deflection. Their model and serial-number assignments distinguish the affected hardware.
Variant-Specific Parts and Installation Scope
Memory and resolution tables distinguish the 750C from the 750C Plus and the C3198A/C3198B versions of the 755CM. Parts illustrations include the Electronics Block Diagram, Electronics Enclosure, Carriage-Axis, Service Station and Primer Assembly, Media Entry Path, and Bail and Overdrive.
Cover compatibility is also documented: plastic Unicover replacements are specified for units already fitted with that assembly.
Site-planning material provides environmental limits, dimensions, and handling weights: 32 kg (71 lb) for D/A1 units and 42 kg (93 lb) for E/A0 units. Installation material includes unpacking, repacking, optional legs/media-bin assembly, front-panel identification, and power-on checks. Routine operating and configuration instructions are referred to the separate user and quick-reference guides.
Electrical service requires mains isolation, protective grounding, and ESD precautions when handling the electronics.
Selected Thermal-Test and Accuracy-Check Values
The Thermal Control service test specifies a thermal-sense reading of 0.5–2.25 V for cartridge diagnosis and includes Brilliant Pulse Warming calibration.
For the accuracy check, the service configuration plot uses a 500 mm (20 in.) distance between X-mark centers, with a ±1 mm (0.04 in.) tolerance under normal environmental conditions. The calibration section explains the effect of media expansion and specifies polyester film for the calibration procedure.
