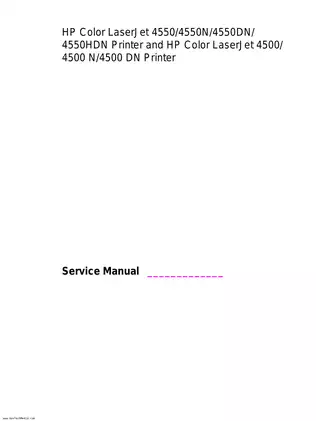

1997–1998 HP Color LaserJet 4500/4550 Printer Service Manual (P/N C7085-90921)

HP service manual P/N C7085-90921 covers the 1997–2000 Color LaserJet 4500 and 4550 series, including the 4500 N/DN and 4550N/DN/HDN configurations. It combines printer maintenance, operating theory, troubleshooting, assembly replacement, and illustrated parts references.

• Assembly replacement: Step-by-step procedures cover the laser/scanner assembly, DC controller PCB, high-voltage power supply, developing PCB, cartridge carousel, paper feed PCB, and drum drive assembly.

• Paper handling: Troubleshooting covers paper-path jams, pickup and feed mechanisms, duplex operation, and feeder faults, with model-specific jam-location references.

• Print-quality diagnosis: Image defect tables, a repetitive defect ruler, and a defect spacing chart connect visible print problems with likely mechanical causes.

• Service diagnostics: Formatter and engine tests cover memory, carousel operation, the imaging drum, paper-path sensors, and door switches, alongside service-mode settings.

• Electrical references: Diagnostic flowcharts, PCB location views, sensor maps, motor and fan diagrams, connector references, and the feeder wiring diagram support fault tracing.

• Parts identification: Illustrated assembly references and alphabetical and numerical parts lists distinguish printer versions, voltage-specific components, and field-replaceable units.

This manual suits trained printer service technicians familiar with color laser operation; its removal and replacement chapter is intended for authorized service personnel.

Printer Systems and Version-Specific Service

The manual details site requirements, space specifications, and environmental conditions, followed by mechanical system theory, image formation cycles, power supply architecture, and formatter operations. Installation coverage also includes printer interfaces and memory configuration.

4500 and 4550 differences: Service procedures and parts tables distinguish earlier and later 4500 assemblies. The 4550 generally follows the later design, with exceptions such as its continuous toner level sensor and model-specific service parts.

These distinctions matter when selecting replacement boards or working on the top-cover switch assembly and intermediate transfer belt (ITB) mechanisms. The parts references associate components with the relevant printer version rather than treating every 4500/4550 assembly as interchangeable.

Fault Isolation, Calibration and Assembly Repair

Engine versus formatter faults: The engine test bypasses the formatter PCB, helping isolate an engine problem from a formatter-related fault. Separate formatter diagnostics address memory, while service-mode coverage includes stored counts and settings.

Print-quality troubleshooting combines symptom tables with the repetitive defect ruler and spacing chart. Color balance, gray balance, color-plane alignment, and tray-margin adjustments provide further diagnostic and calibration coverage.

Removal and replacement: Detailed teardown sequences address cover panels, cartridge mechanisms, the ITB drawer, internal controller boards, and drive assemblies. Maintenance sections cover the fuser kit, transfer kit, imaging drum, and paper pickup rollers.

The repair approach centers on field-replaceable units and selected mechanical subassemblies. HP explicitly excludes troubleshooting and repairing individual electronic components within those assemblies.

Electrical and handling precautions: Formatter service notes explain that standby mode leaves the board powered and that removal while the printer remains plugged in can damage it. The transfer-kit instructions also identify printer damage caused by a reversed transfer roller.

Connector References and Parts Selection

Parallel-interface pinouts and sensor-status information accompany the electrical troubleshooting material. DC controller PCB connector views and duplexer/feeder connector-location drawings help relate test references to the installed assemblies.

The 500-sheet feeder wiring diagram documents the feeder’s electrical connections. Exploded assembly views and numerical parts lists support identification of replacement items, with separate entries where printer version or supply voltage changes the required part.

Selected Electrical, Memory and Maintenance Data

A small selection of the manual’s data shows the detail available beyond the specifications above.

The electrical table lists average printing power of 470 W for 110-volt models and 480 W for 220-volt models. Memory specifications distinguish 100-pin, non-parity synchronous DRAM in the 4500 from 168-pin synchronous DRAM in the 4550.

Approximate imaging-drum life is 25,000 black-only pages or 6,250 color pages; fuser-kit life is 100,000 black-only pages or 50,000 color pages. These are usage-dependent estimates, and shorter jobs or duplex printing can reduce drum life.

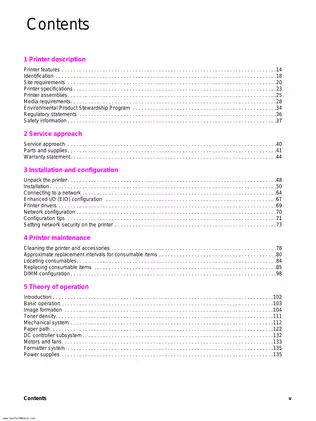

PDF Search, Bookmarks and Diagram Detail

Finding service information: Text chapters and tables are searchable, and PDF bookmarks provide access to chapters and many individual topics. Some diagram labels are not searchable. Small connector and wiring labels require magnification for comfortable reading.

The download contains one printable, English-language, 378-page PDF: 12 pages of cover and preliminary material, 352 chapter pages, and 14 index-section pages. Blank layout pages are included in those totals.
