Hewlett Packard Models Covered & Key Technical Specifications

Models: LaserJet 5200, LaserJet 5200n, LaserJet 5200tn, LaserJet 5200dtn, LaserJet 5200L

Sub-models / Variants: 500-sheet input tray (tray 3) configurations, duplex units, network-ready (Jetdirect) variants

Model Year: 2006


  • Processor: 460 MHz

  • Standard Memory: 32 MB (5200L) to 128 MB (5200dtn), upgradable to 512 MB

  • Print Speed: 25 ppm (5200L) or 35 ppm (5200 series)

  • Print Technology: FastRes 1200 dpi, ProRes 1200 dpi

  • Input Capacity: 100-sheet multipurpose tray (tray 1), 250-sheet tray (tray 2), optional 500-sheet tray (tray 3)

  • Connectivity: USB 2.0, IEEE 1284-compliant parallel port, optional EIO slot

Hewlett Packard Manual Features & Selected Content Preview

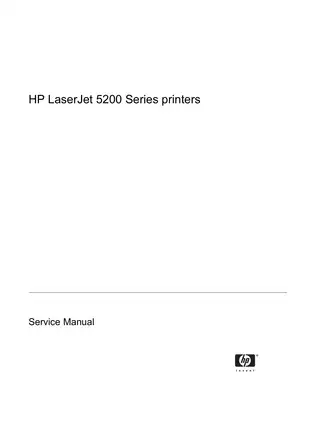

The HP LaserJet 5200/5200L Service Manual (P/N Q7543-90934), Edition 1, March 2006, covers the LaserJet 5200, 5200n, 5200tn, 5200dtn, and 5200L.

PDF Search, Bookmarks, and Circuit Diagrams

Search and diagram detail: Text search covers the manual text and figure captions. Embedded bookmarks lead to chapters, subsections, appendices, and the index. Wiring labels are part of the diagram images. Zooming makes most small labels readable, though some densely packed connector and pin markings remain soft.

The ZIP download contains one printable PDF. Its 428 pages include the front and back covers, title and copyright pages, appendices, and blank or pagination-only pages.


Print Engine, Paper Feed, and Fault Diagnosis

The selected service topics below cover repair and diagnosis. The manual also covers print cartridge storage and installation verification.

  • Print engine and electronics: Removal and replacement of the laser/scanner, formatter, fuser, DC controller, high- and low-voltage power supplies, motors, and fans.

  • Paper feed and delivery: Tray pickup and separation components, registration unit, transfer roller, paper-feed assembly, and delivery assemblies.

  • Feeder and duplexer: Separate repair sections for the tray 3 feeder and duplexer, including feed motors, fans, drive and lifter units, and printed circuit assemblies (PCAs).

  • Fault diagnosis: Control-panel messages, troubleshooting flowcharts, paper-path tests, repeated-jam checks, print-quality defect examples, and engine and formatter test pages.

  • Engine operation: Engine control, laser/scanner operation, jam detection, and the sequence of operations for pickup, feed, and image formation.

  • Parts identification: Exploded views, keyed parts lists, alphabetical and numerical part indexes, and separate listings for voltage-specific assemblies and model-specific formatters.

The manual is for printer technicians and refurbishers diagnosing faults, replacing assemblies, or identifying parts for a specific configuration.

Paper Jams, Print Defects, and Interface Checks

The five-stage troubleshooting flowchart leads into control-panel messages, jam locations, and paper-path checks. Print-quality examples cover light print, dropouts, lines, gray background, loose toner, repeating defects, skew, and curl.

The engine and formatter test pages, formatter heartbeat LED, configuration pages, and event log help distinguish an engine fault from a formatter, accessory, or communications problem before a replacement part is selected. The operating diagrams trace pickup and feed through charging, developing, transfer, separation, fusing, and drum cleaning.

Feeder, Duplexer, and Jetdirect Compatibility

The tray 3 feeder (Q7548A) and duplexer (Q7549A) service sections apply to compatible configurations of the 5200, 5200n, 5200tn, and 5200dtn. The 5200L is limited to USB and parallel connections. CompactFlash, EIO and Jetdirect networking, HP Web Jetadmin, and the embedded web server apply to compatible configurations in the rest of the series.

Network coverage includes HP Jetdirect EIO installation, manual TCP/IP setup, subnet masks, default gateways, and protocol settings for IPX/SPX, AppleTalk, and DLC/LLC. The manual also covers Jetdirect status and configuration pages, PJL communication checks, and troubleshooting for Windows, Macintosh, Linux, and PostScript.

Assembly Replacement and Stored Printer Settings

The removal chapter uses 210 numbered figures to show access to covers, the cartridge door, internal assemblies, and accessory components. The parts-removal-order chart is accompanied by hand-tool requirements, screw identification, and guidance on connectors and flat-flex cables. Service precautions cover power isolation, ESD, the hot fuser, sharp sheet metal, and the laser/scanner’s protective cover.

Save + Restore explains how the printer retains its identity and settings during formatter or DC controller replacement. Replacing both boards together or fitting a previously used DC controller can defeat that process and make some Jetdirect information unrecoverable. The reset and Service menu sections distinguish a cold reset, self-test, and NVRAM initialization, including the risk of permanent model and firmware data loss with full initialization.

Exploded Views and Parts Selection

The parts chapter contains 23 exploded views and 27 tables. Callouts link covers, tray 2, feed and delivery assemblies, and PCAs to orderable part numbers. Formatter listings distinguish the base 5200, 5200n/tn, 5200dtn, and 5200L. Repair coverage is limited to field-replaceable units and assemblies.

The three-part circuit diagram covers the printer, feeder, and duplexer. The manual also lists supported media and provides electrical, power-consumption, acoustic, and operating-environment specifications.

Preview of Defect Spacing and Fuser Ratings

For marks that repeat down the page, the print-quality section identifies intervals of 44, 58, or 94 mm as possible signs of a print cartridge fault.

The fuser parts table lists separate 110–127 V and 220–240 V assemblies. The voltage rating distinguishes the two replacement parts in the exploded view.
