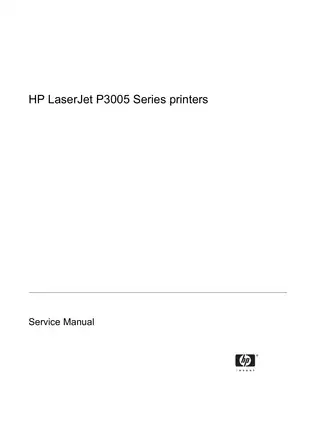

2006 HP LaserJet P3005 Series Service Manual (P/N Q7812-90910)

HP's factory service manual covers the 2006 LaserJet P3005 series, including the P3005, P3005d, P3005n, P3005dn, and P3005x configuration variants (Q7812A through Q7816A). Publication P/N Q7812-90910, Edition 1, October 2006.

Supplied as one 292-page PDF in English, including the preliminary pages, appendices, index, and closing pages.

• Engine and electrical repair: Formatter, engine control unit (ECU), high-voltage power supply, and laser/scanner removal and replacement, with circuit diagrams and connector references.

• Fuser and drive assemblies: Fuser and main-motor replacement, gear-assembly removal and reinstallation notes, and cartridge-door service.

• Paper handling: Pickup-roller, separation-pad, registration-assembly, and tray-solenoid procedures, plus jam detection and paper-path tests for simplex and duplex operation.

• Fault isolation: Control-panel error tables, engine and formatter test pages, event logs, image-defect examples, and an image defect ruler.

• Service settings and firmware: Cold reset, NVRAM and disk initialization, formatter replacement settings, remote firmware updates, and separate HP Jetdirect firmware procedures.

• Parts identification: Exploded assembly drawings, component-location tables, and alphabetical and numerical parts lists, including voltage-specific fuser and engine-controller assemblies.

Suited to printer repair technicians familiar with electrical fault isolation and ESD-protected handling of circuit assemblies.

Configuration Differences and Parts Selection

Automatic duplexing applies to the P3005d, P3005dn, and P3005x. Embedded HP Jetdirect networking applies to the P3005n, P3005dn, and P3005x; the parallel port is limited to the P3005 and P3005d. The P3005x includes tray 3.

Parts tables distinguish 110–127 V and 220–240 V fuser and engine-controller assemblies. These listings help match replacement parts to the printer's electrical configuration before ordering.

Engine Operation and Electrical Diagrams

The theory section follows startup, power-on checks, and image formation from primary charging and laser beam exposure through transfer, fusing, and drum cleaning. It explains how the formatter, ECU, laser/scanner, and mechanical drive assemblies work together.

The Engine control system circuit diagram and Low-voltage power supply circuit diagram show controller and power-supply relationships. The engine controller PCA drives main motor M1; ECU wiring locates its connector and those for fans, sensors, and solenoids. The two-part Circuit diagram adds pin and signal references.

Repair Procedures and Reassembly Notes

Illustrated procedures cover the exterior covers and control panel as well as internal assemblies. Reinstallation notes address gear positioning, the ECU power-switch linkage, and grounding-spring placement at the high-voltage power supply.

The main-motor procedure identifies its lead as permanently attached; trying to disconnect it at the motor risks damaging the wiring. The paper feed guide procedure also warns against bending or removing its grounding wire.

Repair coverage centers on field-replaceable units and selected mechanical subassemblies. It does not provide component-level circuit-board repair procedures.

Servicing involves high-voltage electronics and hot fuser components; follow the manual's safety precautions before working on the printer.

Troubleshooting and Service Functions

Error tables connect fuser, scanner-motor, fan, and ECU communication faults with checks and component references. Engine and formatter test pages help distinguish print-engine faults from formatter or control-panel problems during fault isolation.

The Jam-detection sensors diagram supports paper-path diagnosis. Print-quality examples address faint output, toner smear, dropouts, and repeating images; the Image defect ruler relates repeat spacing to the component responsible.

Cold reset and NVRAM initialization are documented separately because NVRAM initialization resets the serial number, page counts, and event log. The service menu covers restoring printer identification and counters after formatter replacement. Firmware procedures cover both printer RFU files and the separate Jetdirect update process.

Maintenance and Technical References

Maintenance coverage includes print-cartridge handling, paper-path cleaning, and fuser cleaning pages. Reference tables provide supported media dimensions, weights, and tray capacities, together with physical and electrical specifications, acoustic data, and environmental requirements.

File Format and Readability

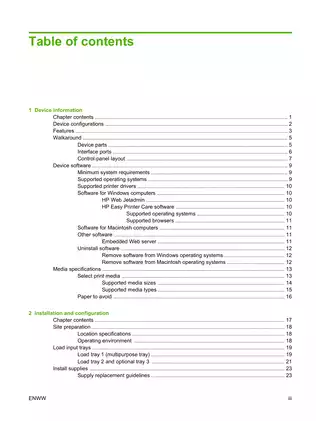

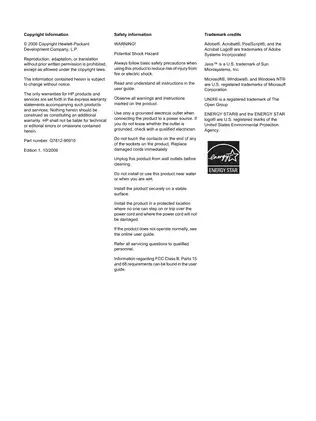

The total includes 18 preliminary pages, 272 numbered pages containing the service chapters, appendices, and index, plus two closing pages: one blank page and the back cover. All are already included in the stated page count.

Main text and parts tables support PDF text search, although some diagram labels are not searchable. Embedded PDF bookmarks provide chapter and subsection navigation. Small pin, connector, and wire-code labels in the detailed circuit diagrams require zooming for comfortable reading.
