HP LaserJet 4200/4300 Printer Service Manual – 2000s (P/N Q2431-90912)

HP’s service manual for the LaserJet 4200/4300 series, P/N Q2431-90912, Edition 1 (August 2002), covers the base, n, tn, dtn, dtns, and dtnsL configurations.

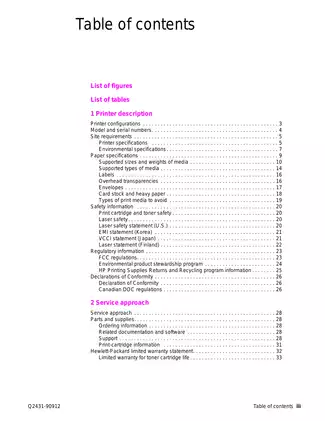

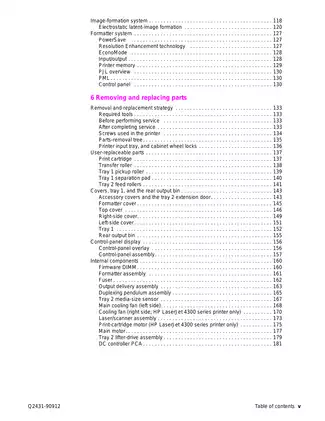

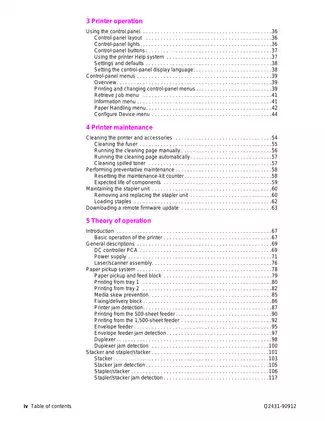

Searchable Text, Bookmarks, and Diagram Detail

Search and schematic labels: The main text is searchable, with embedded PDF bookmarks for chapters, subsections, and the index. Many wiring-diagram labels are not searchable. Small pin and signal labels in the wiring diagrams require zooming.

The download is one printable, English-language 449-page PDF, including 18 cover and front-matter pages, 430 numbered manual pages, and one final blank page.

Print-Engine Repair, Paper Handling, and Fault Diagnosis

The following highlights are a selection of the manual’s contents, rather than a complete table of contents. Additional topics include control-panel menu settings and printer-memory operation.

• Internal repair: Step-by-step removal and replacement procedures for the fuser, laser/scanner, formatter, DC controller PCA, power supply, main drive, motors, and fans.

• Paper-feed assemblies: Pickup/feed, registration, transfer, duplexing pendulum, and output delivery repairs, plus internal service procedures for the 500- and 1,500-sheet feeders.

• Diagnostic routines: Initial troubleshooting checklist and flowchart, power-on checks, event-log review, service-menu settings, and printer reset and initialization procedures.

• Paper handling and accessories: Operating and jam-detection logic for trays, envelope feeder, duplexer, stacker, and stapler/stacker, with switch, sensor, solenoid, motor, fan, and PCA locations.

• Maintenance: Fuser cleaning, manual and automatic cleaning pages, spilled-toner cleanup, maintenance-kit identification and counter reset, component-life tables, stapler-unit replacement, and remote firmware updates.

• Electrical and parts references: Printer and accessory wiring diagrams, connector views, timing charts, a parts-removal tree, and exploded field-replaceable unit drawings.

This manual is best suited to trained printer technicians and experienced repair specialists who understand the LaserJet printing process, ESD precautions, and electrical diagnosis.

Operating Theory and Model Differences

The theory chapter follows four interacting systems: control, pickup and feed, laser/scanner, and image formation. It explains the waiting, standby, initial-rotation, print, and last-rotation periods, along with fuser control, over-temperature protection, high-voltage generation, toner detection, and cartridge-memory functions.

Image formation is covered from charging and writing through developing, transfer, separation, fusing, and drum cleaning. Media-skew correction and sensor-based jam timing connect the operating descriptions to paper-path diagnosis.

The 4300 has a dedicated print-cartridge motor and a right-side cooling fan not fitted to the 4200. Parts tables distinguish the DC controller PCA, laser/scanner, power supply, fuser, and fixing film by model. Separate 110- and 220-V listings help prevent cross-series or wrong-voltage parts selection.

Configuration suffixes distinguish the installed equipment: n adds Jetdirect networking, tn adds a second 500-sheet tray, and dtn adds automatic duplexing. The dtns configuration adds a stacker; dtnsL adds a stapler/stacker.

Error Messages, Print Defects, and Communication Checks

Alphabetical and numerical error tables connect control-panel messages with likely causes and recommended checks. Jam charts distinguish input-tray, main paper-path, duplex-path, and output-accessory faults.

Print-quality tables address light or blank pages, loose toner, lines, background, repetitive defects, skew, curl, and creases. Half self-test and drum-rotation checks support image-formation diagnosis. Separate engine and formatter tests help distinguish print-engine faults from formatter or I/O problems, while the configurable paper-path test exercises installed sources, destinations, and duplexing.

Communication coverage includes parallel-port checks, EIO/Jetdirect troubleshooting, configuration and Jetdirect pages, and the embedded Web server. Detailed network troubleshooting is referred to separate Jetdirect guides.

Cold reset, NVRAM initialization, and hard-disk initialization are treated as different operations. The manual explains their effects on configuration, service data, and stored disk contents, including restoration requirements after formatter replacement.

Maintenance, Parts Selection, and Repair Scope

Media tables cover tray 1, tray 2 and the 500-sheet feeder, the 1,500-sheet feeder, duplexer, envelope feeder, and stacker/stapler limits. Cleaning-page instructions distinguish manual cleaning with an installed duplexer from automatic cleaning on compatible configurations.

Repair centers on field-replaceable assemblies and selected mechanical subassemblies. Exploded views and parts tables provide new and exchange numbers. HP does not support replacement of individual components on printed circuit boards.

Internal teardown coverage concentrates on the printer and its 500- and 1,500-sheet feeders. The envelope feeder, duplex accessory, stacker, and stapler/stacker receive operating theory, wiring, jam diagnosis, and component troubleshooting; stapler-unit replacement is also documented.

The tool list includes a #2 Phillips screwdriver, small flat-blade screwdriver, needle-nose pliers, and ESD protection, with a penlight and tape listed as optional.

Wiring, Connector, and Timing References

Named illustrations include the HP LaserJet 4200 wiring diagram, HP LaserJet 4300 wiring diagram, and DC controller connectors diagram. Separate general timing diagrams cover each printer series, with another timing diagram for the stapler/stacker.

The connector diagram identifies connection locations and pin counts, while component-location views connect electrical references with the physical assemblies.

Reassembly Cautions and Service Safety

The heavy-gauge leads at DC-controller terminals TB85 and TB86 are soldered connections, not detachable lug connectors; pulling them can damage the PCA. Incorrect routing of the lower ribbon and power cables can put them in the tray 2 lifter-drive path, where operation can damage the cables.

Disconnect wall power before removing any assembly, use ESD protection around electronic boards, and allow the fuser to cool before handling it. The laser/scanner protective cover must remain installed during service; any checks that require energized equipment should be performed only by personnel trained for live electrical testing.

Selected Repetitive-Defect Measurements

The repetitive-defect table lists fuser-related repeat distances of 75.0 mm for the LaserJet 4200 and 94.0 mm for the LaserJet 4300. The photosensitive drum has a listed repeat distance of 94.2 mm.

The accompanying ruler relates recurring image spacing to the affected roller or drum and distinguishes fuser replacement from print-cartridge replacement.
