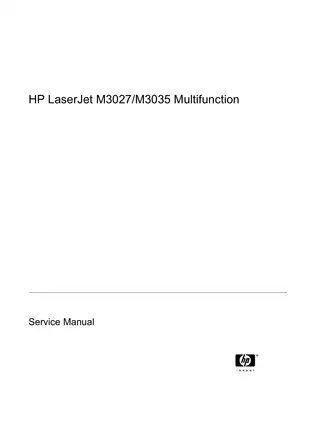

HP LaserJet M3027, M3035, M3027x, and M3035xs MFP Service Manual (P/N CB414-90940)
368 Pages • 11.92 MB • Instant, Printable PDF
Hewlett Packard Models Covered & Key Technical Specifications
Models: LaserJet M3027, LaserJet M3027x, LaserJet M3035, LaserJet M3035xs
Sub-models / Variants: Multifunction Printer (MFP), Automatic two-sided printing accessory, 20-sheet convenience stapler, 500-sheet input tray (tray 3), Fax accessory
Model Year: 2006
-
Processor: 400 MHz
-
Memory: 256 MB (expandable to 512 MB)
-
Storage: 40 GB or larger hard disk
-
Connectivity: Hi-Speed USB 2.0, EIO slot, Ethernet 10/100Base-T
-
Print Speed: Up to 27 ppm (M3027) or 35 ppm (M3035) on letter-sized media
-
Print Technology: Laser (PCL 5, PCL 6, PostScript 3 emulation)
-
Resolution: 1200 dpi (FastRes 1200 / ProRes 1200)
-
Input Capacity: 100-sheet (tray 1), 500-sheet (tray 2), optional 500-sheet (tray 3)
-
Operating Temperature: 15° to 32°C (59° to 89°F)
Hewlett Packard Manual Features & Content Preview
- Covers HP LaserJet M3027, M3027x, M3035, and M3035xs multifunction printers. The M3027x adds duplex printing and analog fax to the base M3027; the M3035 has duplex printing, while the M3035xs adds fax, a convenience stapler, and tray 3.
- Details engine control unit (ECU), formatter, and high-voltage power supply (HVPS) removal and replacement, along with fuser and laser/scanner replacement.
- Documents paper-feed repair through pickup and registration assembly removal, tray-solenoid replacement, and main-motor and gear-assembly service, including critical reinstallation notes.
- Addresses ADF, scanner assembly, and control-panel replacement. The Calibrate Scanner function compensates for scan offsets; diagnostic menus cover the display, buttons, LEDs, and touchscreen.
- Provides engine and formatter tests, early-boot diagnostics, and paper-path testing with tray and duplex selection to help isolate printing and feed problems.
- Includes convenience-stapler and stapler power-supply replacement, plus final operational and door safety-switch tests after reassembly.

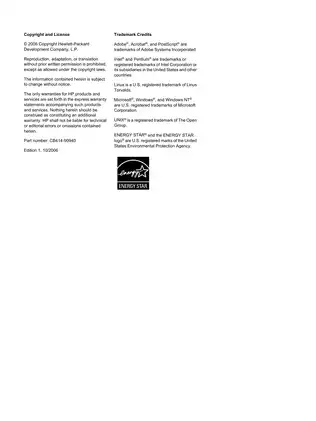

This 368-page PDF service manual is HP publication P/N CB414-90940, Edition 1, October 2006. It combines operating theory, removal and replacement procedures, troubleshooting, and service-level parts lists.
Print-engine controls and paper paths
This documentation breaks down the printer architecture, focusing on the ECU, formatter board, and image-formation systems. Power-on and print-timing sections cover initial drive sequences, primary charging bias, and scanner initialization. The image-formation discussion follows laser exposure, developing, toner transfer, fusing, and drum cleaning.
The Engine control unit circuit diagram and LVPS circuit diagram explain control and power-supply relationships. A two-part wiring diagram and labeled ECU connector view support electrical fault tracing. The ADF path for two-sided documents and Cross-section of device identify paper travel and the positions of the fuser pressure-roller and delivery-roller.
Fault isolation, resets, and firmware recovery
Control-panel message tables address fuser faults, laser/scanner failures, memory and disk errors, and loss of communication between the print engine and formatter. Copy troubleshooting distinguishes ADF problems from flatbed-scanner and print-engine defects.
For recurring marks on printed pages, the image defect ruler links repeat spacing to the drum, fuser, developer, and charging or transfer rollers. Separate troubleshooting sections address light print, loose toner, skew, and wrinkled sheets. LAN hardware testing and event-log review are covered as well.
Service-mode coverage includes cold resets, NVRAM and hard-disk initialization, and restoration of the service ID and page count after formatter replacement. Firmware updates and recovery include remote firmware transfer and separate HP Jetdirect updates. Fax-equipped models receive transmit/receive troubleshooting and T.30 trace-report controls; detailed fax configuration is referred to the separate HP LaserJet Analog Fax Accessory 300 User Guide.
Parts identification and repair limits
Exploded views of the covers, internal components, and Tray 2 pickup assembly are paired with reference numbers and parts tables. The ADF/scanner section identifies the separately supplied assemblies and feed-roller kit, while alphabetical and numerical indexes provide two ways to locate a part.
The parts lists distinguish 110–127 V and 220–240 V fuser and ECU assemblies, an important distinction when selecting replacements. Technical reference data includes power specifications, media requirements, operating-environment limits, and installation-space dimensions.
Repair procedures cover field-replaceable units (FRUs) rather than component-level circuit-board repair. The ECU and HVPS are each serviced with their mounting pan as a single unit. HP specifies whole-unit scanner replacement; that replacement assembly excludes the ADF and control panel.
Repair notes flag specific reassembly hazards: forcing a misseated ADF cover closed can damage the cover. Cables caught behind the gear-assembly plate can be pinched or broken during reassembly.
Because these printers contain high-voltage power supplies and thermal elements that remain hot after operation, always verify complete power isolation and allow the fuser unit to cool thoroughly before inspecting internal components.
