1991 Cummins L10 Series Diesel Engine Troubleshooting and Repair Manual (P/N 3810246-03)

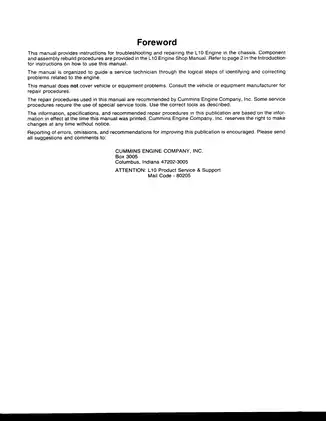

This 1991 Cummins L10 Series Troubleshooting and Repair Manual, P/N 3810246-03, is the July 1991 printing for diagnosing and repairing the engine in the chassis. It addresses conventional and optimized aftercooling arrangements, with application and configuration references for engine testing.

PDF Search, Bookmarks and Page Detail

Finding procedures and reading illustrations: Text search works in parts of the PDF, while many pages have no searchable text. Embedded bookmarks cover sections and individual procedures, although some entries point outside the file or to mismatched pages. Small electrical-test labels are readable when enlarged; some engine and flow-diagram linework is faint.

The download contains one printable, English-language 619-page PDF. That total includes the original cover, one blank page, and four publication-order and survey form pages.

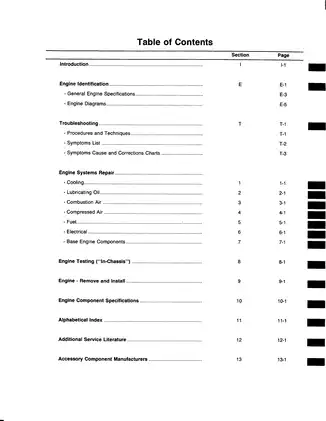

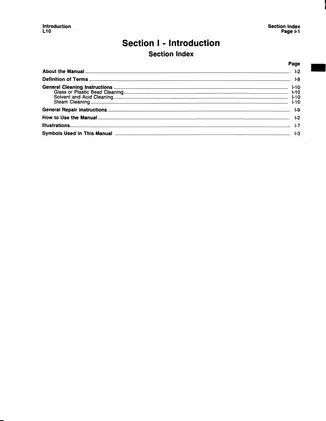

L10 Fault Tracing and In-Chassis Repairs

The following selected topics show the manual's repair and diagnostic scope rather than its complete contents. Other subjects include coolant-additive testing and flywheel-housing alignment checks.

• Symptom diagnosis: Fifty symptom entries lead into troubleshooting logic charts for starting problems, low power, smoke, vibration, oil-pressure faults, and compressor complaints.
• Cooling and lubrication: Thermostat testing, water-pump replacement, cooling-system pressure checks, oil-cooler testing, and oil-pressure regulator inspection and replacement.
• PT fuel system: Fuel-pump and injector replacement, AFC checks, fuel-line restriction tests, governor adjustments, and variable-speed governor fuel-leak repairs.
• Combustion and compressed air: Turbocharger leakage and clearance checks, turbocharger replacement, compressor valve inspection, cylinder-head service, and unloader diagnosis.
• Electrical testing: Illustrated starting-circuit checks, battery and connection tests, alternator output testing, belt adjustment, and starter and alternator replacement.
• Base engine work: Step-by-step piston, liner, bearing, and cylinder-head replacement; camshaft service, injection timing, overhead adjustment, and Jacobs Engine Brake procedures.
• Engine testing and replacement: Chassis-dynamometer checks, blowby measurement, on- and off-highway run-in procedures, and engine removal and installation.

Written for service technicians, this manual assumes access to the measuring equipment, lifting equipment, and special service tools specified for the work.

From Symptoms to System Tests

The troubleshooting charts connect probable causes with numbered repair procedures. That structure supports both routine system checks and fault isolation: a low-power complaint can be followed into fuel delivery, intake restriction, and turbocharger testing before deciding whether disassembly is warranted.

Cooling diagnosis: Cooling System Flow Diagrams distinguish the aftercooling arrangements. Combustion-gas testing and component-isolation checks help separate combustion leakage from air entering through the compressor or other connected systems. Fan-clutch temperature-sensor tests include circuit-opening and closing criteria.

Lubrication checks: The Lubrication Flow Schematic accompanies oil-pressure diagnosis, filter inspection, and cooler pressure testing. Component specifications provide inspection limits and torque references alongside the relevant procedures.

PT Fuel Equipment and PACE Limits

Fuel System Flow Diagrams include Fuel Flow Through the PACE Pump and connection views for PT (type G) AFC, AFC-VS, and AFC-PACE equipment. Governor service extends to throttle-shaft seals and bushings, rather than simply listing adjustment settings.

Calibration scope: PACE power-check equipment setup is described, but PACE fuel-rate calibration and electronic parameter adjustments refer to separate PACE and Compulink publications. Complete PT fuel-pump and injector rebuild and calibration instructions also belong to separate manuals.

The symptom charts identify mixed non-DFF, DFF, and RIF DFF injector types as possible causes of rough idle or surging. For overhead-tank installations, the manual warns that a perforated AFC bellows without the required protective check valve can allow fuel into the cylinders and cause hydraulic lock.

Internal Repairs and Overhaul Boundaries

Engine Diagrams and Star Pattern Torque Sequence drawings support component identification and assembly work. Liner replacement includes bore inspection and protrusion checks, with special-tool references such as universal liner puller 3376015. Incorrect puller contact can damage the cylinder block.

Cylinder-head pressure testing, camshaft and gear replacement, bearing inspection, and Jacobs Engine Brake adjustment and replacement are documented. Complete component and assembly rebuilds are covered by separate shop publications; this manual does not provide vehicle or equipment repair procedures.

Heavy-duty diesel work involves heavy components, hot coolant, and pressurized air. Follow the manual's lifting, isolation, and pressure-release warnings.

Examples of Filter, Coolant and Clamp Specifications

The full-flow oil filter capacity is 3.5 liters (0.93 U.S. gallon). This is the filter allowance, not the engine's total oil fill.

Engine-only coolant capacity is listed as 11.0 liters (12.0 U.S. qt) for non-aftercooled engines and 12.8 liters (13.5 U.S. qt) for aftercooled engines.

Component-specific torque data extend to the aftercooler coolant inlet-hose clamp during water-heater housing installation: 3 N·m (30 in-lb) for the conventional-cooling arrangement.
