2005 Epson PictureMate 500/Deluxe Printer Service Manual (SEIJ04013)

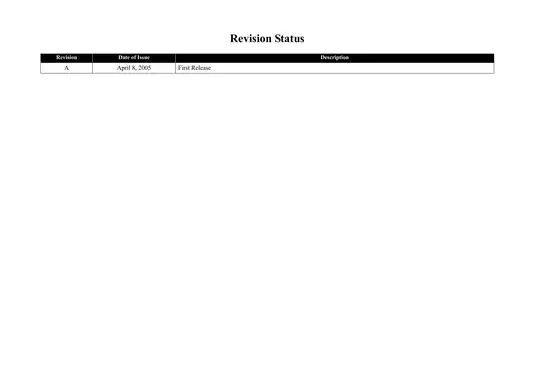

The Epson PictureMate 500/Deluxe service manual covers diagnosis, repair, adjustment, and maintenance of the color inkjet photo printer. This SEIKO EPSON CORPORATION publication is Revision A, first released April 8, 2005, with document code SEIJ04013.

• Printhead and carriage: D6-Chips head operation, CR motor load positioning, carriage and printhead removal, and CR scale installation.

• Paper handling: ASF assembly and PF roller removal, PF encoder sensor service, PE/PW sensor checks, and paper-ejection assembly repair.

• Ink-system service: Pump and cap operating principles, choke and self-sealing valves, and replacement of the Ink System Assy., TUBE SUPPLY Assy., and waste ink pads.

• Fault diagnosis: LCD fatal error codes, communication faults, paper jams, CSIC recognition errors, memory card faults, and print-quality check tables.

• Factory adjustments: EEPROM data copy, Head ID entry, head angular and Bi-D adjustment, PW/first dot positioning, PF adjustment, and Print Final Check patterns.

• Electrical systems: C618 MAIN, C618 SUB, and C618 PNL circuitry, electrical schematics, block diagrams, and USB and memory card interfaces.

Written for experienced repair technicians, the manual specifies Epson-certified technicians for repair work and assumes familiarity with electronics safety.

Carriage, Paper Feed, and Ink-System Repair

Disassembling flowcharts map access to the printer mechanism. Cable-routing drawings, screw identification, torque callouts, and pre-shipment checks support reassembly. The Nozzle Rear View, self-sealing valve section view, and Timing Belt Fitting Position drawing explain component relationships beyond the removal photographs.

Handling notes address ink leakage caused by damage to the TUBE SUPPLY Assy. film or valve seal rubbers. CR frame removal precautions also identify the risk of damaging the PF roller coating.

The repair sections cover the carriage drive, paper-loading gear train, head cable assembly, and front and rear paper guides. Complete exploded parts diagrams and a parts list are supplied through separate Service Parts Information (SPI), rather than in this manual.

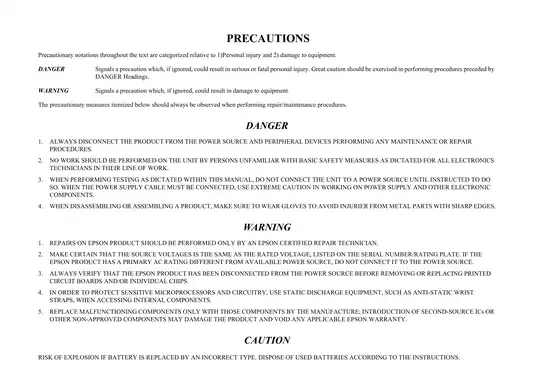

Internal printer service involves sensitive electronics and power modules; the manual's electrical-isolation and static-discharge precautions apply.

Error Checks, Board Replacement, and Calibration

Symptom tables distinguish missing dots, mixed colors, white streaks, roller traces, and borderless-printing faults. Their links to head, cap, cable, and paper-path checks help narrow the likely fault area before a replacement unit is selected.

Electrical theory covers power-supply voltages, motor and head drive circuits, sensors, and the CSIC memory chip. The C618 MAIN Control Board Block Diagram relates these circuits to the panel and card interfaces; panel-message references cover the 2.4-inch LCD.

Standalone printing and file-system compatibility are covered alongside Backup Utility restrictions. Optional Bluetooth functions are described, while IrDA information is limited to China/Taiwan models.

The replacement-part adjustment matrix identifies settings required after board, head, carriage, or motor work. Destination and USB ID settings, CR motor heat protection, EEPROM readout, and memory-card firmware updating are documented, including update-error remedies.

Program-based adjustments require Epson's separate servicing program; the PDF does not include that software. Mechanical timing-belt stopper adjustment uses a dedicated thickness gauge, Epson tool code 1295198.

Cleaning, Lubrication, and Maintenance Counters

Cleaning is condition-based. Lubrication drawings specify application locations and quantities for G-26, G-71, G-74, and CR02.

The maintenance section distinguishes cartridge waste ink, ink-system waste ink, main-unit waste ink pads, and tube-pass monitoring. It explains the replacement criteria for servicing the ink system, waste ink pads, and TUBE SUPPLY Assy. as a set, together with the associated maintenance-counter resets.

A Sample of Motor, Sensor, and Battery Data

These examples show a small selection of the manual's electrical reference and operating data.

The CR motor table lists an armature resistance of 27.2 ohms ±15% and a drive voltage of +42 V DC ±5%, specified as the voltage applied to the driver.

PE sensor diagnosis distinguishes paper-absent readings of 2.4 V or more from paper-present readings of 0.4 V or less. The optional battery specifications list a maximum charging time of 2.5 hours.

Searchable Chapters, Bookmarks, and Circuit-Sheet Detail

Text access and circuit labels: Main-chapter text is searchable, and embedded bookmarks cover chapters and subsections. Circuit component and pin labels are not searchable. Small schematic lettering requires zooming; some panel and sub-board lines and labels are light gray.

One printable English PDF contains 146 pages, including the original cover, preliminary material, and five electrical circuit sheets. All of these pages are included in the stated total.
