Yamaha Models Covered & Key Technical Specifications

Models: XVS65V, XVS650SC, XVS650AK(C), XVS650K(C), XVS650N(C)

Models & Model Codes:

XVS65V — 3B64, 5FBV (U.S.A.)

XVS650SC — 5FBP (California)

XVS650AK(C) — 5BN1 (U.S.A.), 5BN2 (California), 5BN3 (Canada)

XVS650K(C) — 5FB1 (U.S.A.), 5FB2 (California), 5FB3 (Canada)

XVS650N(C) — 5FBD (U.S.A.), 5FBE (California)

Sub-models / Variants: California model, U.S.A. model, Canada model; XVS650TC (3B62, 5FBT; California) and XVS65VC (3B65, 5FBW; California) are specification references in the XVS65V/XVS650SC supplement.

Trade Names: DragStar 650, V Star 650

Model Years: 1997–2005 (1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)


  • Engine idling speed: 1150–1250 r/min

  • Fuel pump pressure: 8.3–12.3 kPa (1.2–1.8 psi) (XVS65V/XVS650SC supplement)

  • Carburetor type: BDS28-57 x 2 (XVS65V/XVS650SC supplement); BDS28 x 2 (XVS650AK(C))

  • Battery capacity: 12 V, 10.0 Ah

  • Intake vacuum: 29.3 kPa (220 mmHg) (XVS65V/XVS650SC supplement)

  • Fuel cut solenoid valve resistance: 12 ohms at 20°C

  • Front tire size: 100/90-19M/C 57S (XVS65V/XVS650SC supplement); 130/90-16 67S (XVS650AK(C))

  • Rear tire size: 170/80-15M/C 77S

  • Ignition coil primary resistance: 3.57–4.83 ohms at 20°C (XVS65V/XVS650SC supplement)

  • Ignition coil secondary resistance: 10.7–14.5 k-ohms at 20°C (XVS65V/XVS650SC supplement)

  • Transmission: Constant-mesh 5-speed (XVS650AK(C))

Yamaha Manual Features & Selected Content Preview

Publication Pages
XVS650AK(C) Service Manual — P/N LIT-11616-11-16 (5BN-28197-E0), first edition August 1997 323
XVS650K(C) Supplementary Service Manual — P/N LIT-11616-11-21 (5FB-28197-E0), first edition December 1997 32
XVS650N(C) Supplementary Service Manual — P/N LIT-11616-14-47 (5FB-28197-E1), first edition August 2000 43

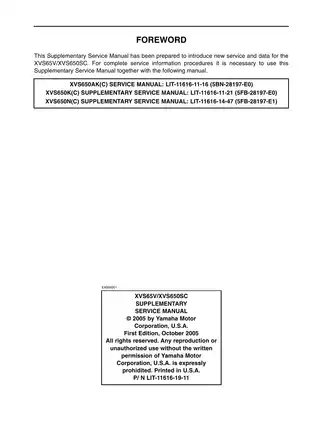

XVS65V/XVS650SC Supplementary Service Manual — P/N LIT-11616-19-11 (5FB-28197-E2), first edition October 2005 40

Yamaha specifies using the later supplements with the base manual and earlier supplements. Keeping these publications together lets technicians follow the companion references for carburetor assembly, TPS adjustment, battery service, brake bleeding, and switch inspection.

The later supplement also lists XVS650TC and XVS65VC specification references. Check the model codes before selecting model-specific procedures or replacement parts.

Search Coverage, Bookmarks and Wiring Detail

Text search and diagram reading: Text search is available in the XVS65V/XVS650SC supplement, on PDF pp. 1–40; the other publications have no searchable text layer. Embedded bookmarks cover all four publications. Small wiring labels require zooming, particularly in the base-manual diagram.

One printable PDF contains 440 pages, including the publications’ original covers, one blank chassis page, and two additional collection cover pages. The collection cover carries reference LIT-11616-XV-00.


Engine, Shaft-Drive and Electrical Service

This selection previews the contents rather than reproducing the full table of contents. Other included topics range from static wheel balancing to headlight bulb replacement.

  • Engine repair: Step-by-step engine removal and installation, cylinder-head and valvetrain service, piston inspection, crankshaft work, and reassembly procedures.

  • Clutch and shaft drive: Clutch and transmission inspection, middle-gear adjustment, final-drive backlash measurement, and drive-pinion and ring-gear service.

  • Brakes and chassis: Front master-cylinder and caliper repair, rear drum-brake service, hydraulic bleeding, fork overhaul, steering-head service, and swingarm inspection.

  • Fuel and emissions: Twin-carburetor inspection and synchronization, fuel-level and TPS adjustment, air-induction service, and California evaporative-emission maintenance.

  • Electrical diagnosis: Ignition, starting, charging, lighting, signals, fuel-pump and carburetor-heater troubleshooting, plus self-diagnosis charts and wiring diagrams.

  • Workshop references: Exploded views, job instruction charts, cable and hose routing, lubrication diagrams, special-tool numbers, torque tables, pressure-test data, wear limits, clearances, capacities, and electrical specifications.

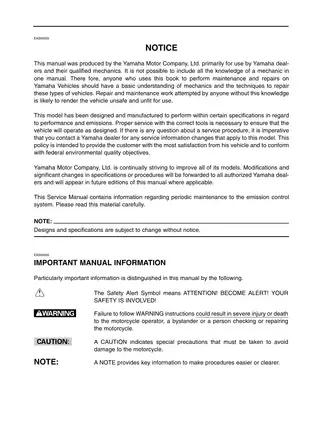

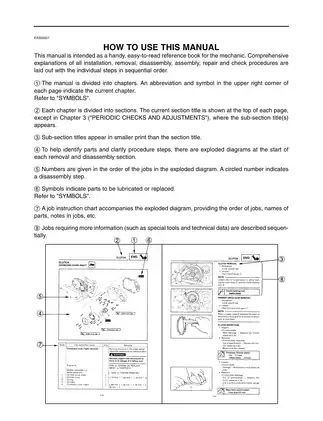

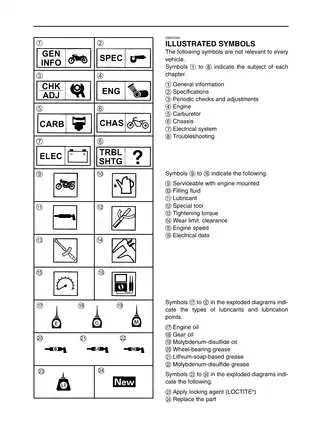

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume a basic understanding of motorcycle mechanics and repair techniques.

Engine Overhaul and Shaft-Drive Adjustment

Internal engine work: Cylinder-head and valvetrain procedures include valve-guide replacement, valve-seat inspection and lapping, camshaft timing, and rocker-arm inspection. Cylinder, piston, piston-ring, crankshaft, and connecting-rod sections provide the associated inspection and bearing-selection information.

Clutch coverage includes friction-plate and spring checks, push-rod inspection, and primary-drive gear service. Separate procedures address the shift shaft, oil pump, A.C. magneto, starter clutch, and transmission inspection and installation.

Middle and final gears: Middle-gear shim selection and universal-joint work are distinguished from final-drive pinion, ring-gear, and roller-bearing procedures. The manual also covers drive-shaft inspection and final-gear case installation.

Chassis Service and Repair Cautions

Wheel and brake-disc inspection is supported by front master-cylinder and caliper disassembly, inspection, and assembly procedures. Handlebar removal and installation, steering-head bearings, rear shock-absorber inspection, and swingarm-pivot checks have dedicated sections.

The fork instructions identify oil-seal orientation and warn that excessive separation force can damage the oil seal or slide metal; bottoming the tubes can damage the oil-lock piece. Front-brake installation also specifies the brake-hose pipe’s position against the caliper stop.

Routing sheets cover handlebar-switch leads, brake hoses, the speedometer cable, TPS wiring, pickup-coil and A.C.-magneto leads, fuel hoses, and breather lines.

Cable-routing notes address sidestand-switch lead clearance from the shift rod and keep harnesses, relay leads, and ignition wiring clear of engine and cover edges.

Carburetors, Emissions and Periodic Service

Twin BDS28 carburetor coverage includes float and jet components, disassembly and assembly, gauge-based fuel-level checks, synchronization, and throttle-position-sensor inspection and adjustment. Air-induction sections cover reed valves and the air cut-off valve.

The latest supplement adds fuel-cut solenoid checks and distinguishes carburetor heater 1 and heater 2, with heater-relay and thermo-switch diagnosis. California evaporative-emission maintenance is included in the service schedule.

Periodic procedures also cover valve-clearance adjustment, compression checks, ignition-timing checks, clutch and brake adjustment, final-drive oil service, steering and suspension inspection, battery and fuse checks, and headlight adjustment.

Electrical Fault Isolation and Workshop Tools

System-specific electrical sections cover TCI ignition, pickup and ignition coils, starter-circuit operation, starter-motor inspection, charging tests, turn-signal and brake-light circuits, switches, relays, fuses, and wiring continuity. Fuel-pump diagnosis includes circuit operation and an operational test.

Self-diagnosis coverage explains engine-indicator-light codes, fault isolation, and fail-safe behavior for the TPS, speed sensor, ignition coils, and both fuel-cut solenoids.

Visual references include the XVS65V/XVS650SC Wiring Diagram (for US and CAL), XVS650N(C) Wiring Diagram, Ignition System Circuit Diagram, Carburetor Heater System Circuit Diagram, engine lubrication diagrams, and the self-diagnosis display-order chart.

Special-tool references include pocket tester 90890-03112, fuel-level gauge YM-01312-A/90890-01312, and vacuum gauge YU-08030-A/90890-03094. Driveline and clutch work identifies final-gear backlash band YM-01231/90890-01231, middle-gear backlash tool YM-33222/90890-04080, and clutch-holding tool YM-91042/90890-04086.

Fuel-system, ignition, battery, and hydraulic-brake work requires secure motorcycle support and observance of the manual’s fire, battery, brake-fluid, and component-protection warnings.

A Preview of Carburetor-Heater Test Specifications

In the XVS65V/XVS650SC supplement, carburetor heater 1 is rated 12 V, 20 W and has a specified resistance of 3.4–7.6 ohms at 20°C (68°F).

Carburetor heater 2 is rated 12 V, 15 W, with a resistance specification of 4.8–14.5 ohms at the same temperature.
