Yamaha AR230 / SR230 / SX230 High Output – 2007 Service Manual (P/N LIT-18616-03-01)

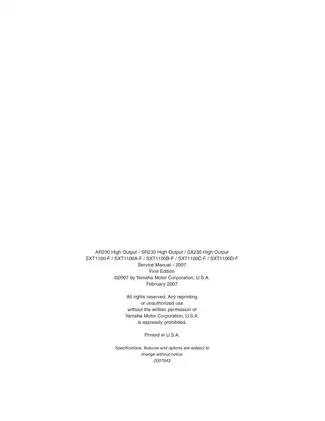

Yamaha’s service manual for the 2007 AR230 High Output, SR230 High Output, and SX230 High Output covers the F2A series and its SXT1100-F through SXT1100D-F variants. This is the February 2007 First Edition, P/N LIT-18616-03-01, organized into nine technical chapters.

PDF Search, Diagram Detail, and Page Count

Search and schematic detail: Text search is available for portions of the document, but many procedure pages and diagram labels are not searchable. There are no embedded PDF bookmarks. Small wire-color codes, connector pin numbers, and meter-panel labels require zooming in the detailed wiring diagrams.

The download contains one printable, 367-page English PDF, including two cover pages and eight blank divider pages.

Engine, Jet Pump, and YDIS Service Coverage

These selected coverage highlights summarize the main workshop areas. Other documented topics include drain-plug inspection and seat-fitting removal.

• Periodic maintenance: Maintenance interval charts, engine oil and filter service, valve-clearance adjustment using valve-pad selection tables, and control-cable inspections.

• Fuel injection: Fuel pump module removal, injector testing, throttle body disassembly and synchronization, throttle position sensor adjustment, and fuel-pressure measurement.

• Internal engine repair: Engine removal, cylinder-head service, valve-guide replacement, valve-seat refacing, crankcase separation, and piston, connecting-rod, and crankshaft inspection.

• Jet pump and driveline: Pump removal, impeller and drive-shaft disassembly, reverse-gate service, reduction drive gear work, and intermediate shaft and housing service.

• Electrical testing: Ignition and charging-system checks, starter-motor disassembly, relay and sensor tests, wiring diagrams, and model-specific meter-panel back views.

• Hull and controls: Steering helm removal, throttle and reverse cable installation, ventilation-system disassembly, cooling-system and water-lock removal, and deck-fitting service.

• YDIS diagnostics: Diagnosis records, Engine Monitor, stationary ignition and injector tests, active cylinder-drop testing, data logging, and the YDIS error code chart.

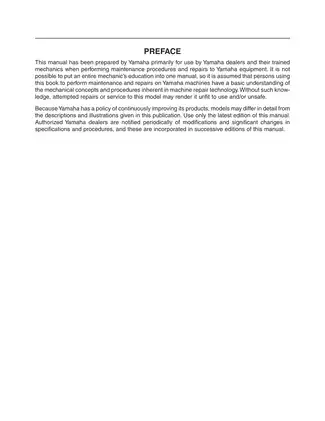

Yamaha prepared this manual primarily for dealers and trained mechanics, assuming a working understanding of mechanical concepts and repair procedures.

Engine Repair and Workshop References

Step-by-step procedures extend from engine removal and coupling alignment to internal inspection and reassembly. The cylinder-head sections cover warpage checks, valve and spring inspection, guide replacement, and seat refacing. Lower-engine coverage includes piston-ring inspection, bearing-clearance measurement with Plastigauge, and replacement-bearing selection by identification and color codes.

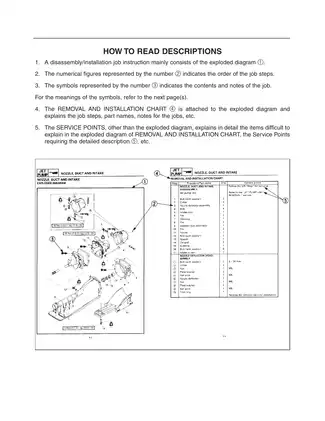

Assembly references: Exploded views are paired with removal and installation charts and detailed Service Points. This lets a mechanic relate component positions, fastener notes, and inspection criteria to the assembly being repaired. Cylinder-head nut tightening is documented in torque-and-angle stages rather than as a single torque figure.

The special-tool references identify measuring equipment, pullers, bearing attachments, and service tools, including oil filter wrench YU-38411/90890-01426.

Fuel Injection and Electronic Fault Diagnosis

Throttle body synchronization includes cylinder-specific vacuum comparisons and throttle position sensor checks. Injector and bypass valve motor inspections connect mechanical fuel-system work with Yamaha Diagnostic System testing.

Fault tracing: The Trouble Analysis Chart links symptoms such as hard starting, poor acceleration, overheating, and low oil pressure to relevant components and reference chapters. Together with the electrical tests, it supports a structured investigation across fuel, mechanical, and electrical causes.

The YDIS chapter explains computer connection, diagnostic records, sensor monitoring, test functions, and saved data. It documents period Windows software and hardware requirements; carrying out these functions requires separate YDIS software, communication equipment, and a compatible computer.

Fuel-system service involves pressurized gasoline. The manual’s fuel-pressure release, electrical isolation, and engine-compartment ventilation precautions apply.

Jet Pump, Steering, and Hull Details

The pump documentation distinguishes port and starboard impellers by their identification marks and pitch specifications. Intermediate housing service includes shim-location notes and bearing and oil-seal installation references.

Illustrated references: Cable and Hose Routing views, the Ignition System Wiring Diagram, Fuel Control System Wiring Diagram, and separate meter-panel back views support component identification and circuit tracing.

Hull coverage includes cooling-water and exhaust connections, steering and remote controls, hatch fittings, and separate gunwale arrangements for SR and AR/SX models. Gelcoat cleaning and polishing are covered; FRP and gelcoat repairs are referred to a separate Basic Hull Repair Video and Workbook.

Oil-Level and Clean-Out Cap Service Pitfalls

The dry-sump oil-level section explains how oil temperature affects the dipstick reading and warns that incorrect oil quantity can damage the engine. The jet pump section warns that an incorrectly seated or unlocked clean-out cap can be forced out by water pressure, causing performance loss and possible damage.

Selected Valve-Clearance and Thermostat Data

For valve-clearance inspection on a cold engine at room temperature, the manual lists 0.11–0.20 mm for intake valves and 0.25–0.34 mm for exhaust valves. These specifications accompany the valve-pad selection and adjustment procedures.

Thermostat inspection includes a heated-water test. Its opening diagram shows the valve fully closed at 50 °C and fully open at 60 °C, distinguishing thermostat operation from the separate engine and exhaust thermoswitch tests.
