1983–1986 Suzuki GSX750E/ES/EF/S Service Manual (P/N 99500-37025-01E)

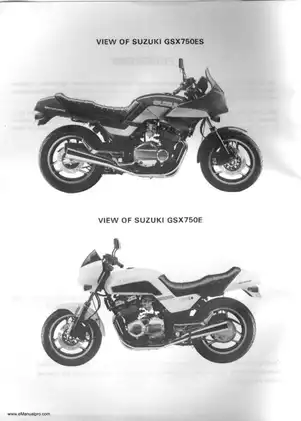

Suzuki's service manual for the 1983–1986 GSX750E/ES family, P/N 99500-37025-01E, combines the base repair procedures with model-update sections for the E, ES, EF, and S variants.

• Engine repair: Engine removal, crankcase separation, cylinder-head servicing, piston inspection, cam timing, and crankshaft bearing selection for the TSCC engine.

• Transmission and clutch: Internal gear and shaft inspection, shift-fork clearance checks, wet-clutch servicing, and GSX750SE hydraulic-clutch cylinder repair.

• Fuel and lubrication: Mikuni BS32SS carburetor disassembly, fuel-level inspection, synchronization, oil-pressure testing, and oil-cooler circuit documentation.

• Chassis and brakes: Anti-dive fork servicing, full-floating suspension work, steering bearings, brake-caliper and master-cylinder repair, and hydraulic-circuit bleeding.

• Electrical diagnosis: Charging-system checks, transistorized ignition tests, starter-motor inspection, instrument testing, and market-specific wiring diagrams.

• Model updates: Variant-specific service data, EF fairing removal, and GSX750SE retractable-headlight circuit, control-unit, and motor tests.

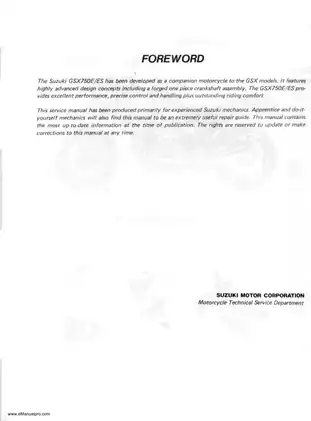

Written primarily for experienced Suzuki mechanics, this manual also addresses apprentice and do-it-yourself mechanics; internal engine work calls for precision measuring equipment and the specified service tools.

Model Updates and Coverage Gaps

The update chapters distinguish the GSX750SE hydraulic clutch and Posi-damp anti-dive fork from the base configuration. Its retractable-headlight section includes control-unit resistance tables and connector identification views, helping separate control faults from motor faults.

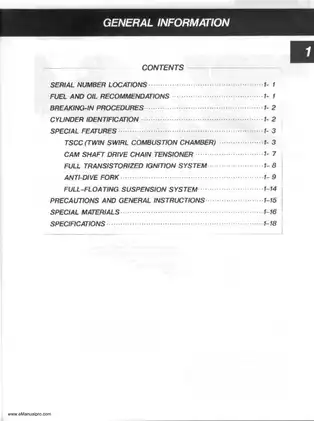

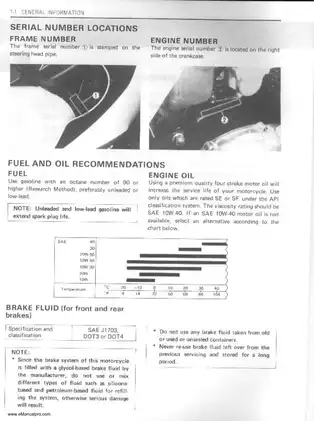

Missing pages: This PDF jumps from General Information page 1-10 to Maintenance page 2-13, omitting the early maintenance procedures, including the referenced valve-adjustment procedure. The GSX750SE section ends at 9-13 before its later chassis and servicing-information sections; the following GSX750EF/ESF/EFF update starts at 10-3.

TSCC Engine, Bearings, and Transmission

The engine documentation covers valve-seat machining, piston-to-cylinder inspection, camshaft wear, and crankshaft installation. TSCC profile views and camshaft drive-chain tensioner drawings support the explanations of combustion-chamber design and the automatic tensioning mechanism.

Bearing-selection matrices match stamped crankcase and shaft codes to color-coded main-bearing shells, helping identify replacement bearings after clearance measurement. Connecting-rod bearing selection is treated separately, alongside crankshaft thrust-bearing selection and runout checks.

Valve-seat servicing identifies the 15- and 45-degree cutters used in the repair process. The manual also warns that unevenly drawing down the camshaft holders can damage the cylinder head or holder thrust surfaces.

Transmission coverage includes gear installation, circlip orientation, and shift-fork groove clearance data. The clutch sections distinguish the base release mechanism from the GSX750SE hydraulic cylinder and its bleeding requirements.

Carburetors, Oil Circuit, and Chassis Service

The carburetor section explains diaphragm operation and the slow, main, starter, and float systems before the inspection and rebuilding procedures. Synchronization coverage includes calibration of carburetor balancer 09913-13121, rather than adjustment instructions alone.

The engine lubrication flow diagram traces oil delivery through the cooler, filter, galleries, bearings, and cylinder head. Oil-pressure diagnosis accompanies the pump documentation, which warns that attempting pump disassembly can damage the thread-locked case screw; replacement is supplied as a complete pump unit.

Chassis coverage includes fork seals and bushings, suspension linkage bearings, and preload and damping adjusters. The brake section addresses persistent air trapped in the anti-dive modulator, a possible cause of a spongy lever after conventional bleeding. Brake and suspension work requires secure machine support and appropriate protective equipment.

Ignition, Charging, and Wiring References

Signal-generator waveforms and electronic advance characteristics accompany the ignition-system block diagram. Charging output, generator continuity, regulator/rectifier, starter relay, and gauge-sender tests provide component-specific diagnostic references.

Separate wiring diagrams identify their applicable market codes, while wire, cable, hose, and pipe routing drawings document installation details. The appendix adds an ignition-coil spark-performance inspection method.

A Sample of Head, Valve, and Bearing Specifications

The engine torque tables specify 35–40 N·m for the cylinder-head nuts, distinct from the cylinder-head bolt entry. Cold intake and exhaust valve clearance is 0.09–0.13 mm in both the base GSX750E/ES and GSX750ESG service-data tables.

Standard crankshaft journal oil clearance is 0.020–0.044 mm. Connecting-rod big-end oil clearance is listed separately at 0.032–0.056 mm, with a 0.080 mm service limit.

PDF Search, Diagram Detail, and Included Pages

Search and diagram access: Manual text is not searchable, and there are no embedded PDF bookmarks. Small wiring-diagram labels require enlargement; some remain blurred in densely labeled areas.

One printable English PDF contains 309 pages, including the model-update sections, the two-page ignition-coil appendix, one publication-imprint page, and two repeated electrical-section pages.
