2009 KTM EXC Series 400 XC-W, 450 XC-W, 530 XC-W, 530 EXC Repair Manual

Repair guide for all 2009 KTM 400/450/530 EXC/XC-W models, covering engine, chassis, and electrical systems. Ref: 3206064en

4.5starstarstarstarstar_half(4)
visibility Preview Available
KTM 2009 KTM EXC Series 400 XC-W, 450 XC-W, 530 XC-W, 530 EXC Repair Manual manual page preview - page 1 of 248

Sample pages from the 2009 KTM EXC Series 400 XC-W, 450 XC-W, 530 XC-W, 530 EXC Repair Manual manual

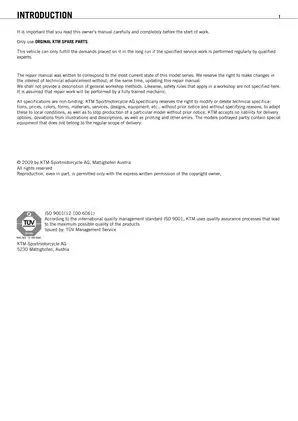

KTM 2009 KTM EXC Series 400 XC-W, 450 XC-W, 530 XC-W, 530 EXC Repair Manual manual preview page 1 - thumbnail

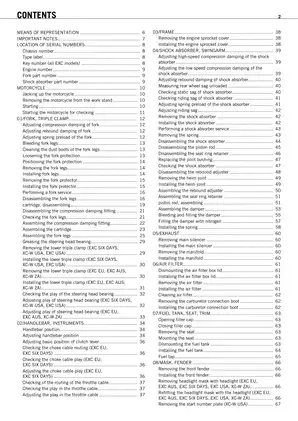

KTM 2009 KTM EXC Series 400 XC-W, 450 XC-W, 530 XC-W, 530 EXC Repair Manual manual preview page 4 - thumbnail

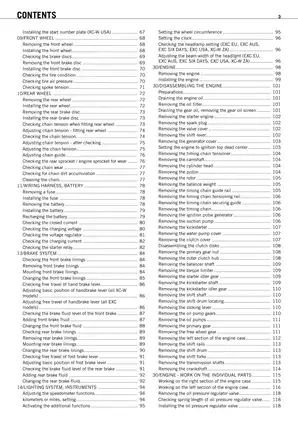

KTM 2009 KTM EXC Series 400 XC-W, 450 XC-W, 530 XC-W, 530 EXC Repair Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$18.59 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

KTM Models Covered & Key Technical Specifications

Models: 400 EXC, 400 XC-W, 450 EXC, 450 EXC SIX DAYS, 450 XC-W, 530 EXC, 530 EXC SIX DAYS, 530 XC-W
Sub-models / Variants: EU, AUS, USA, ZA, Six Days
Build Years: 2009
Technical Data:

  • Engine oil capacity: 0.60 L
  • Exhaust valve clearance: 0.12–0.17 mm
  • Chain tension range: 8–10 mm
  • Front brake caliper mounting torque: 17 Nm
  • Engine sprocket screw torque: 10 Nm
  • Compression damping fitting torque: 35 Nm
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30471 / Amanda Bell
File Size:
12.73 MB
File Type:
PDF
Language:
English
Pages:
248
Printable:
Yes
Category:
Motorbike
Last updated / verified
Feb 1, 2026

KTM Manual Features & Content Preview

2009 KTM EXC and XC-W Technical Reference

  • Covers 2009 KTM 400, 450, and 530 EXC and XC-W motorcycle variants, including EU, AUS, USA, ZA, and Six Days editions
  • Official OEM publication P/N 3206064en, 2009 edition
  • Contains 248 pages of technical procedures including torque specifications, assembly data, and maintenance schedules
  • Accessible from your device as soon as the order is placed
  • OCR text layer lets you jump to a torque spec by keyword
  • This 2009 edition is the primary factory reference for the 400, 450, and 530 engine series maintenance and assembly

Manual Content Summary

The 2009 KTM EXC and XC-W service manual provides detailed technical information for the 400, 450, and 530 engine platforms. Initial chapters detail serial number locations and basic motorcycle handling before transitioning into what factory workshop documentation is structured to address: front and rear suspension adjustment and overhaul, brake system maintenance, cooling system service, and fuel delivery system management.

Engine-specific sections provide deep technical insight into the disassembly and assembly of the powerplant. These chapters document crankshaft, transmission, piston, cylinder, and valve train maintenance intervals and tolerances. Electrical system documentation includes battery maintenance, wiring diagrams for various market configurations, and charging system reference values.

Engine and Chassis Specifications

Technical data previews provide essential reference values for critical motorcycle components. Cylinder head bolt torque values are documented in a multi-stage sequence, while front brake caliper mounting is specified at 17 Nm. Chain tension is maintained at an 8–10 mm range, and engine oil capacity is documented at 0.60 liters. Intake and exhaust valve clearances are specified to support proper engine timing. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. This 248-page KTM workshop manual provides the full technical specifications and assembly procedures required to service the 2009 400, 450, and 530 EXC and XC-W model range.

Manual FAQ, Purchase & Download Details

Does this manual include wiring diagrams for the 2009 EXC and XC-W models? keyboard_arrow_down

Document contains detailed wiring diagrams specific to the EXC EU, EXC AUS, EXC-R Six Days, EXC USA, and all XC-W model variants.

What is the official article number or document identifier for this 2009 KTM service manual? keyboard_arrow_down

Manual is identified as article number 3206064en. It is a 248-page publication covering the 2009 400, 450, and 530 EXC and XC-W model series.

Which engine sections contain technical specification tables and tightening torque references? keyboard_arrow_down

Technical data chapters include comprehensive specification tables listing tightening torques, engine tolerances, wear limits, and capacity values for the engine, gear oil, and cooling systems.

Can I find exploded views and technical reference values for the engine top-end, clutch, and transmission systems in this manual? keyboard_arrow_down

Manual provides detailed chapters for the engine, clutch, and transmission systems, including exploded view references for components like the crankshaft, cylinder, piston, and clutch disks. These sections also list technical reference categories such as mounting clearances and gear oil capacities. This content is intended to support a fully trained mechanic during service procedures.
