2008 KTM 450/530 EXC-R Service Manual

2008 KTM 450 EXC-R / 530 EXC-R service documentation with detailed diagrams for all major components and systems. Publication 3206054en.

4.5starstarstarstarstar_half(4)
visibility Preview Available
KTM 2008 KTM 450/530 EXC-R Service Manual manual page preview - page 1 of 191

Sample pages from the 2008 KTM 450/530 EXC-R Service Manual manual

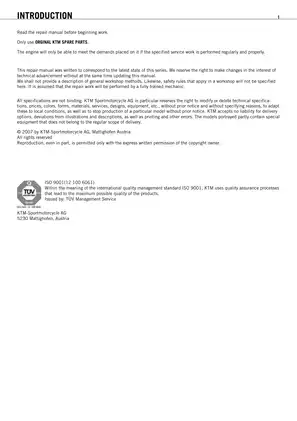

KTM 2008 KTM 450/530 EXC-R Service Manual manual preview page 1 - thumbnail

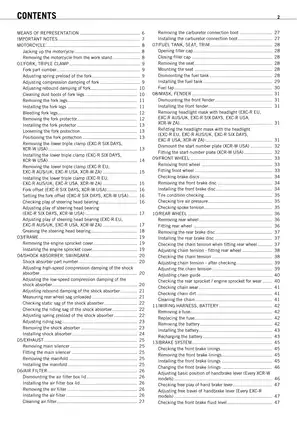

KTM 2008 KTM 450/530 EXC-R Service Manual manual preview page 4 - thumbnail

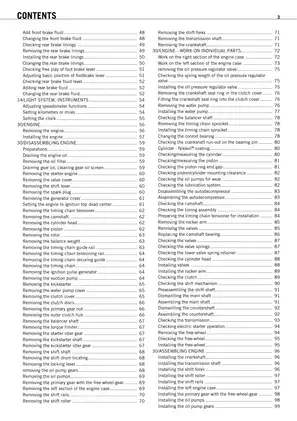

KTM 2008 KTM 450/530 EXC-R Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.98 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

KTM Models Covered & Key Technical Specifications

Models: 450 EXC-R EU, 450 EXC-R AUS/UK, 450 EXC-R SIX DAYS, 450 EXC-R USA, 450 XCR-W USA, 450 XCR-W ZA, 530 EXC-R EU, 530 EXC-R AUS/UK, 530 EXC-R SIX DAYS, 530 EXC-R USA, 530 XCR-W USA, 530 XCR-W ZA
Sub-models / Variants: EU, AUS, UK, SIX DAYS, USA, ZA, XCR-W, EXC-R
Build Years: 2008
Technical Data:

  • Engine type: Single-cylinder, 4-stroke, water-cooled
  • Engine displacement: 449.3 cc (450 models), 510.4 cc (530 models)
  • Compression ratio: 11.9:1
  • Idle speed: 1550–1650 rpm
  • Valve clearance (infeed): 0.12–0.17 mm
  • Valve clearance (outfeed): 0.1–0.15 mm
  • Suspension travel (front): 300 mm
  • Suspension travel (rear): 335 mm
  • Coolant temperature range: -45 °C to -25 °C (-49 °F to -13 °F)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30844 / John Phillips
File Size:
10.79 MB
File Type:
PDF
Language:
English
Pages:
191
Printable:
Yes
Category:
Bike
Last updated / verified
Jan 14, 2025

KTM Manual Features & Content Preview

2008 KTM 450/530 EXC-R Workshop Publication

  • Covers the 2008 KTM 450 and 530 EXC-R and XCR-W series, documenting mechanical systems for EU, AUS/UK, SIX DAYS, USA, and ZA regional configurations
  • Official OEM publication ART. NO. 3206054en, Copyright 2007 by KTM-Sportmotorcycle AG
  • Includes 158 pages of technical detail featuring torque specification tables, wiring diagrams for 6 regional configurations, and exploded-view component assembly references
  • Stored against your account so you can retrieve it after a hard-drive loss
  • Full-text search finds any part number in seconds
  • Suitable for printing individual sections for shop-floor use
  • This 94-page edition acts as the primary reference for the 2008 engine-disassembly, chassis-maintenance, and wiring-harness-management build cycle

Engine and Chassis Documentation

This 2008 KTM 450/530 EXC-R service manual covers engine maintenance, including disassembly and assembly of the 450 and 530 4-stroke powerplants. Documentation includes crank assembly, timing chain tensioning, cylinder head work, clutch, and transmission maintenance. The publication details cooling system servicing, including coolant replacement and water pump rebuilding, alongside lubrication system checks for oil screens and pressure regulator valves. The chassis section addresses front and rear wheel service, brake system maintenance, and steering head bearing adjustments specific to varying regional triple clamp offsets.

Technical Data Preview

The 2008 KTM 450 EXC-R engine oil capacity is specified within the technical data section. Intake valve clearance for the 450/530 range is listed at 0.12–0.17 mm in the specification table. The rear shock absorber static sag is documented at 35 mm. Torque values are provided for the M16x1.5 swingarm pivot nut at 100 Nm and the M24x1.5 front wheel spindle at 40 Nm. Additional data includes wear limits for brake discs and spoke tension values. An official 191-page KTM OEM service manual covering the 2008 450/530 EXC-R and XCR-W, documenting engine, chassis, and electrical system specifications for global market variants.

Manual FAQ, Purchase & Download Details

Can I use this manual to review the chapter coverage for engine top-end, clutch, transmission, and final-drive maintenance? keyboard_arrow_down

Table of contents explicitly lists dedicated chapters for engine, clutch, and transmission systems to facilitate content navigation. It includes sections on assembling, disassembling, and inspecting components within these drivetrain areas.

Which chapters contain the technical specification tables, tightening torque lists, and wear tolerance charts for the engine and chassis? keyboard_arrow_down

Technical data sections at the end of the manual provide specification tables including engine tightening torques, wear limits, carburetor settings, and chassis dimensions.

What information does the document provide regarding the electrical systems, wiring diagrams, and fuse locations for the motorcycle? keyboard_arrow_down

Manual contains specific wiring diagram sections for all covered model variations, including the EU, AUS/UK, USA, and Six Days editions. It also references electrical maintenance tasks such as fuse replacement and battery service procedures.

Does the document include exploded views or parts illustrations for component breakdowns? keyboard_arrow_down

Manual contains numerous figures and illustrations that provide visual references for component assembly and orientation throughout the engine and chassis sections.
